Electronic Ignition Control Module (Electronic Spark Control - 4.3L)

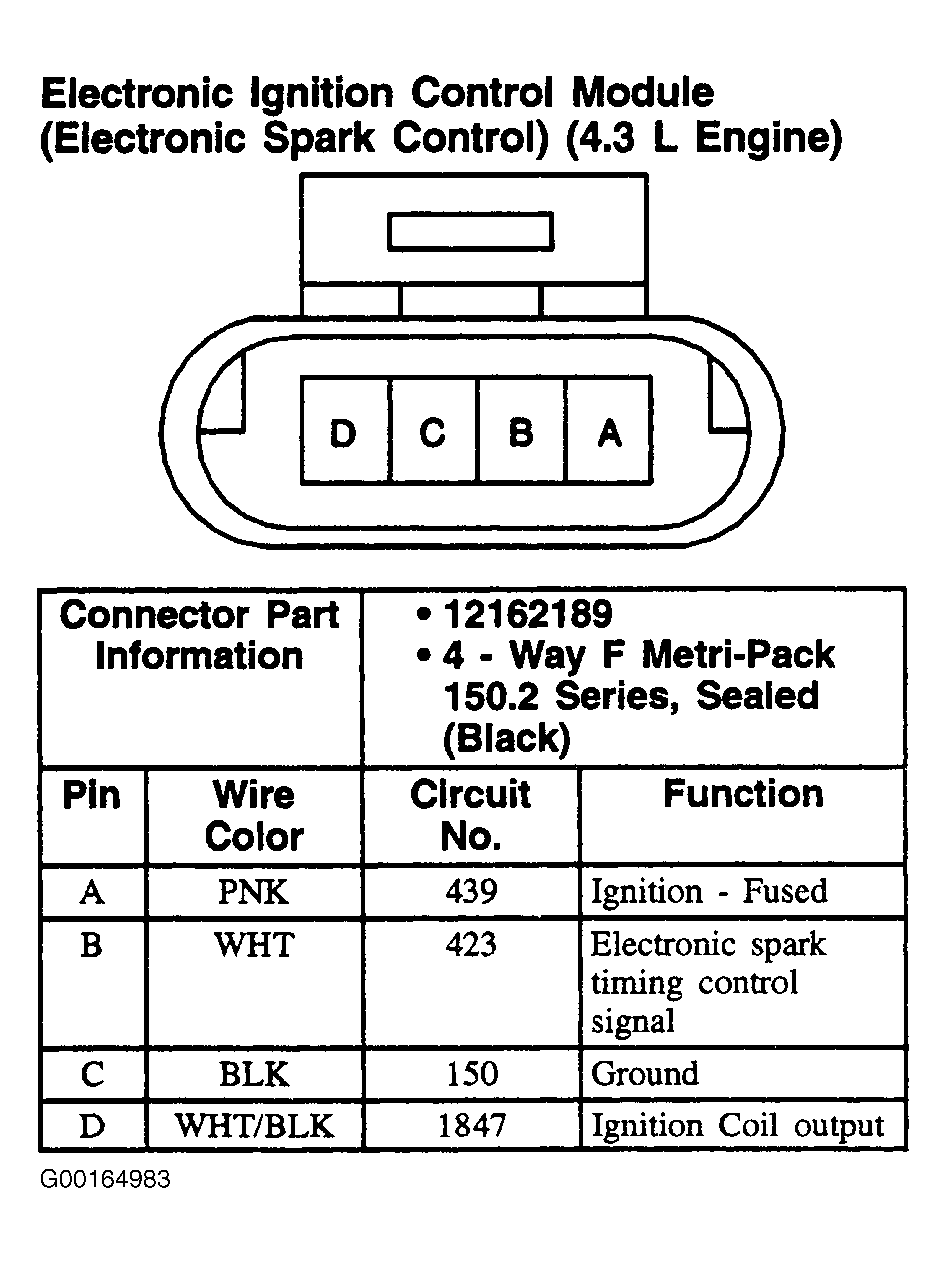

Fig 1: Electronic Ignition Control Module (Electronic Spark Control - 4.3L) - 4-Pin Connector, Black
G00164983Courtesy of GENERAL MOTORS CORP.
