Electronic Ignition Control Module C2 (W/O Coil - 2.2L)

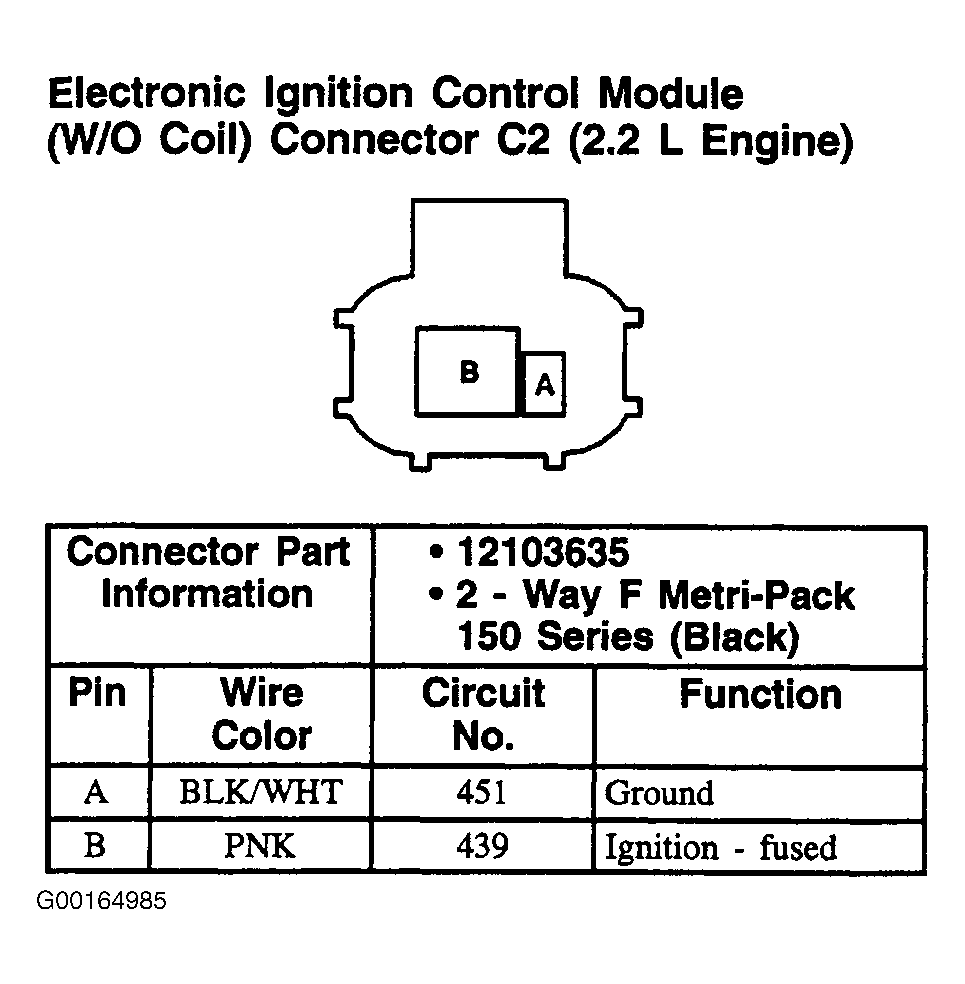

Fig 1: Electronic Ignition Control Module C2 (W/O Coil - 2.2L) - 2-Pin Connector, Black

G00164985

Courtesy of GENERAL MOTORS CORP.
