Engine Coolant Temperature Sensor (4.3L)

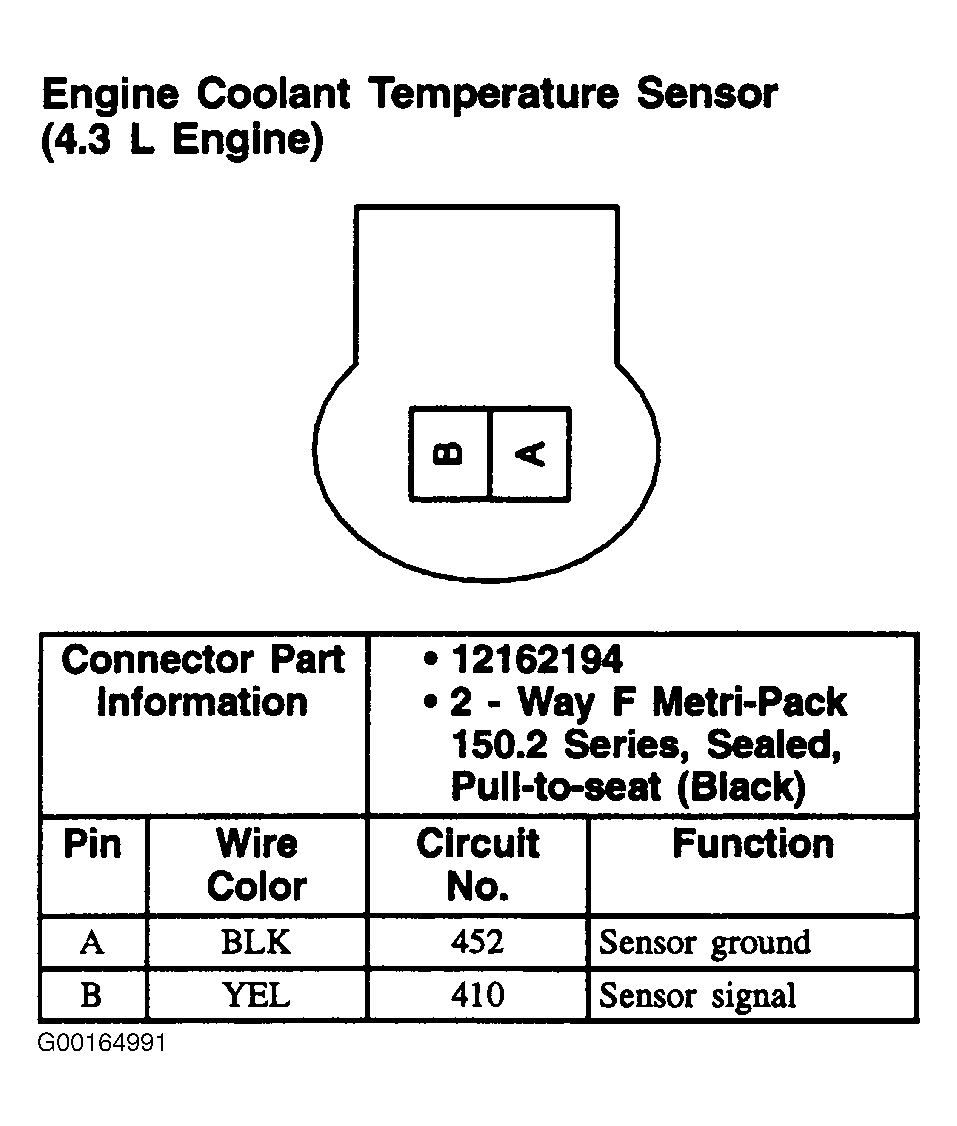

Fig 1: Engine Coolant Temperature Sensor (4.3L) - 2-Pin Connector, Black

G00164991

Courtesy of GENERAL MOTORS CORP.
