Exhaust Gas RECIRCULATION Valve

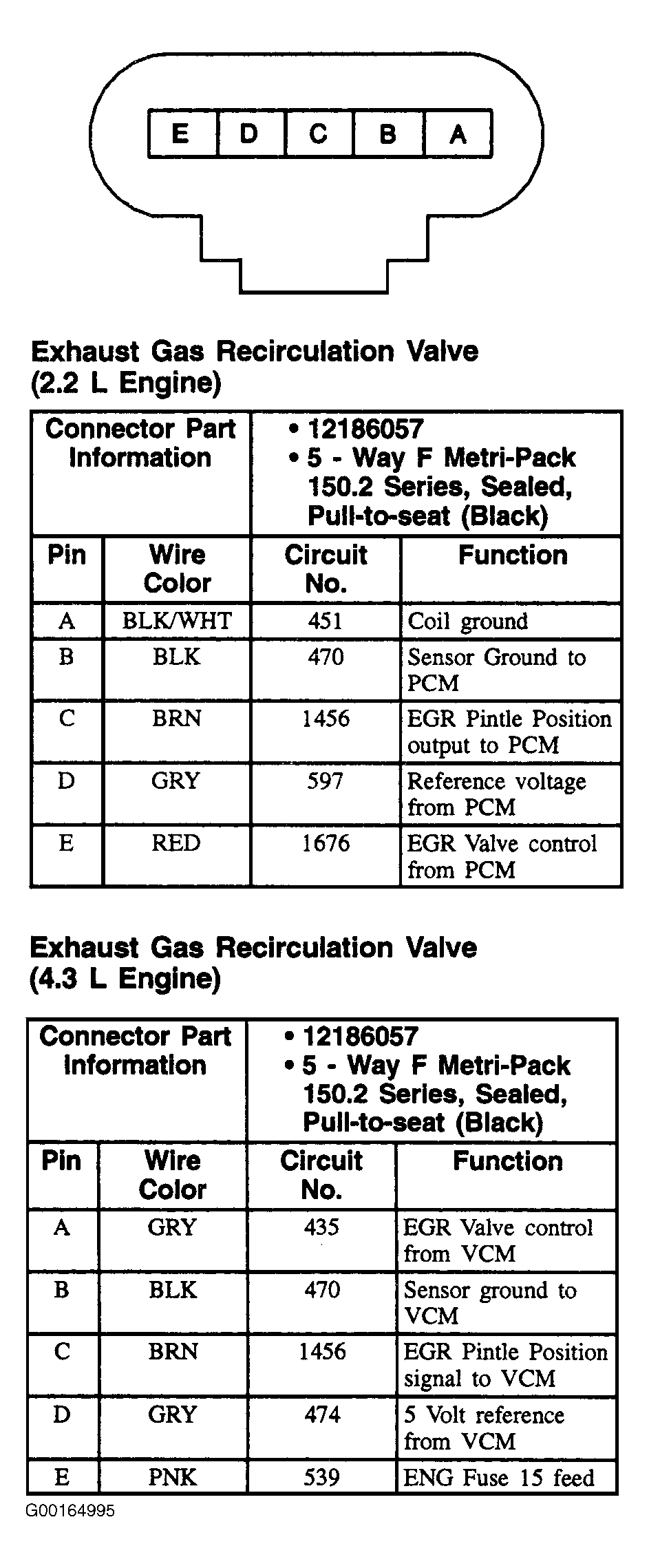

Fig 1: Exhaust Gas Recirculation Valve - 5-Pin Connector, Black
G00164995Courtesy of GENERAL MOTORS CORP.
