Connector Terminal Identification
>>
Fog Lamp Relay
Fog Lamp Relay

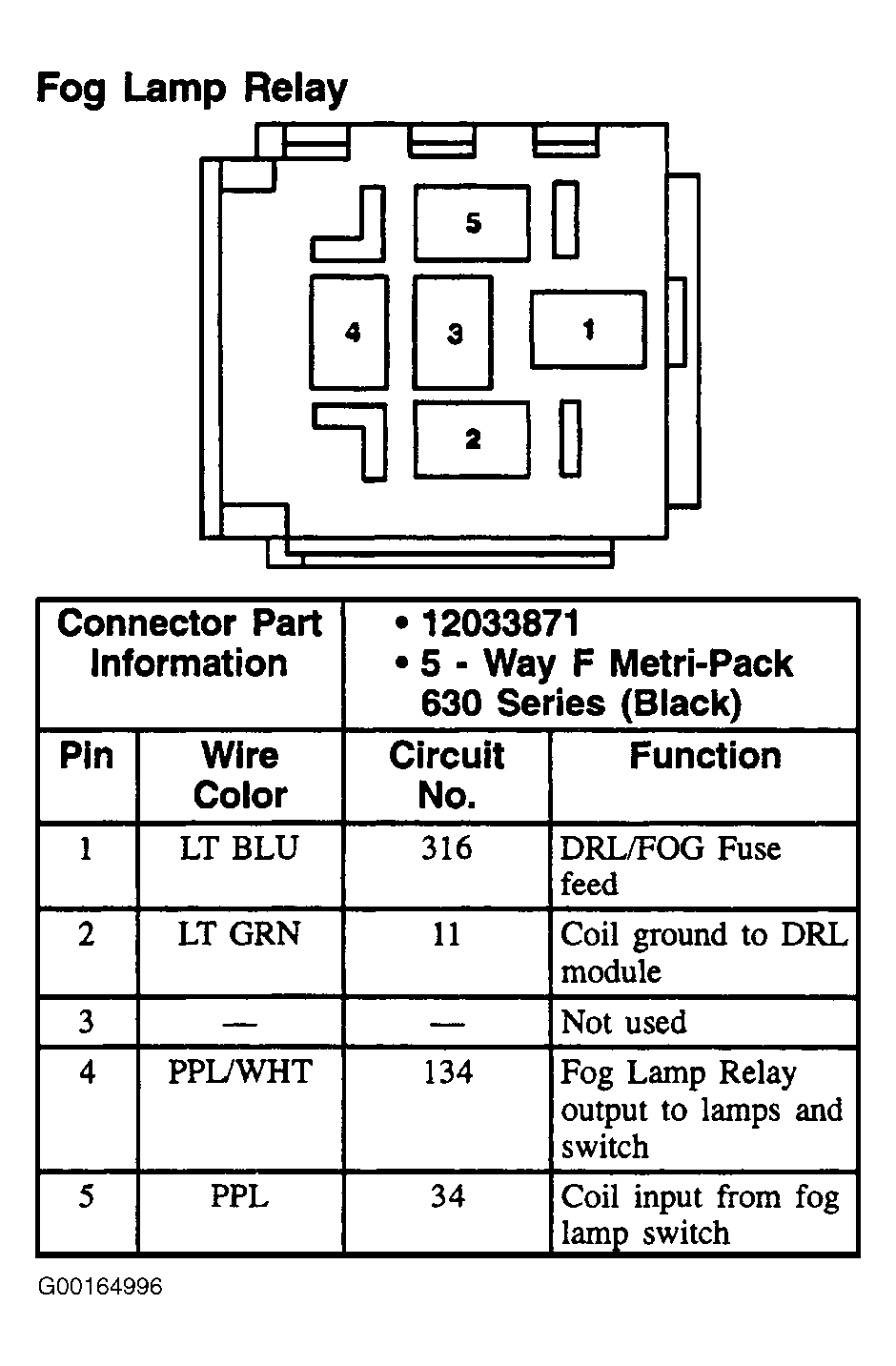

Fig 1: Fog Lamp Relay - 5-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
