Connector Terminal Identification
>>
Front Axle Switch
Front Axle Switch

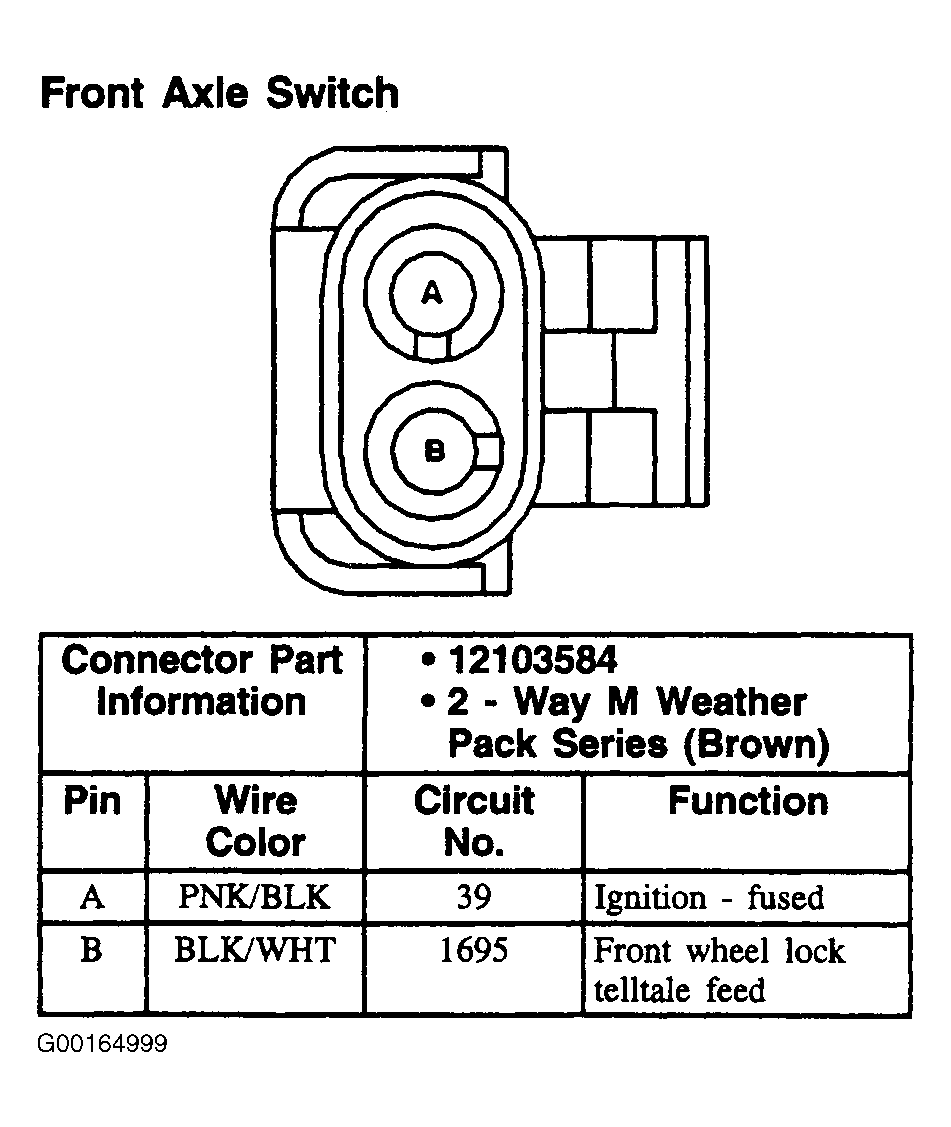

Fig 1: Front Axle Switch - 2-Pin Connector, Brown
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
