Headlamp Switch

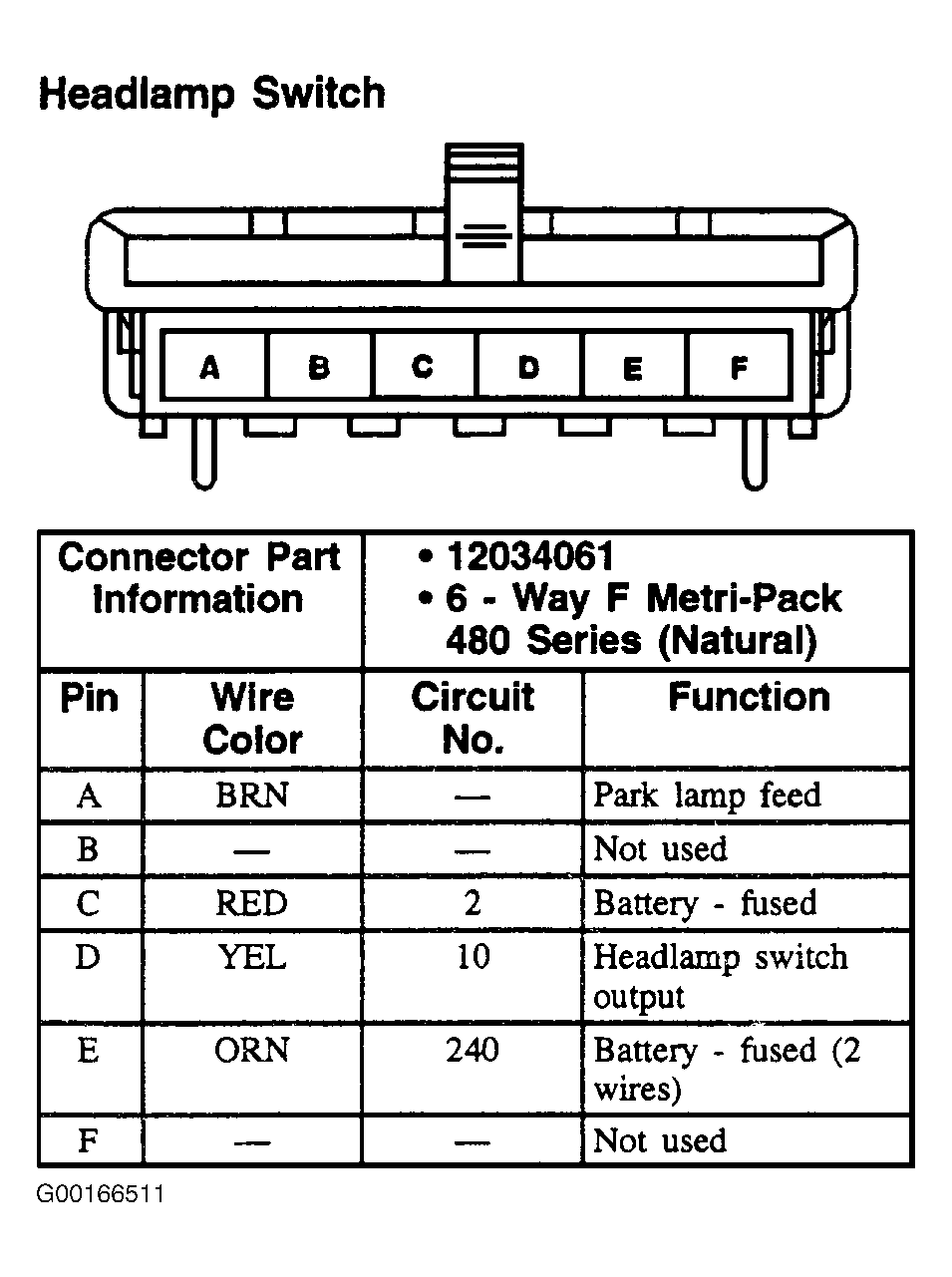

Fig 1: Headlamp Switch - 6-Pin Connector, Natural

G00166511

Courtesy of GENERAL MOTORS CORP.
