GMC
>>
1997
>>
Jimmy 4D Utility, 4WD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification
>>
High Mounted Stop Lamp Relay
High Mounted Stop Lamp Relay

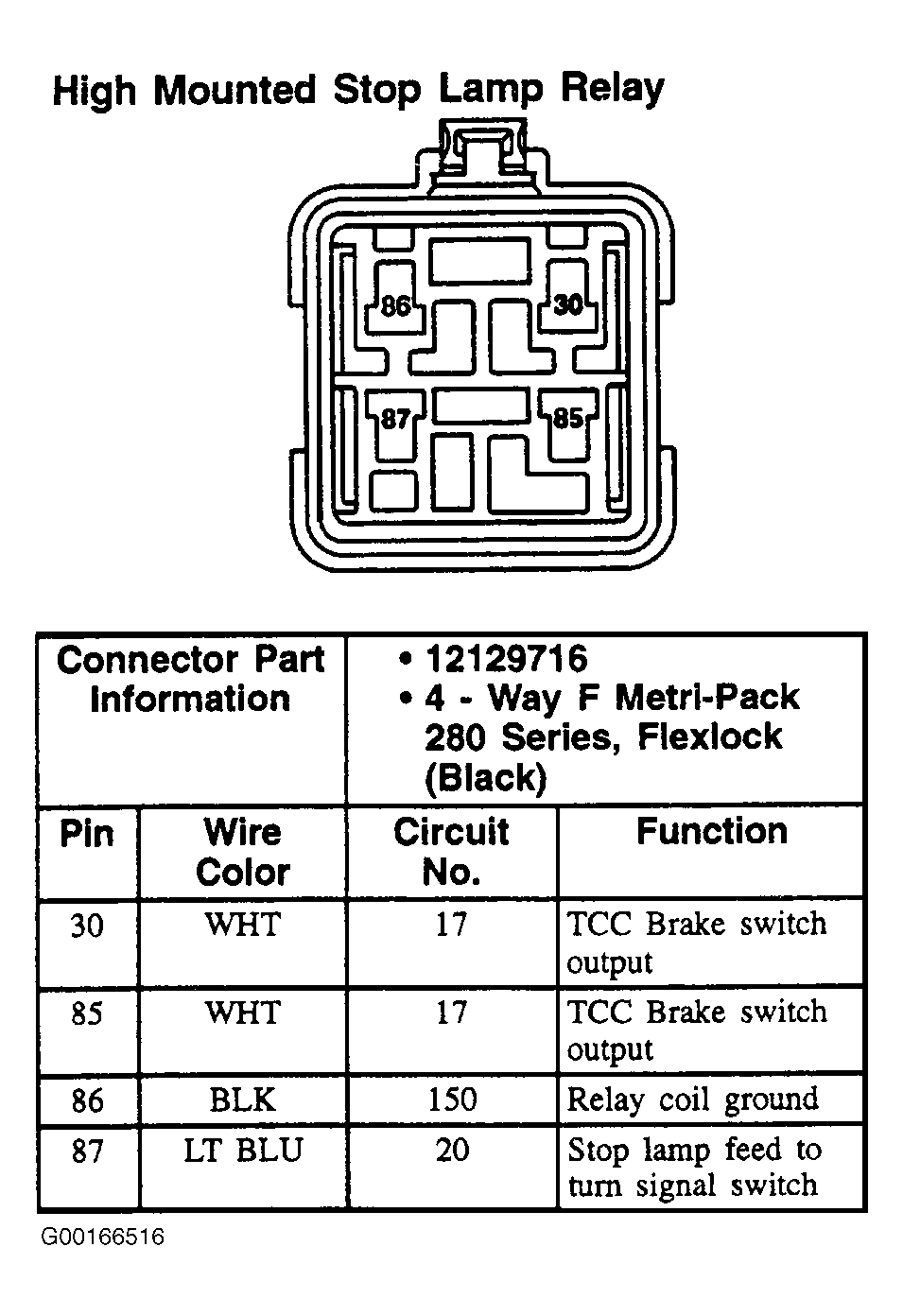

Fig 1: High Mounted Stop Lamp Relay - 4-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
