Connector Terminal Identification: Horn

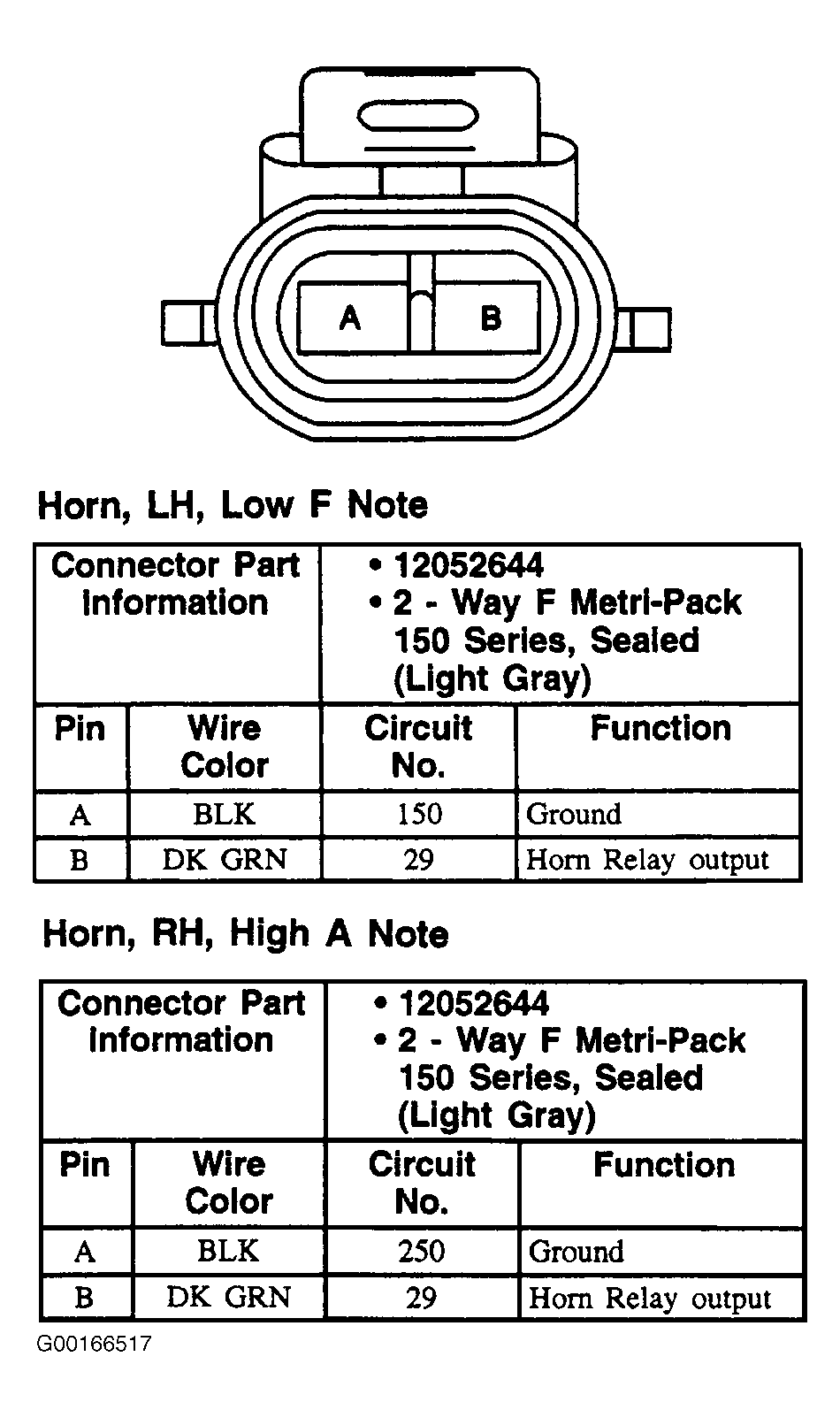

Fig 1: Horn - 2-Pin Connector, Light Gray

G00166517

Courtesy of GENERAL MOTORS CORP.
