Instrument Panel Wiring Diode Module

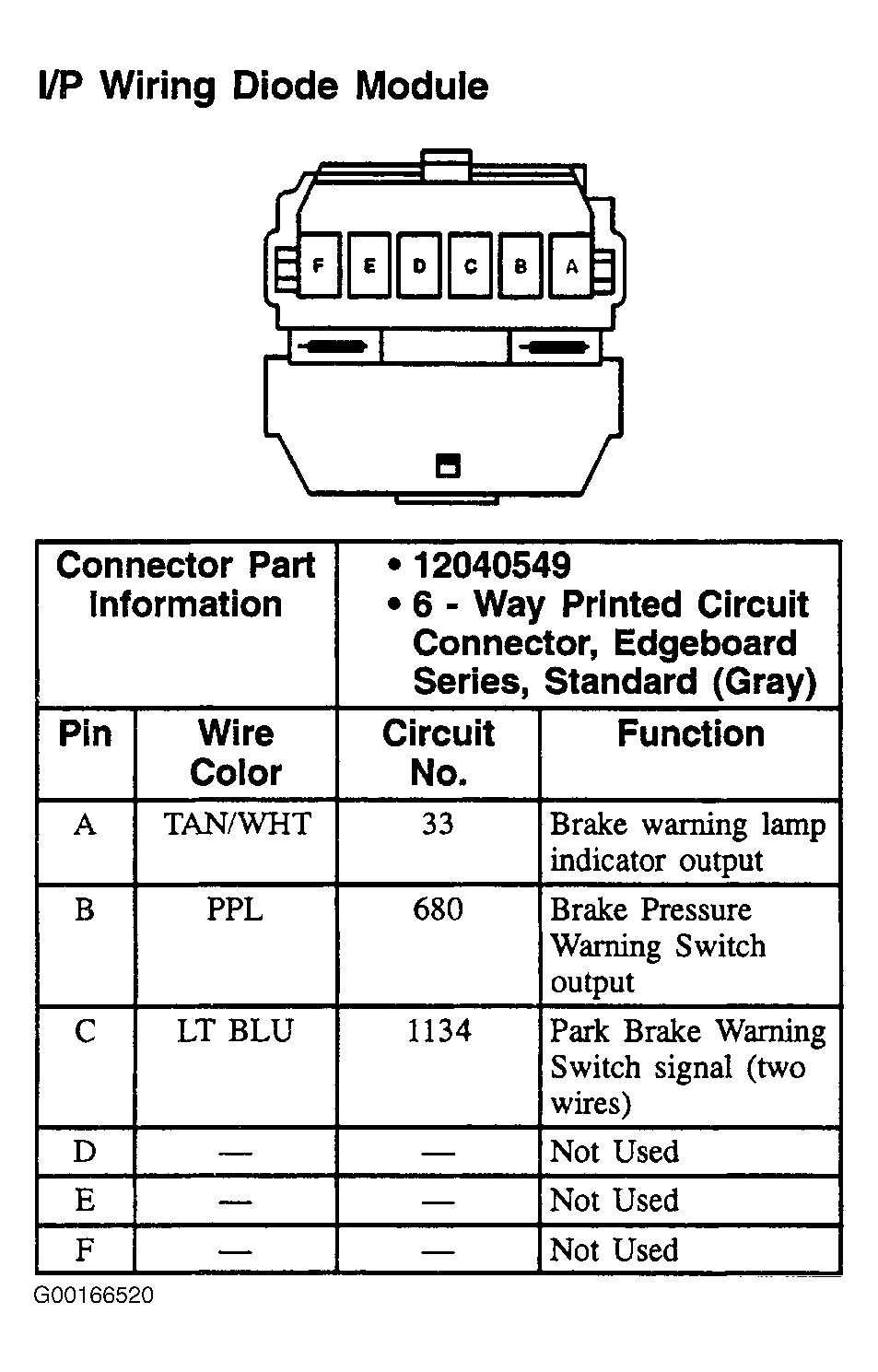

Fig 1: Instrument Panel Wiring Diode Module - 6-Pin Connector, Gray

G00166520

Courtesy of GENERAL MOTORS CORP.
