Home >> GMC >> 1997 >> Jimmy 4D Utility, 4WD >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Liftgate Window Release Actuator

Liftgate Window Release Actuator

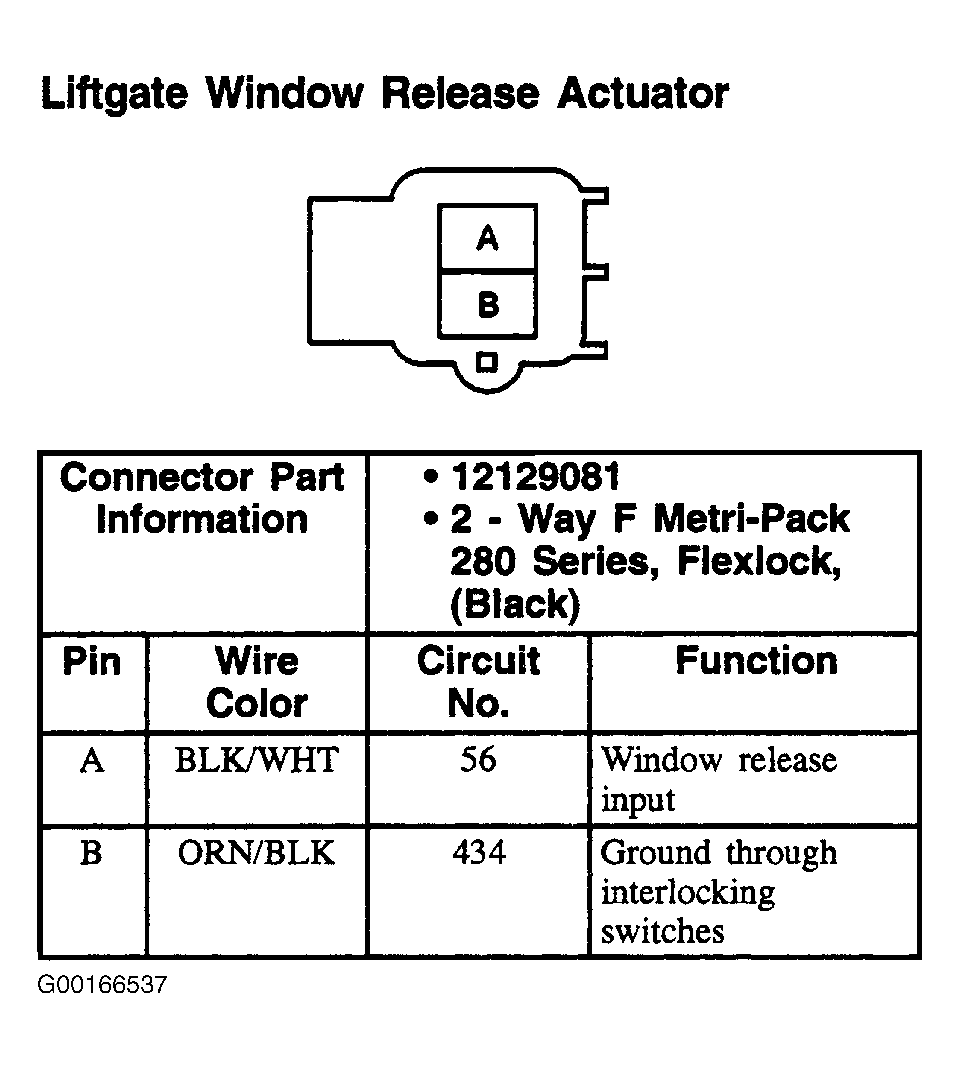

Fig 1: Liftgate Window Release Actuator - 2-Pin Connector, Black

G00166537

Courtesy of GENERAL MOTORS CORP.
