Power Distribution Center
Power Distribution Center

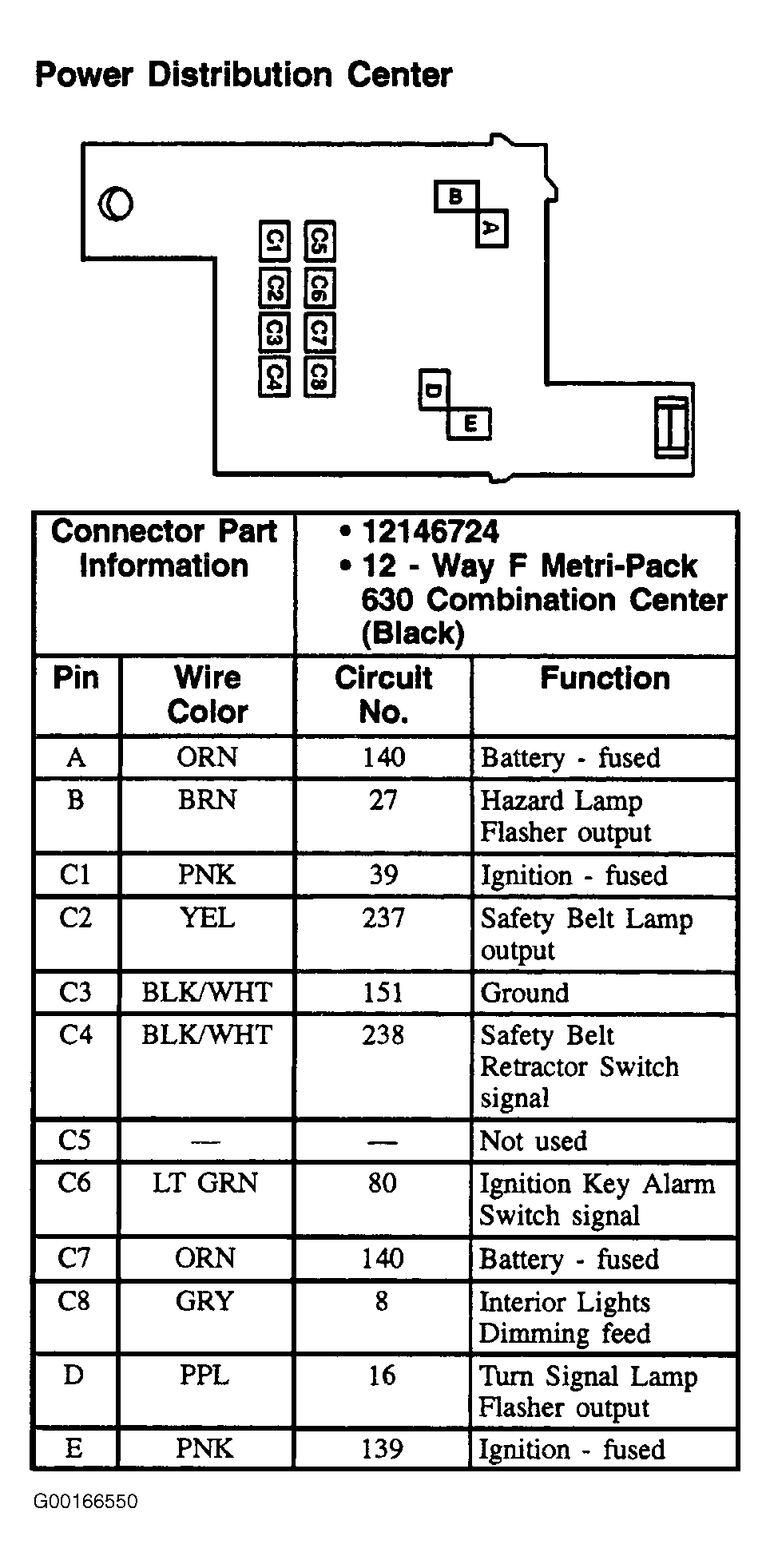

Fig 1: Power Distribution Center - 12-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
