GMC
>>
1997
>>
Jimmy 4D Utility, 4WD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification
>>
Pressure Control Solenoid Valve
Pressure Control Solenoid Valve

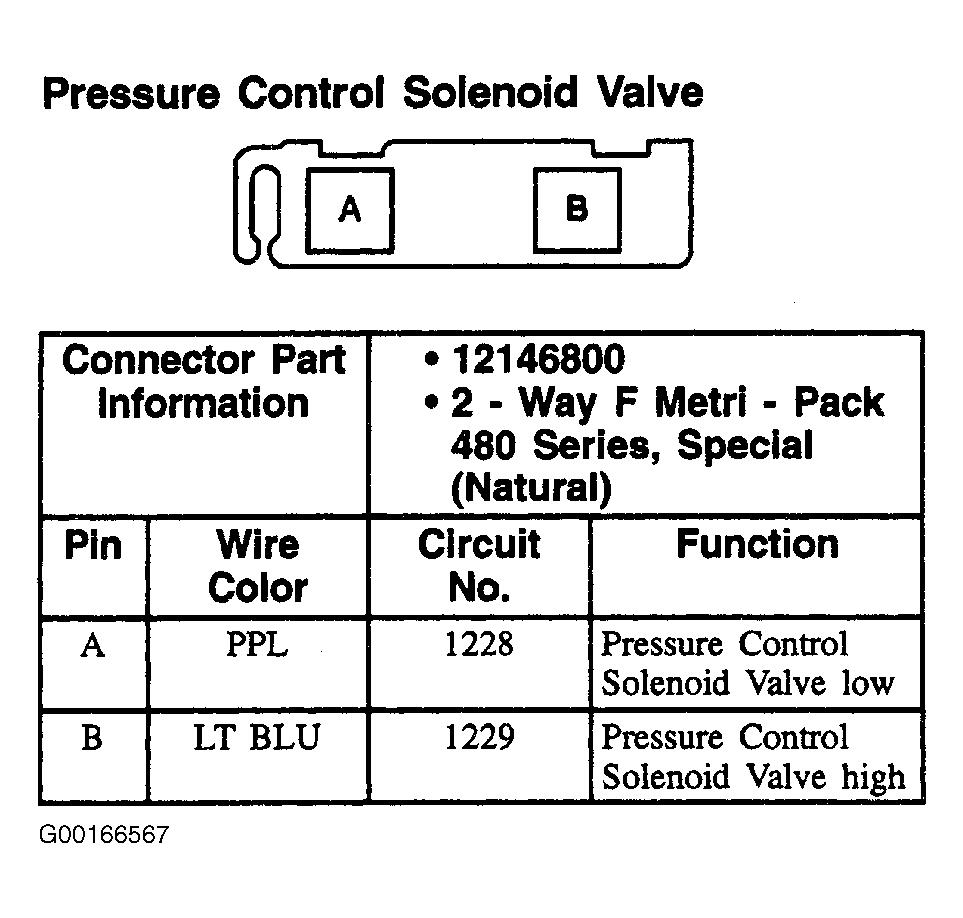

Fig 1: Pressure Control Solenoid Valve - 2-Pin Connector, Natural
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
