Home >> GMC >> 1997 >> Jimmy 4D Utility, 4WD >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Rear Side Window Regulator Motor

Rear Side Window Regulator Motor

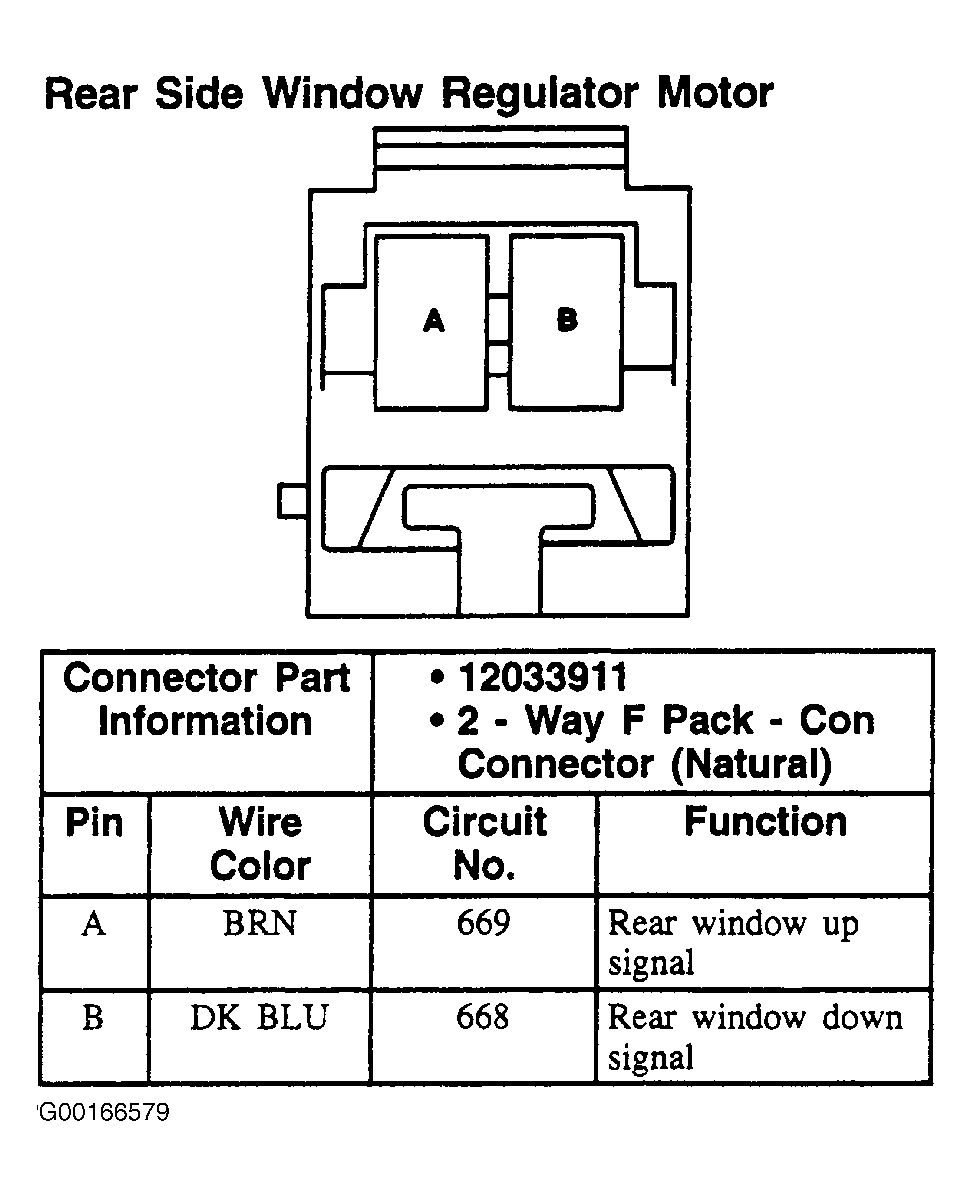

Fig 1: Rear Side Window Regulator Motor - 2-Pin Connector, Natural

G00166579

Courtesy of GENERAL MOTORS CORP.
