Connector Terminal Identification
>>
Rear Window Wiper Motor
Rear Window Wiper Motor

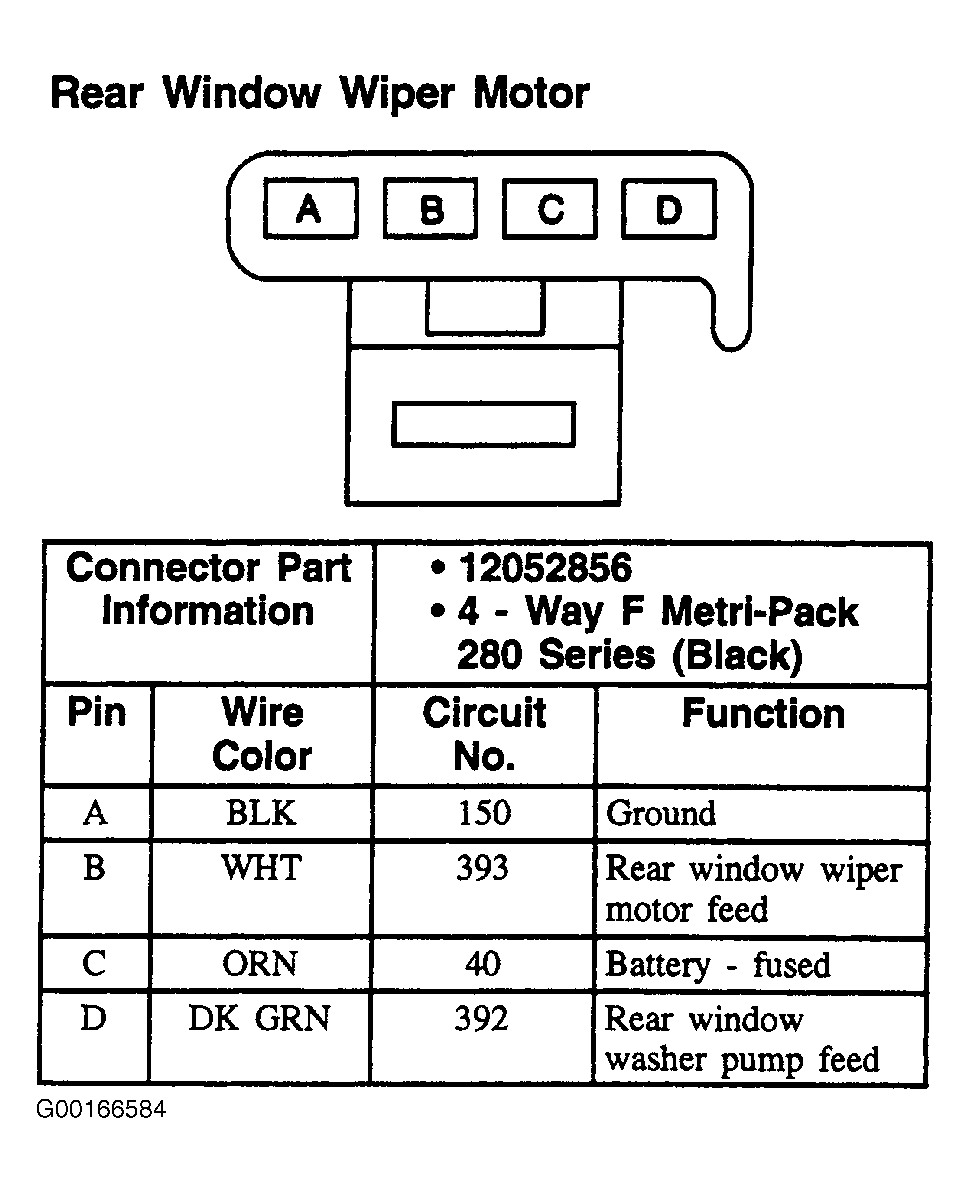

Fig 1: Rear Window Wiper Motor - 4-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
