Connector Terminal Identification
>>
Relay Center
Relay Center

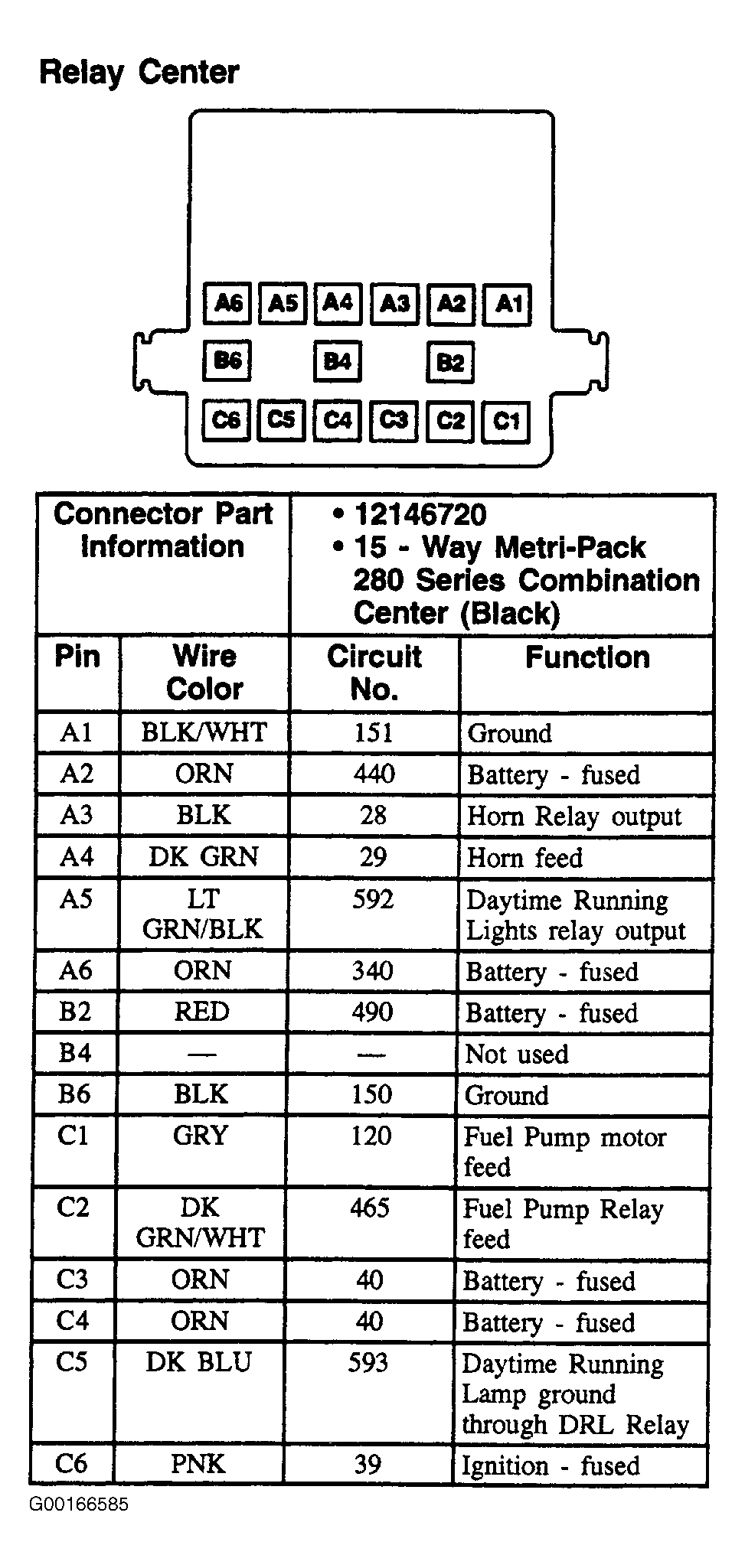

Fig 1: Relay Center - 15-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
