Home >> GMC >> 1997 >> Jimmy 4D Utility, 4WD >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Remote Control Door Lock Receiver (Pickup)

Remote Control Door Lock Receiver (Pickup)

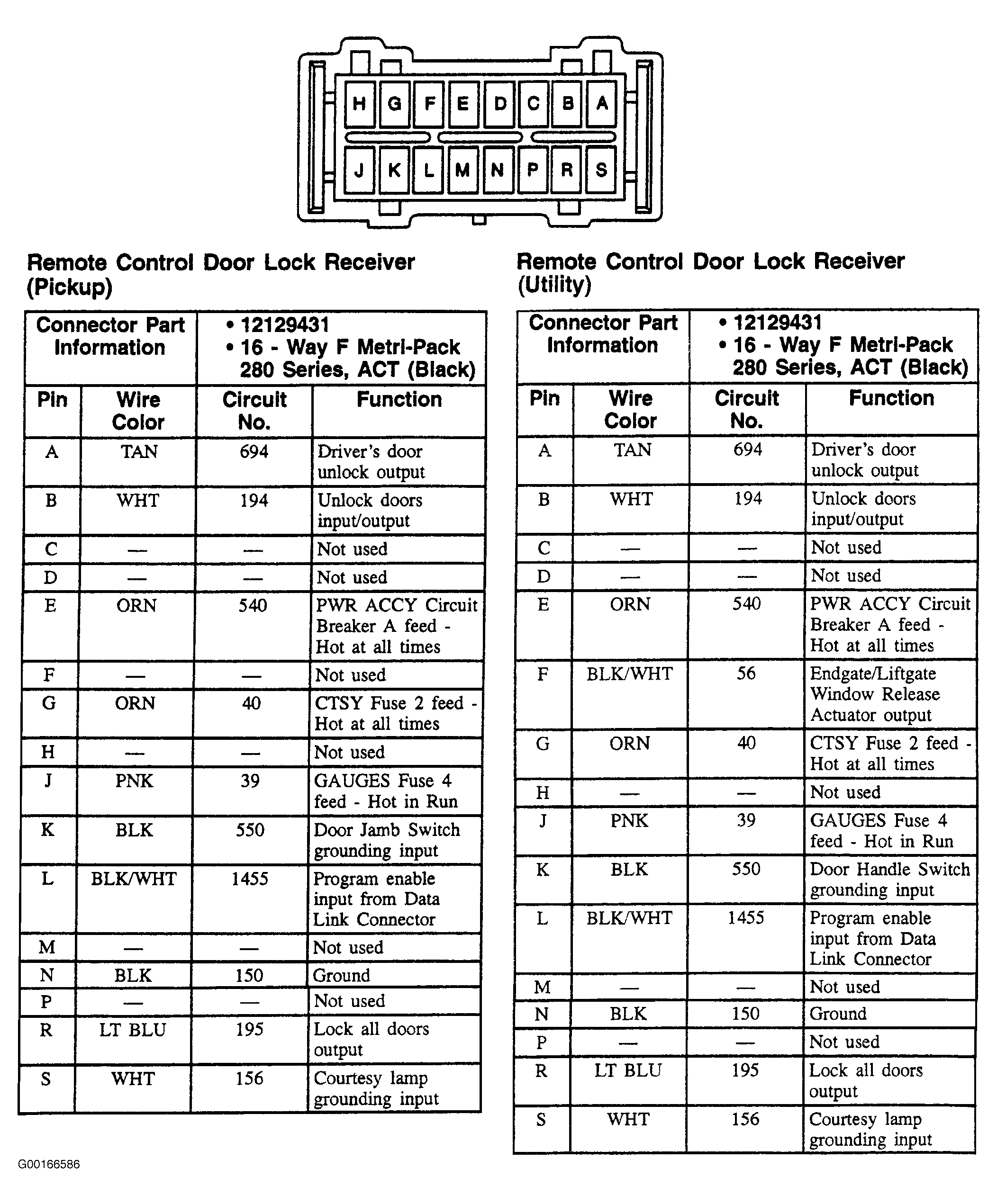

Fig 1: Remote Control Door Lock Receiver - 16-Pin Connector, Black

G00166586

Courtesy of GENERAL MOTORS CORP.
