GMC
>>
1997
>>
Jimmy 4D Utility, 4WD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification
>>
Throttle Position Sensor
Throttle Position Sensor

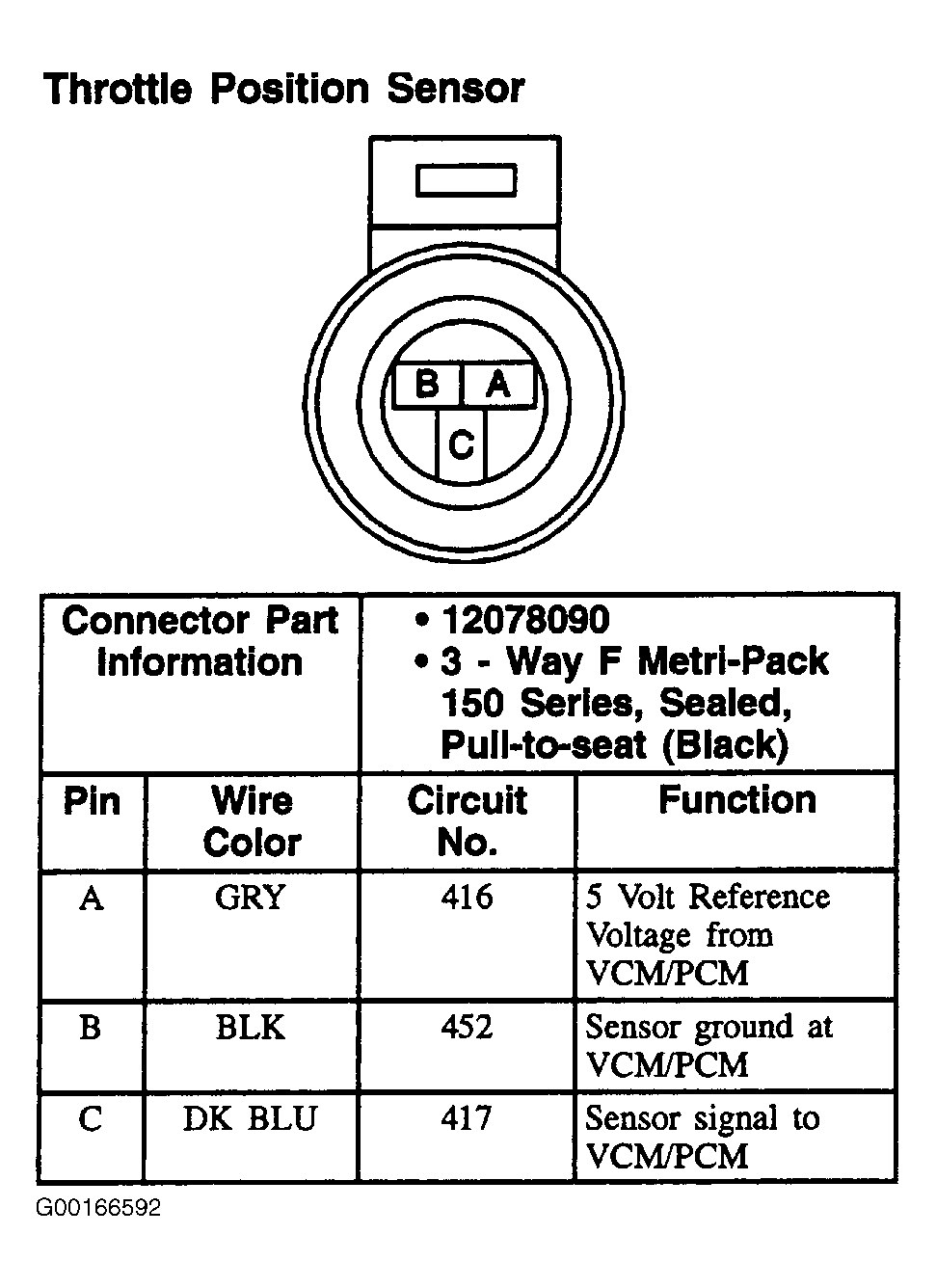

Fig 1: Throttle Position Sensor - 3-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
