Transfer Case Shift Control Module

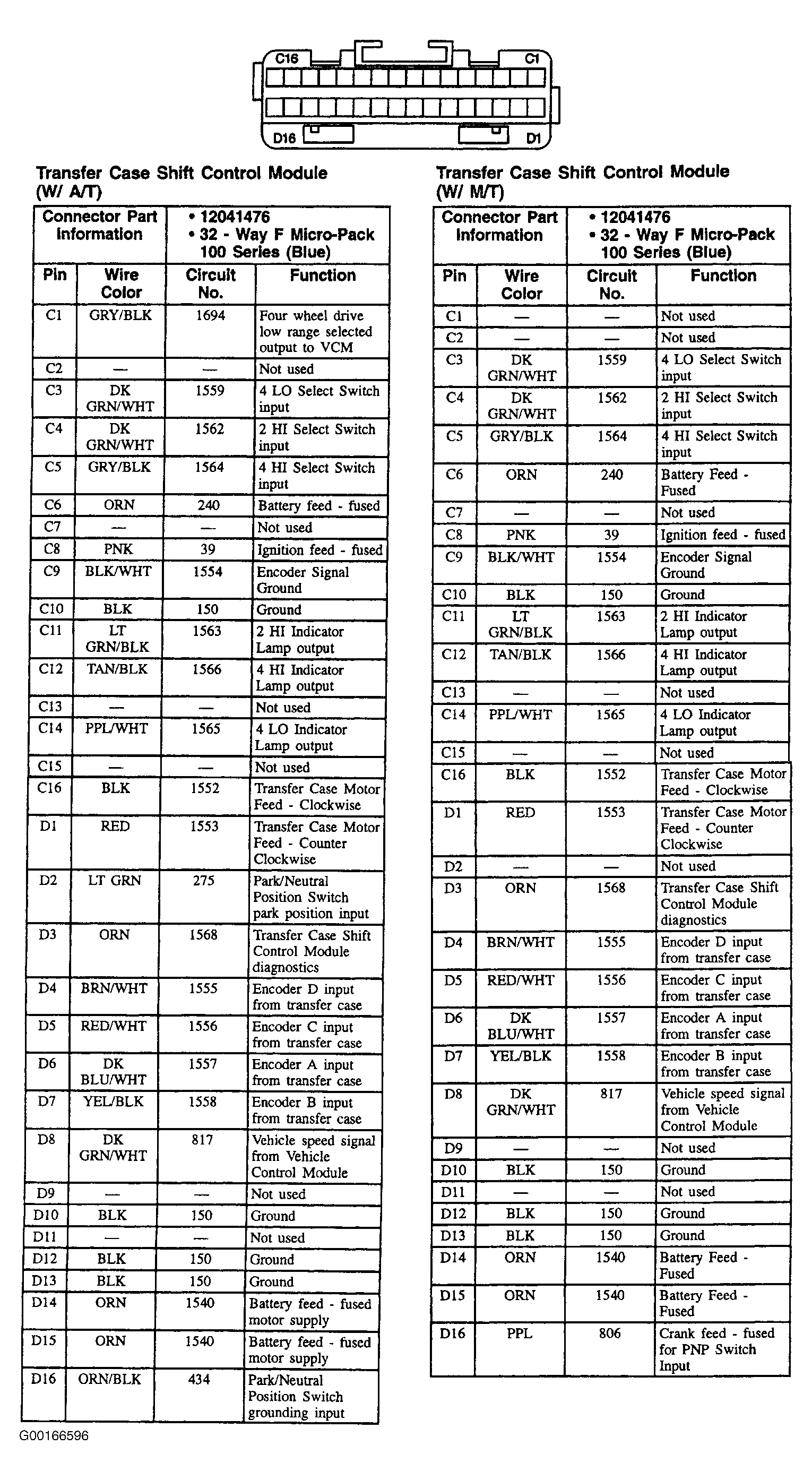

Fig 1: Transfer Case Shift Control Module - 32-Pin Connector, Blue

G00166596

Courtesy of GENERAL MOTORS CORP.
