Home >> GMC >> 1998 >> Forward Control 6.5 F >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - System & Component Testing - 4.3L >> Component Locations

Component Locations

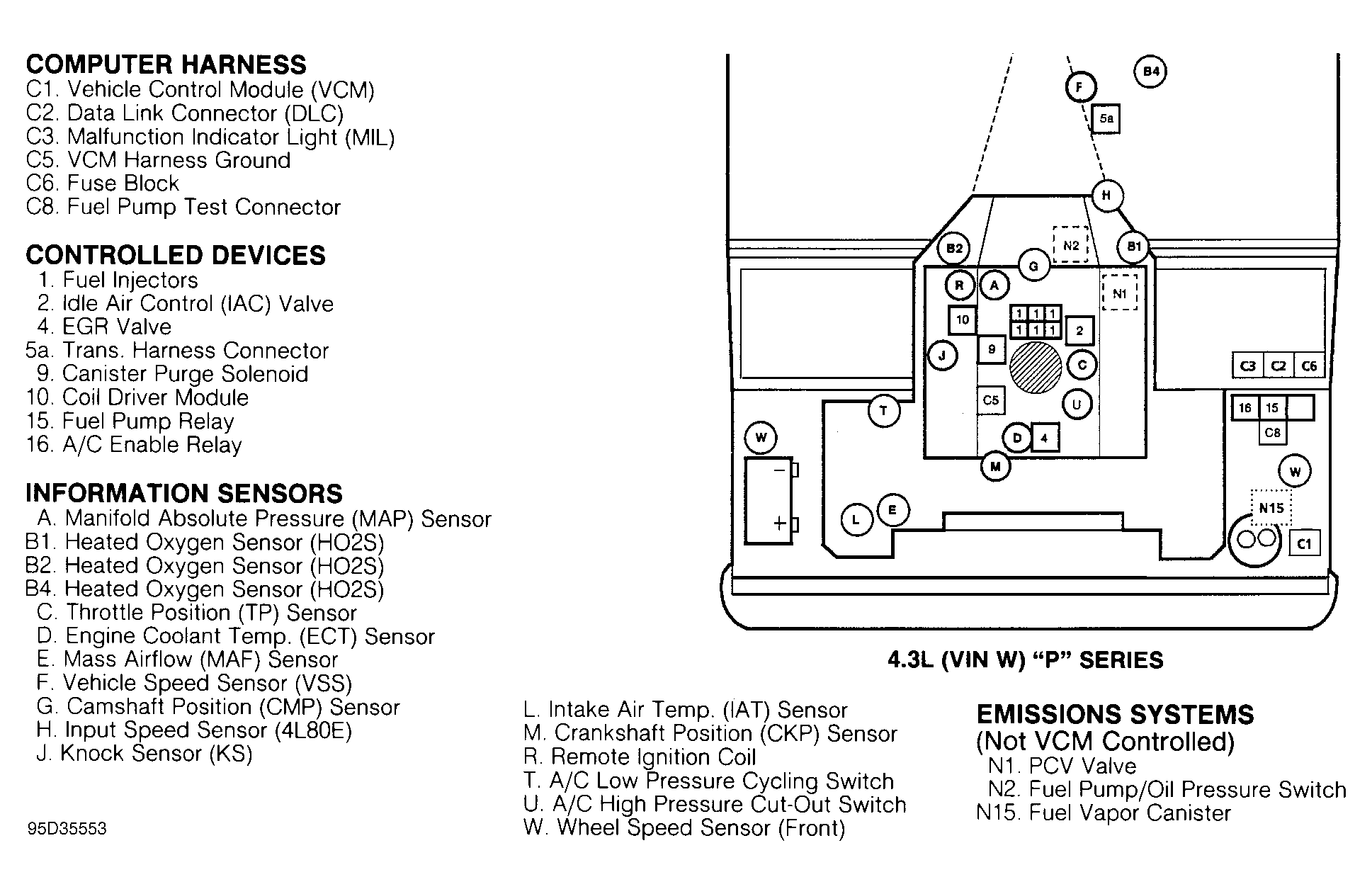

Fig 1: Component Locations For 4.3L (VIN W)
G95D35553Courtesy of GENERAL MOTORS CORP.
