C3500 HD 6.5 F, Standard
>>
Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
System
>>
Engine Controls - System & Component Tests
>>
Computerized Engine Controls
>>
Powertrain Control Module Connector Terminal Identification
>>
Powertrain Control Module Harness Connector End View & Terminal Identification (6.5L)
>>
Notes
Powertrain Control Module Harness Connector End View & Terminal Identification (6.5L): Notes

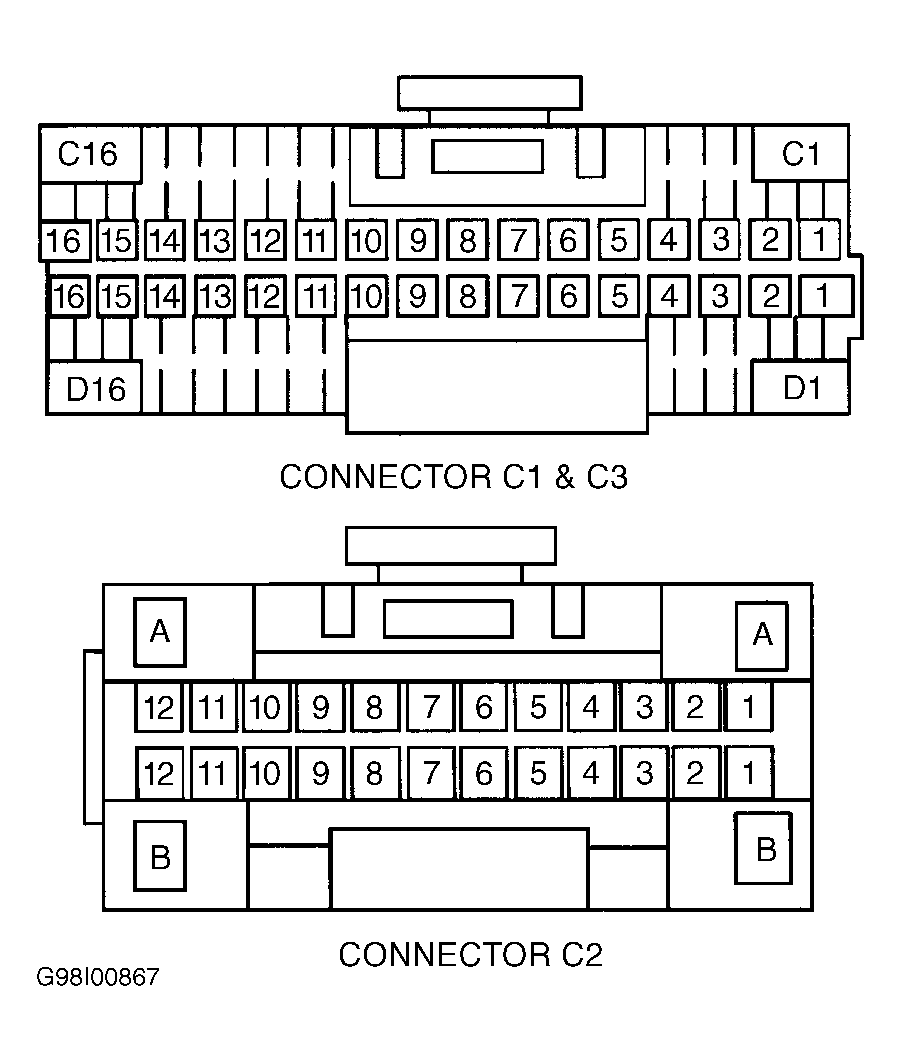

Fig 1: Identifying Control Module Harness Connector Terminals (6.5L)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
