Shift Lock Control System Wiring Schematics

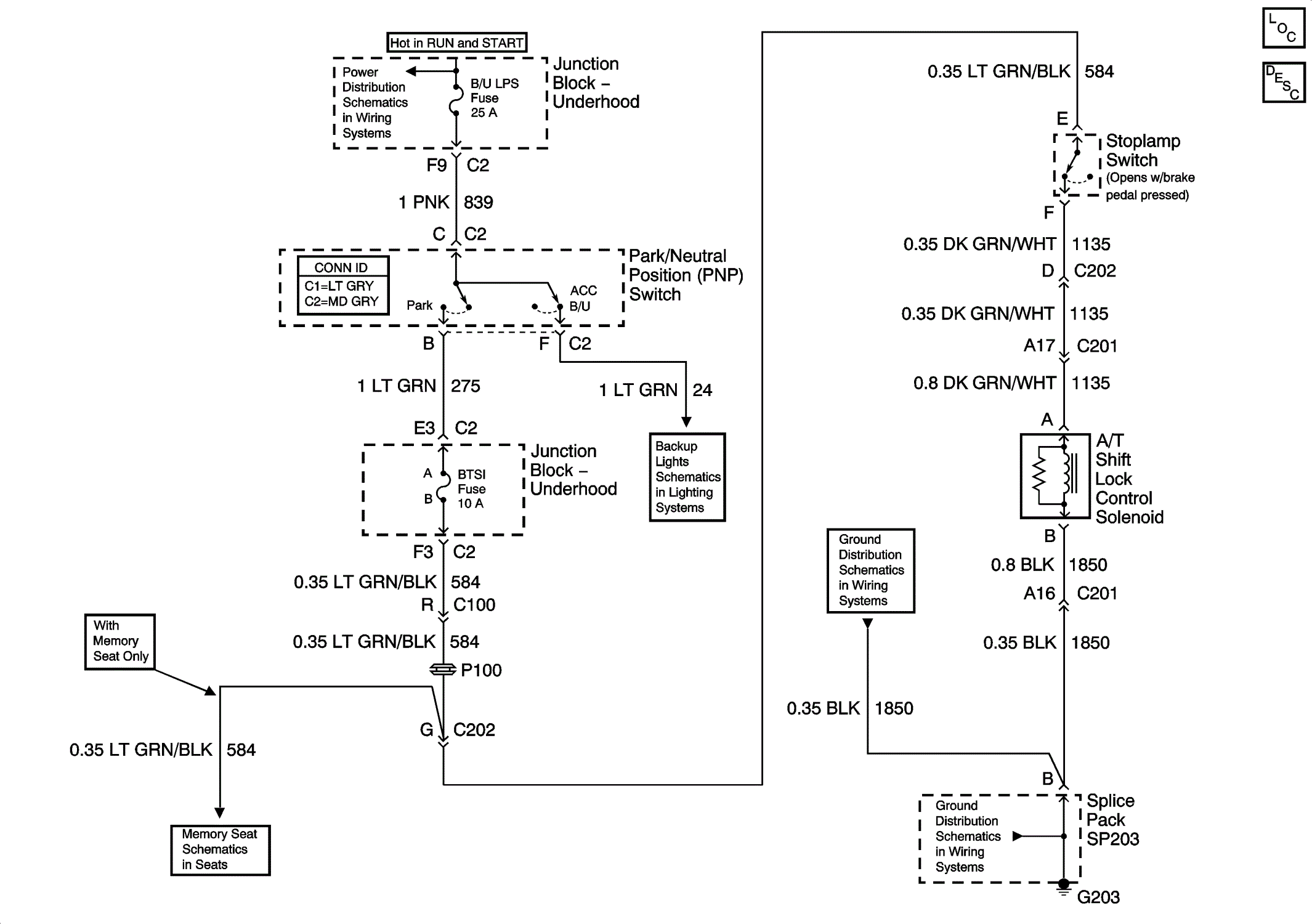

Fig 1: Shift Lock Control System Wiring Schematic

GM711297

Courtesy of GENERAL MOTORS COMPANY
