Injection Lines

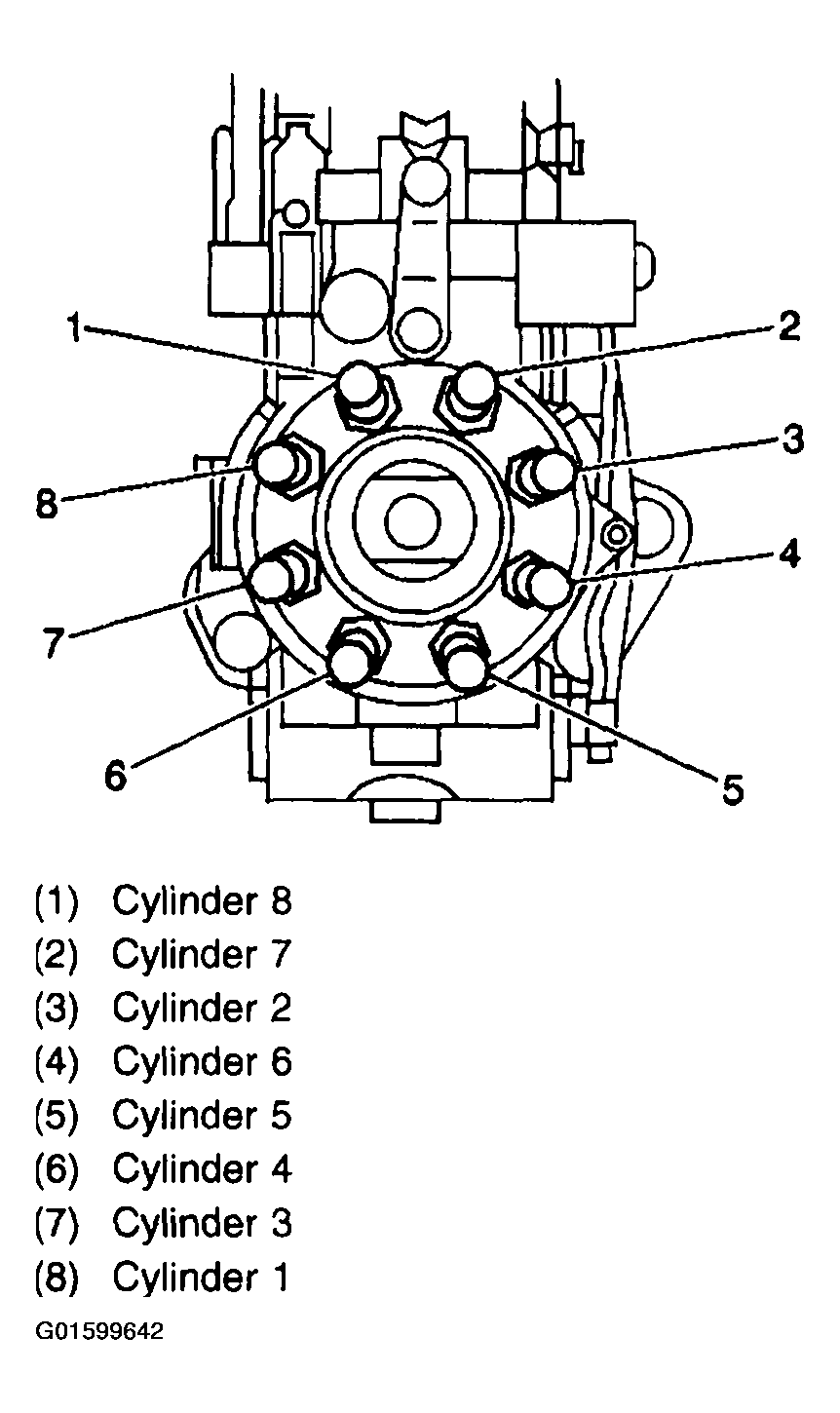

The injection lines connect the high pressure discharge fittings on the head of the injection pump to the injection nozzles. The injection lines are pre-bent for correct routing and connect to the injection pump head as shown in the figure above. The injection lines are equal in length and interior volume.
