Home >> GMC >> 2002 >> C3500 HD 6.5 F, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - 6.5L >> Repair Instructions >> Glow Plug Replacement - Bank 1 >> Installation Procedure

Installation Procedure

NOTE: Refer to FASTENER NOTICE .
  1. Install the glow plugs (1).

    Tighten

    Tighten the glow plugs to 17 N.m (13 lb ft).

  2. Install the lead wires to the glow plugs.
  3. Install the negative battery cables.

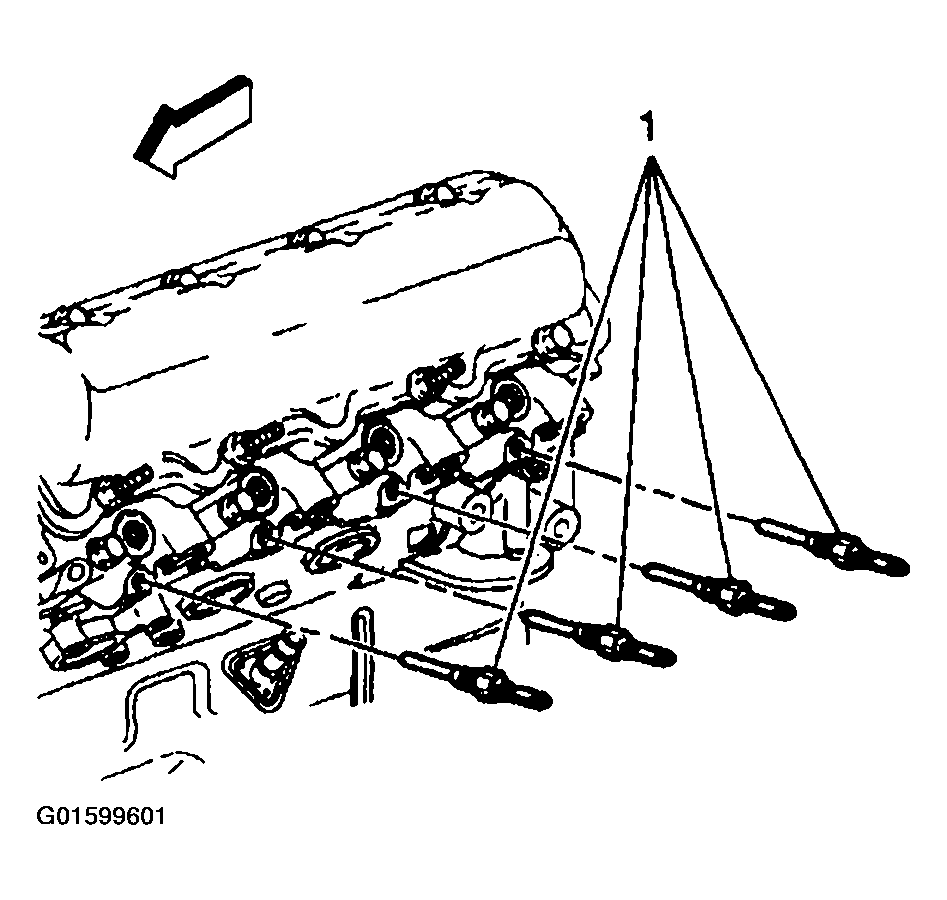

    Fig 1: Glow Plugs (Bank 1)
    G01599601Courtesy of GENERAL MOTORS CORP.
