Engine Controls - 6.5L
>>
Specifications
>>
Engine Speed vs Hertz (Hz)
Engine Speed vs Hertz (Hz)

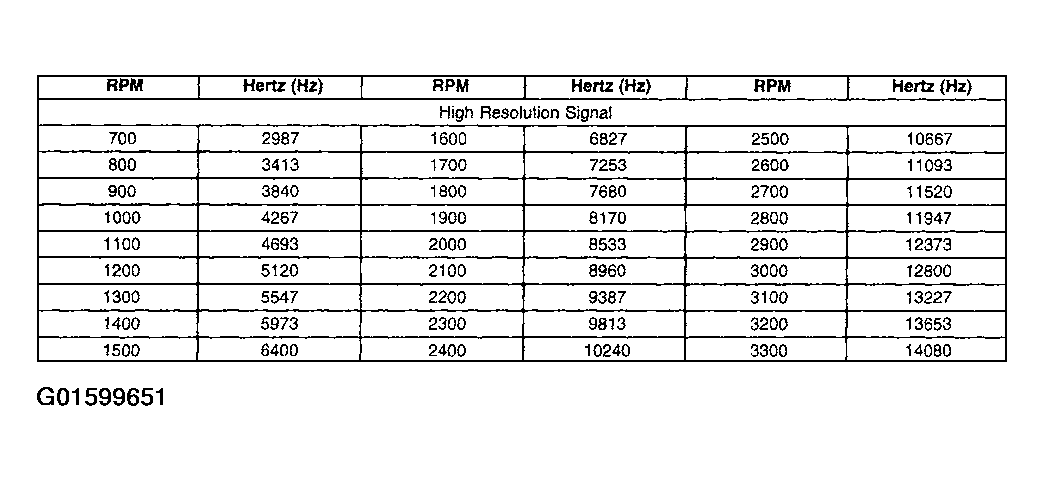

Fig 1: Engine Speed Vs Hertz (High Resolution Signal)
Courtesy of GENERAL MOTORS CORP.

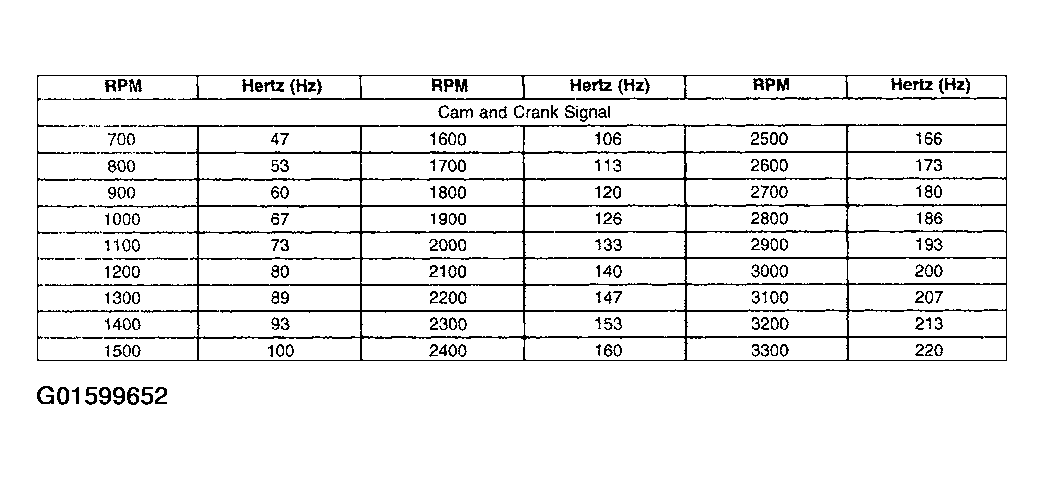

Fig 2: Engine Speed Vs Hertz (Cam & Crank Signal)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
