Automatic Transmission Shift Lock Control Schematics

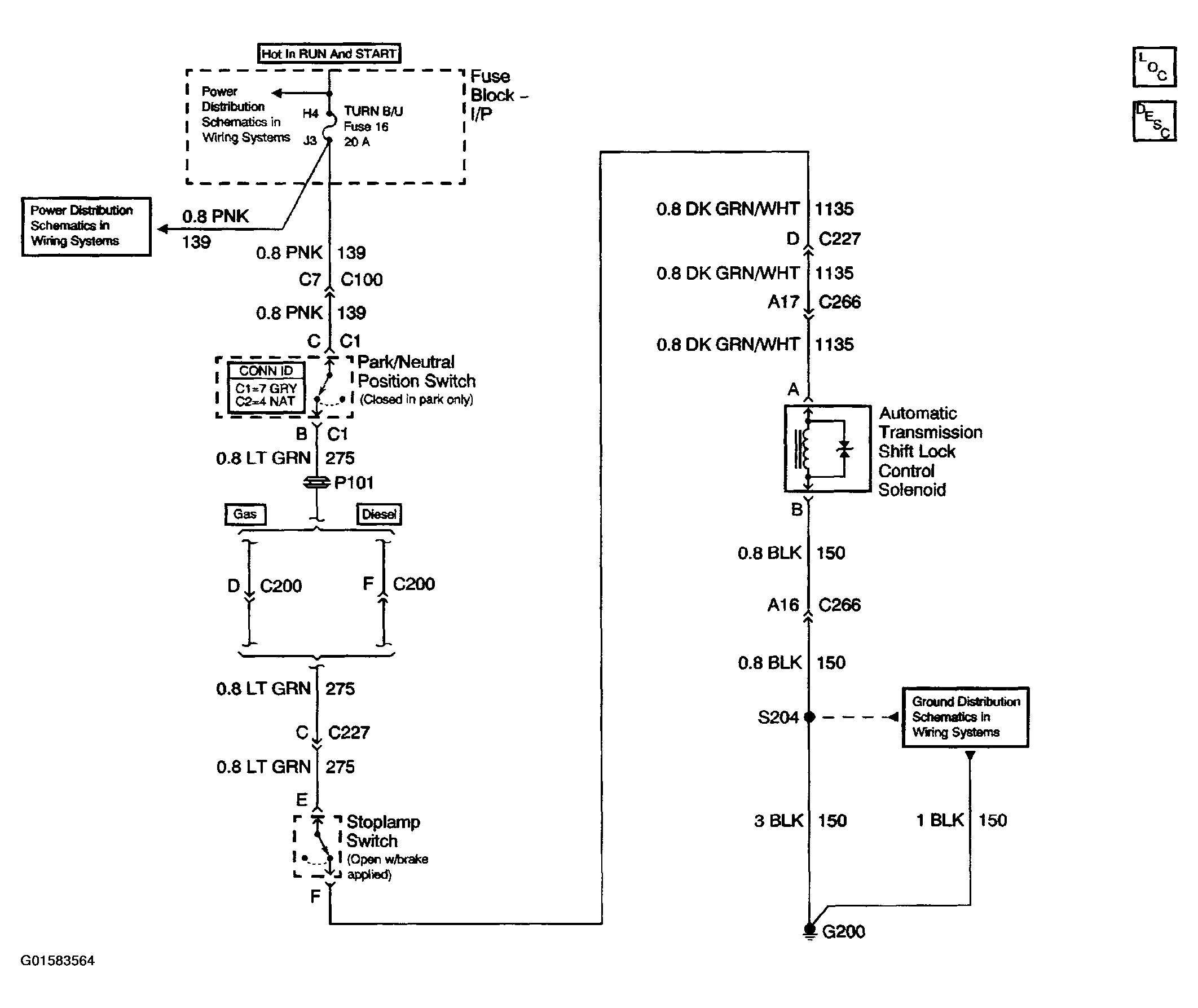

Fig 1: Automatic Transmission Shift Lock Control Schematics

G01583564

Courtesy of GENERAL MOTORS CORP.
