Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Remove negative battery cables.
  2. Remove the electrical connector.
  3. Remove the mounting bolts.

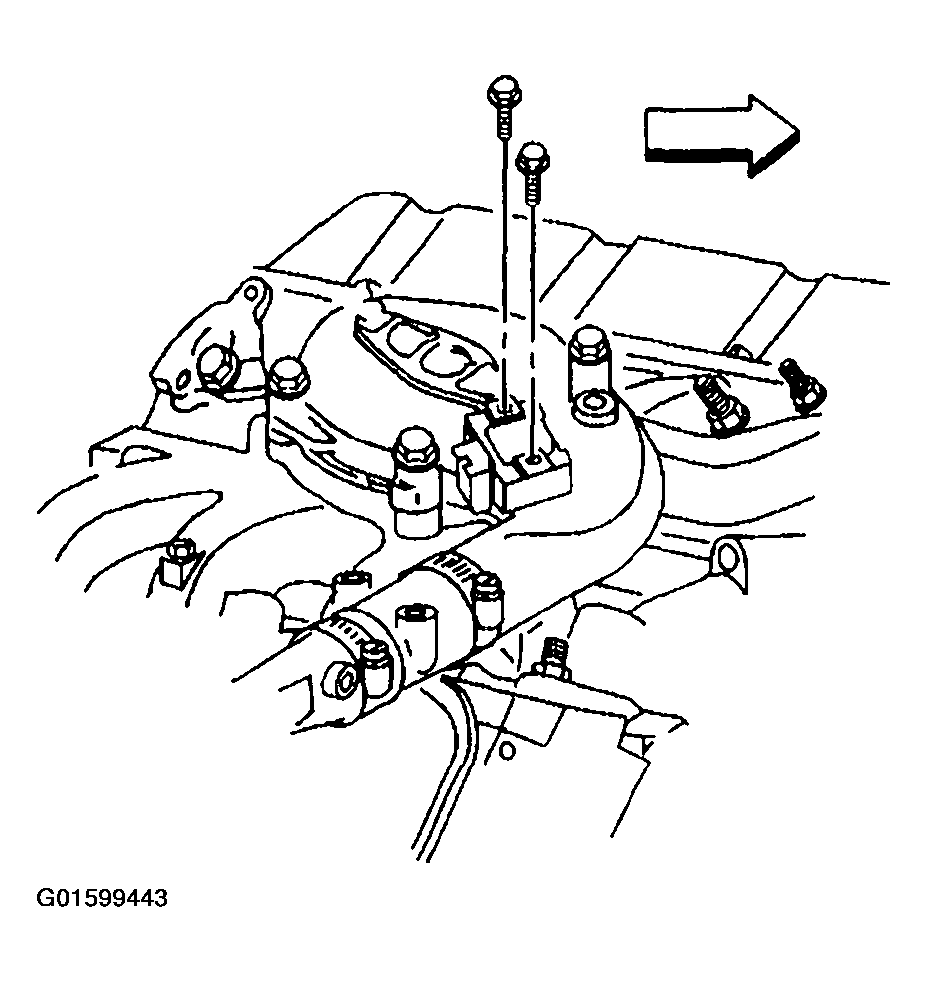

    Fig 1: Boost Sensor Mounting Bolts
    G01599443Courtesy of GENERAL MOTORS CORP.
  4. Remove the sensor.

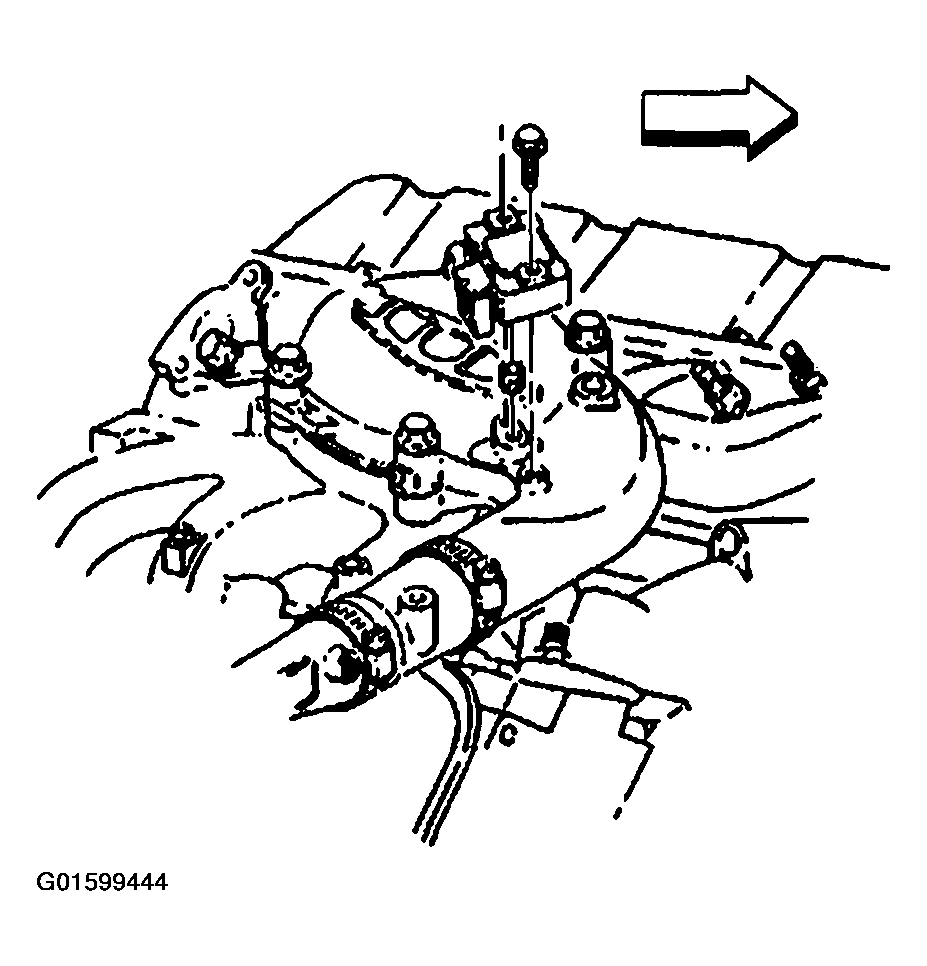

    Fig 2: Boost Sensor
    G01599444Courtesy of GENERAL MOTORS CORP.
