Engine Controls - 8.1L
>>
Component Locator
>>
Engine Controls Connector End Views
Engine Controls Connector End Views

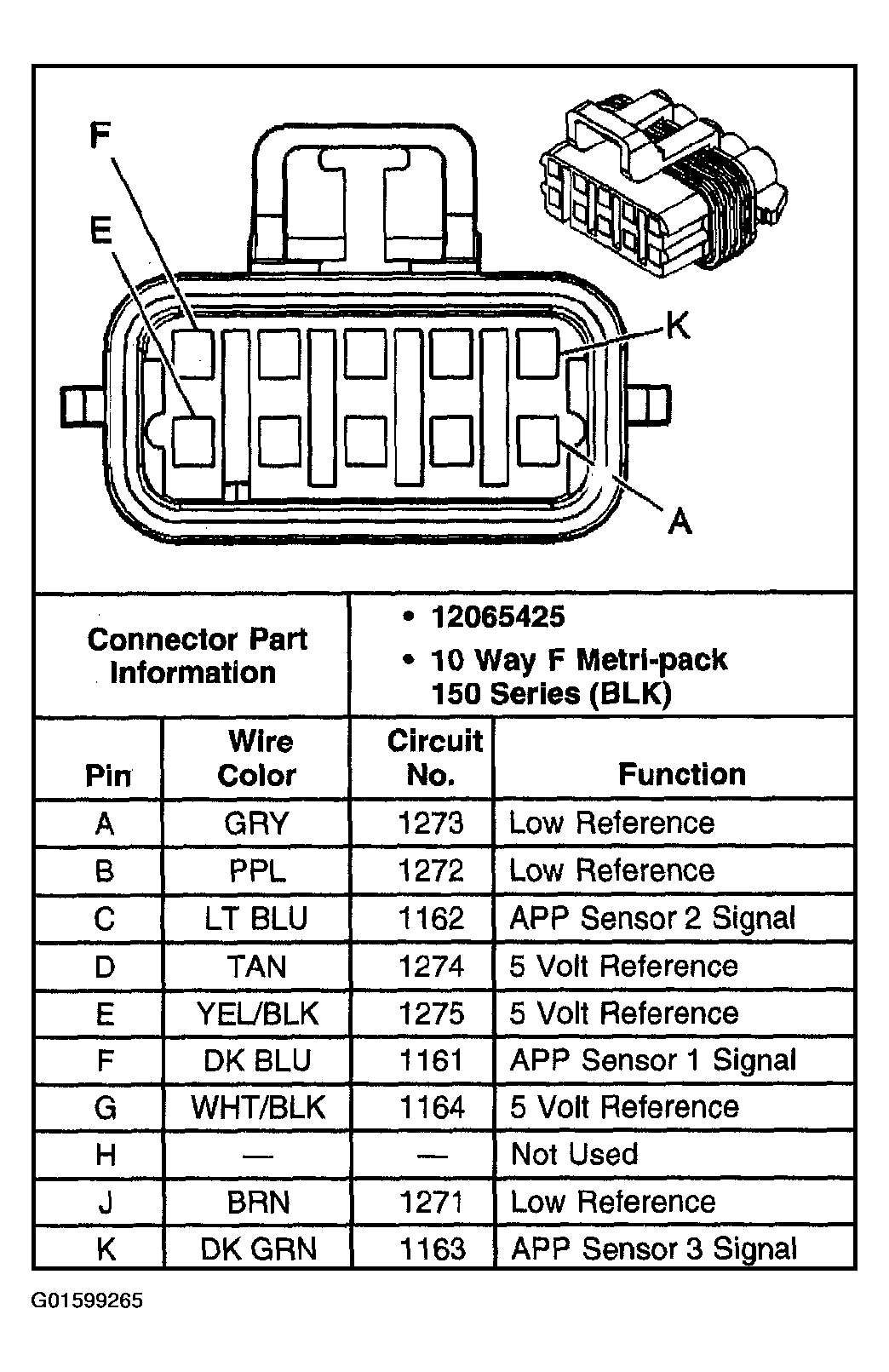

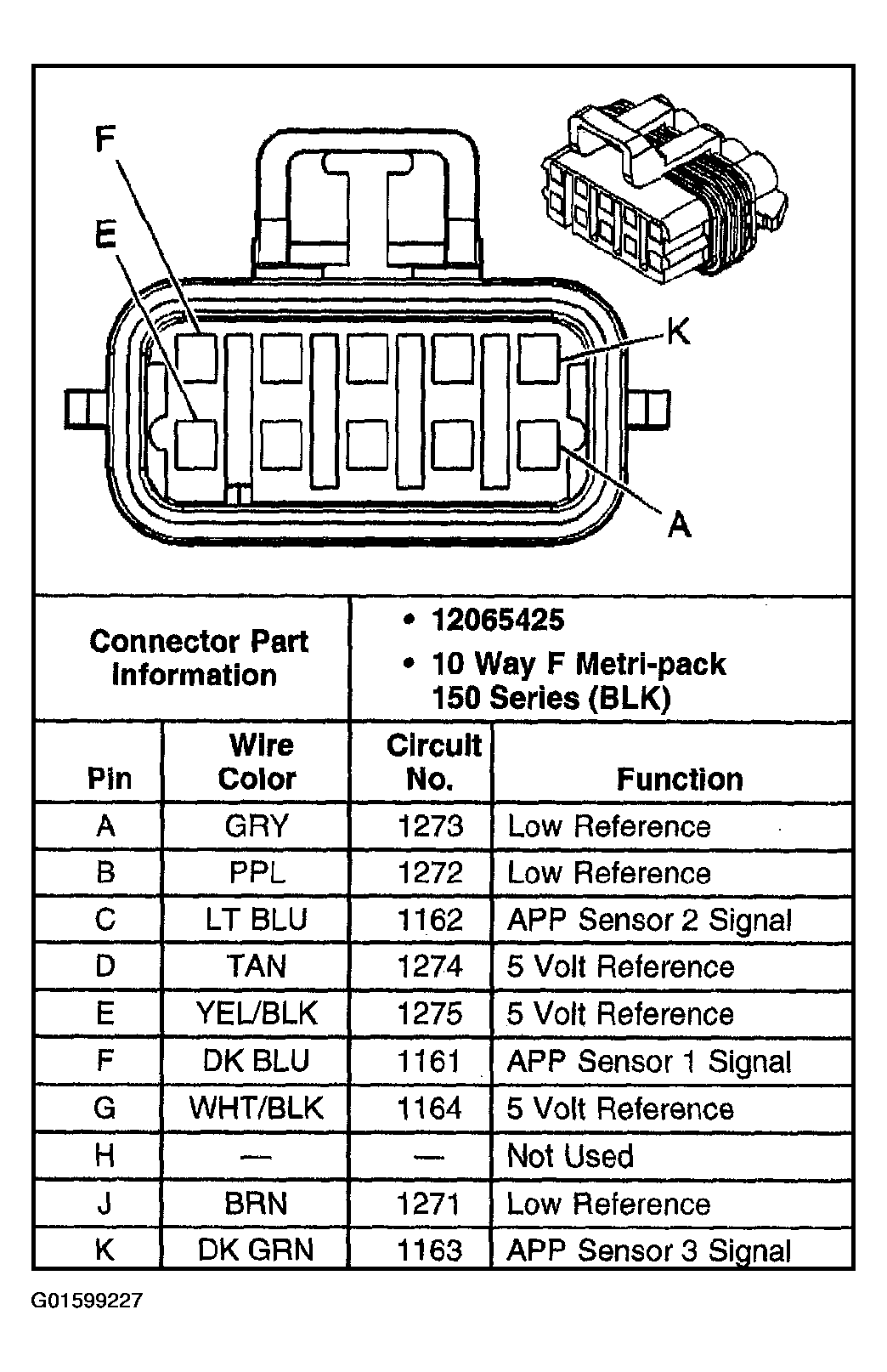

Fig 1: Accelerator Pedal Position (APP) Sensor
Courtesy of GENERAL MOTORS CORP.

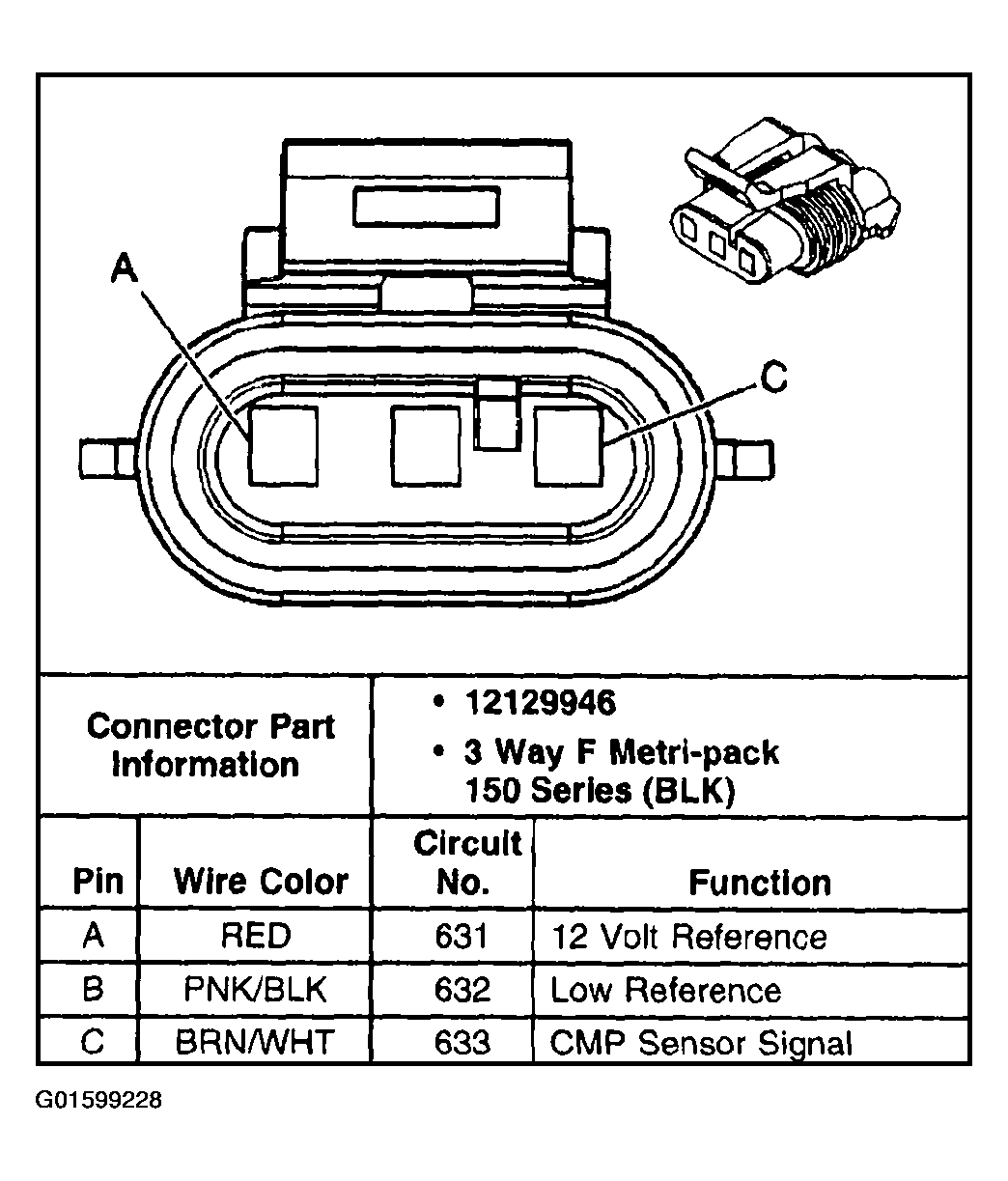

Fig 2: Camshaft Position (CMP) Sensor
Courtesy of GENERAL MOTORS CORP.

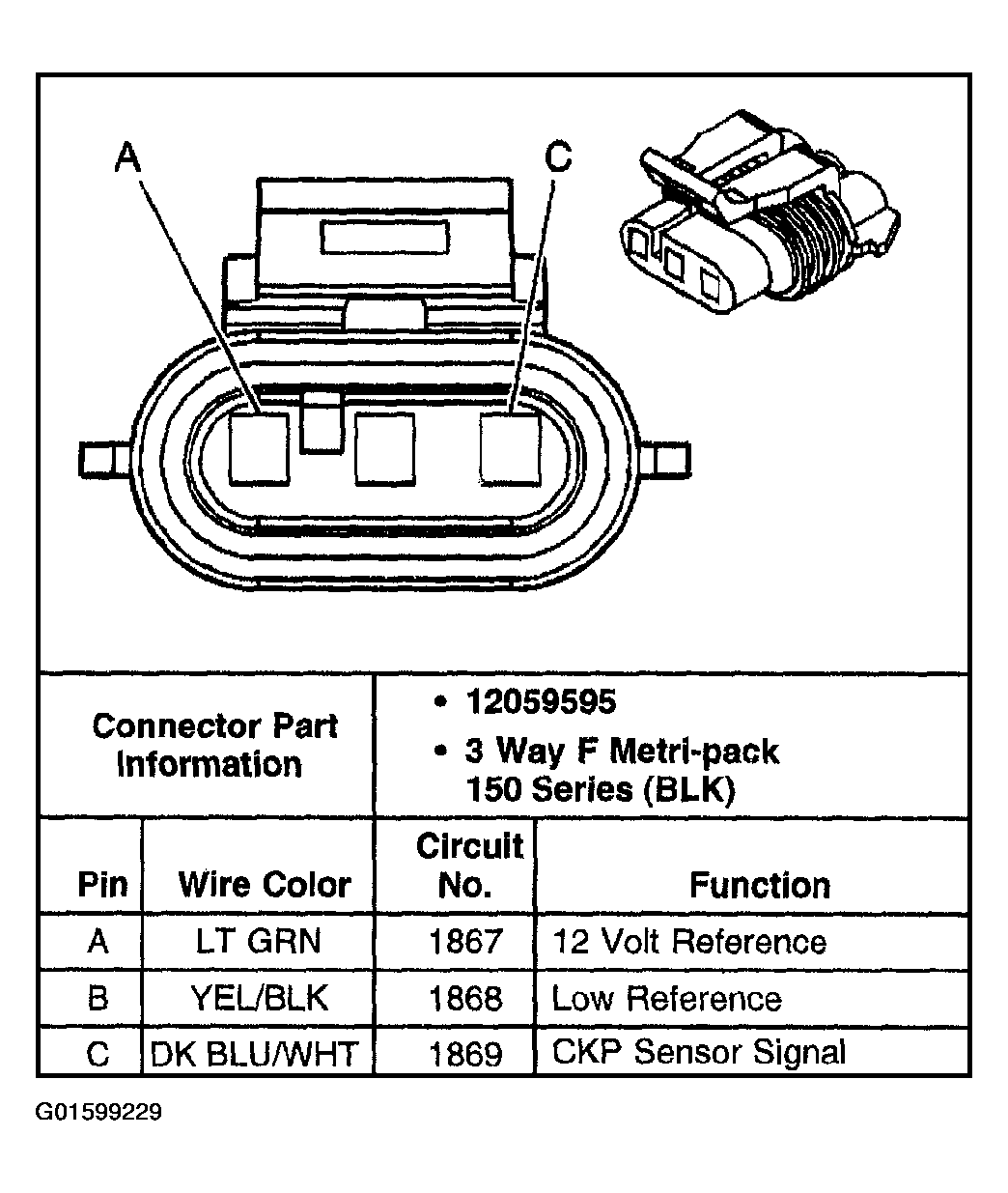

Fig 3: Crankshaft Position (CKP) Sensor
Courtesy of GENERAL MOTORS CORP.

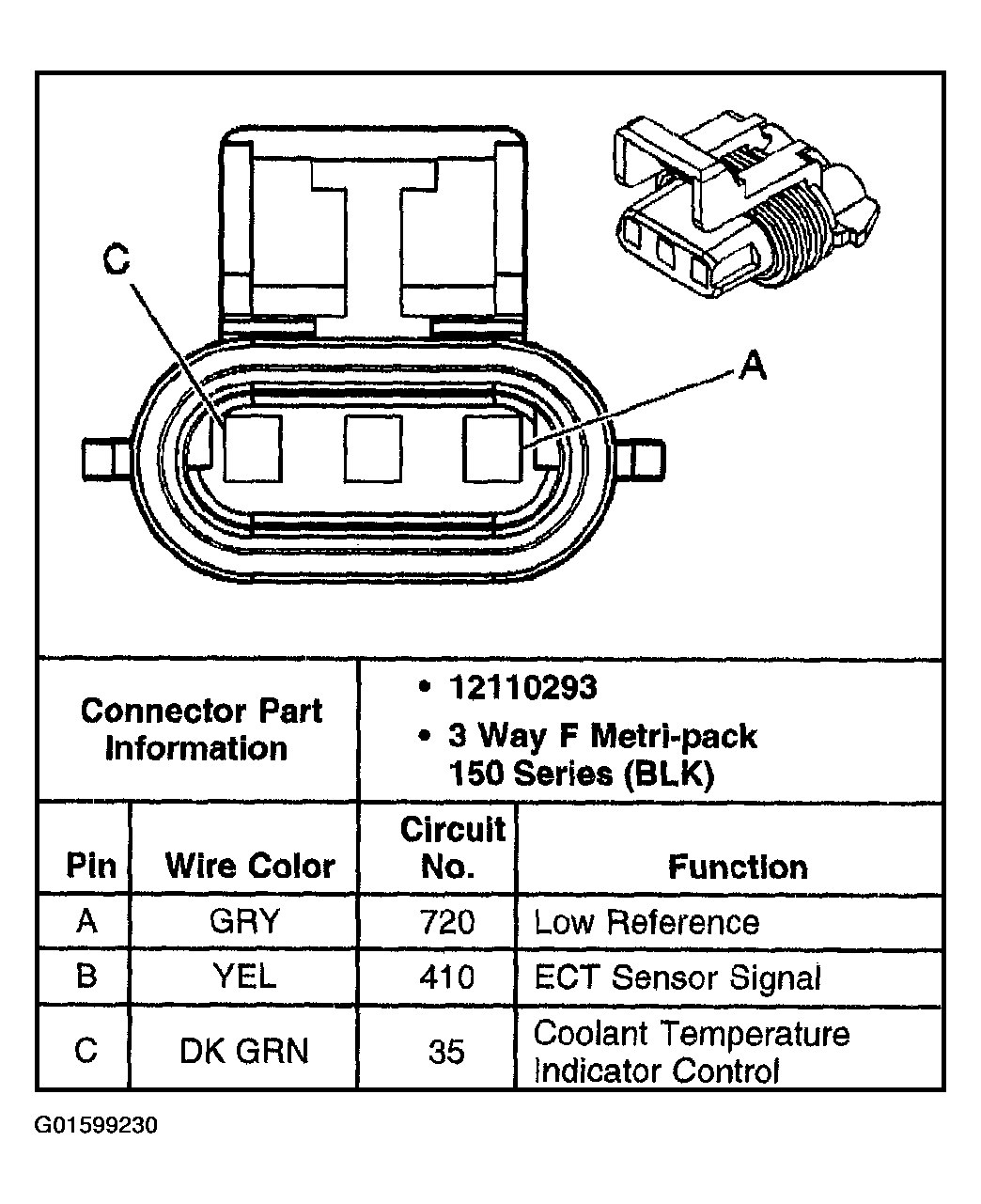

Fig 4: Engine Coolant Temperature (ECT) Sensor
Courtesy of GENERAL MOTORS CORP.

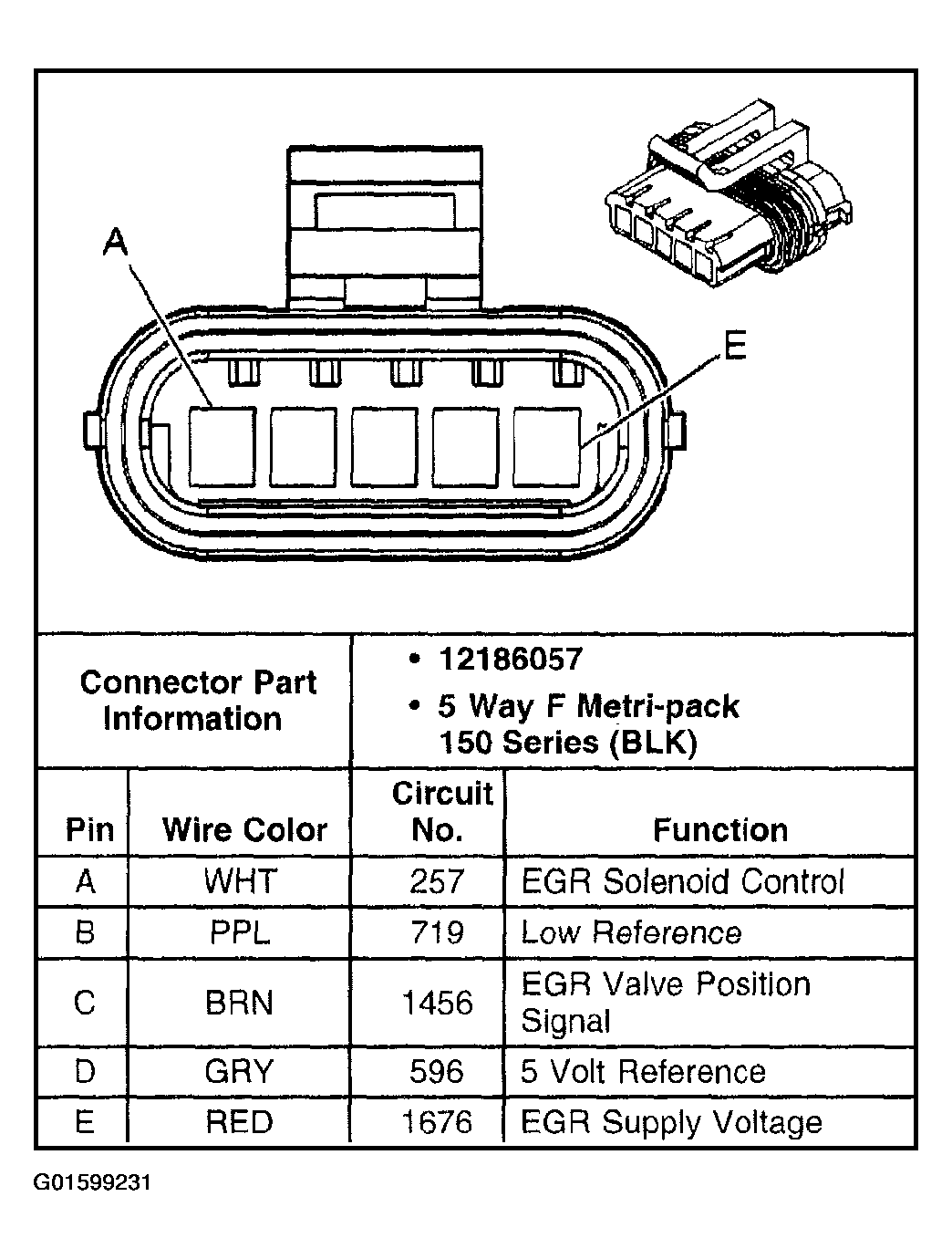

Fig 5: Exhaust Gas Recirculation (EGR) Valve
Courtesy of GENERAL MOTORS CORP.

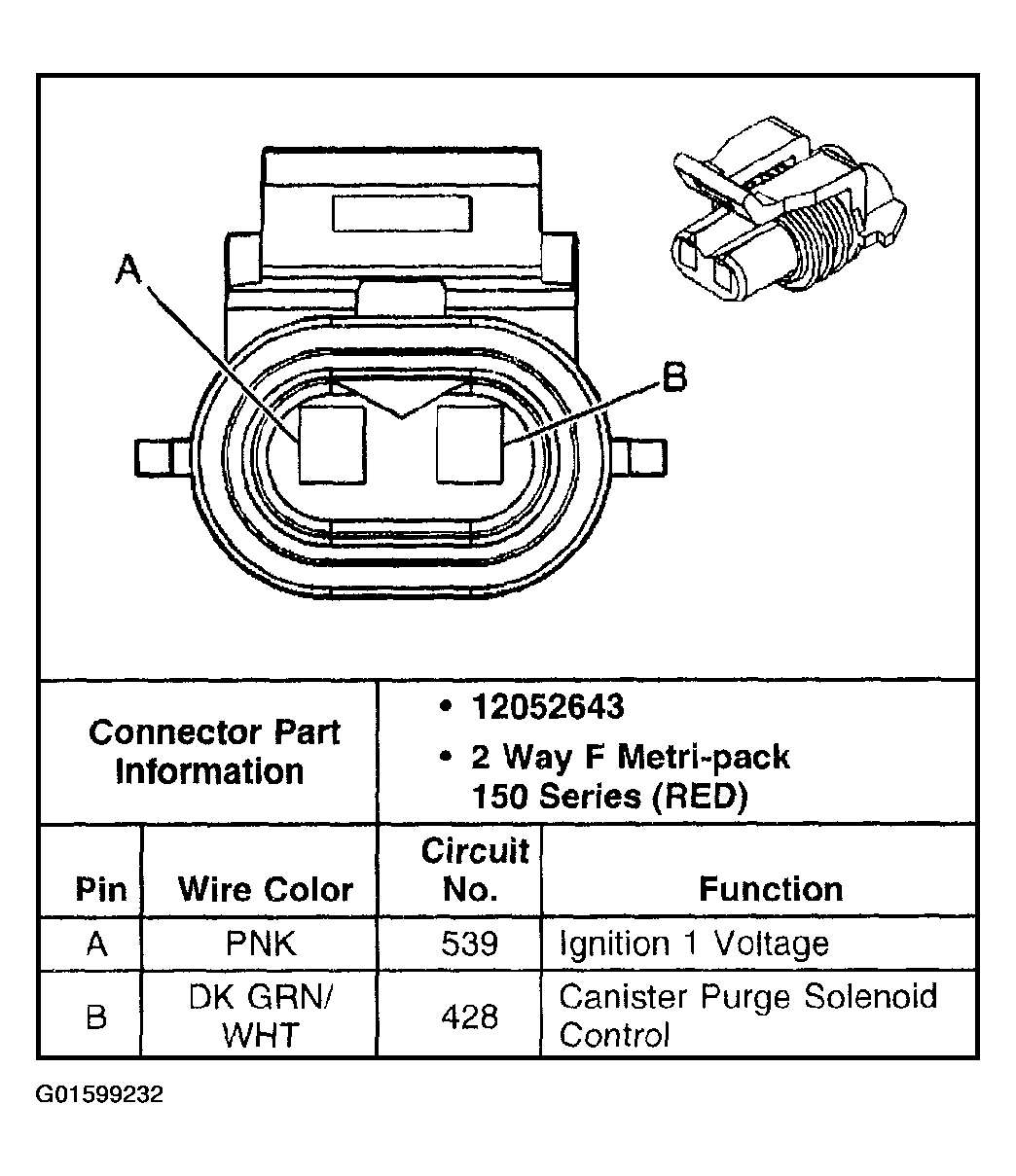

Fig 6: Evaporative Emission (EVAP) Canister Purge Valve
Courtesy of GENERAL MOTORS CORP.

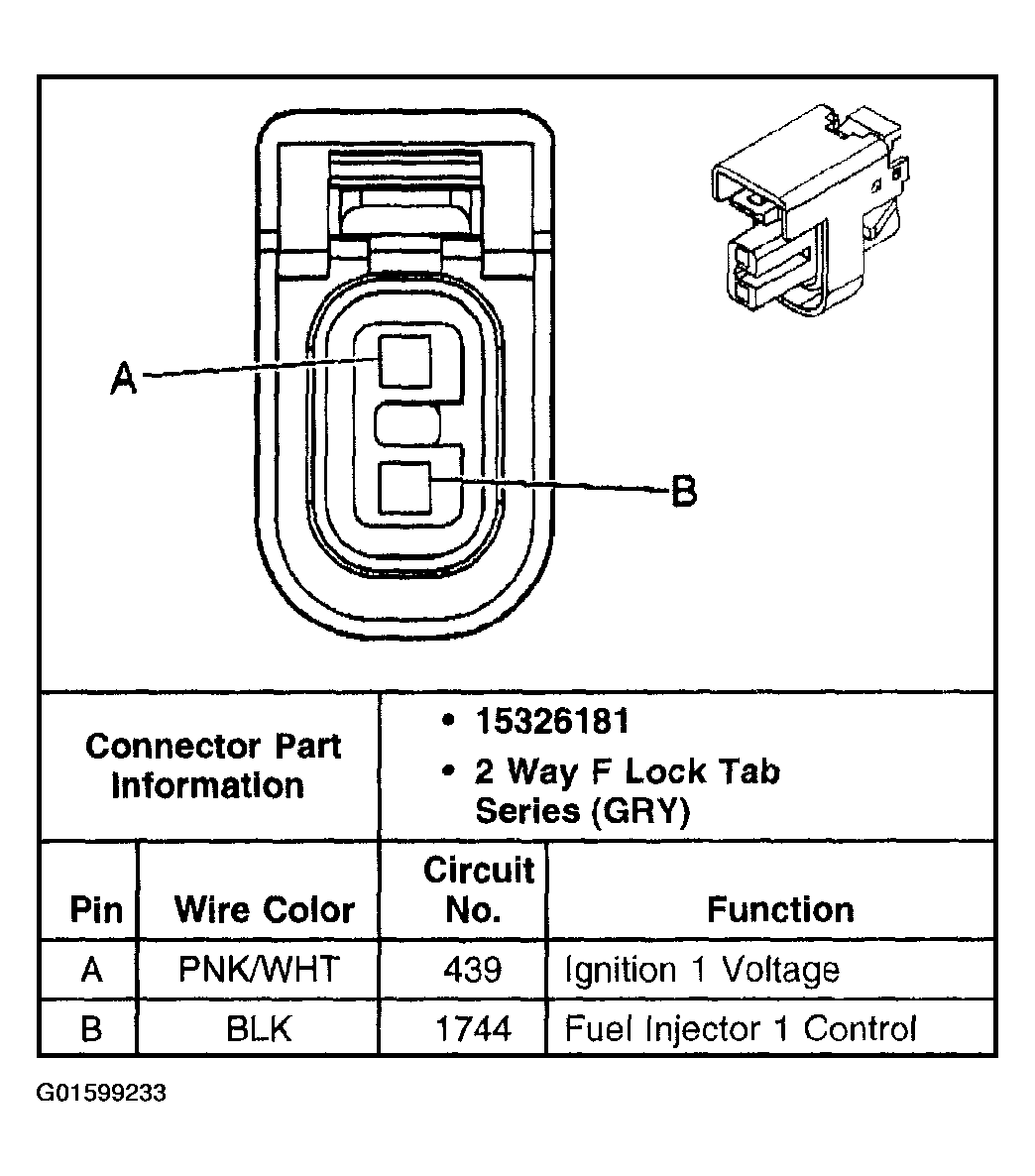

Fig 7: Fuel Injector 1
Courtesy of GENERAL MOTORS CORP.

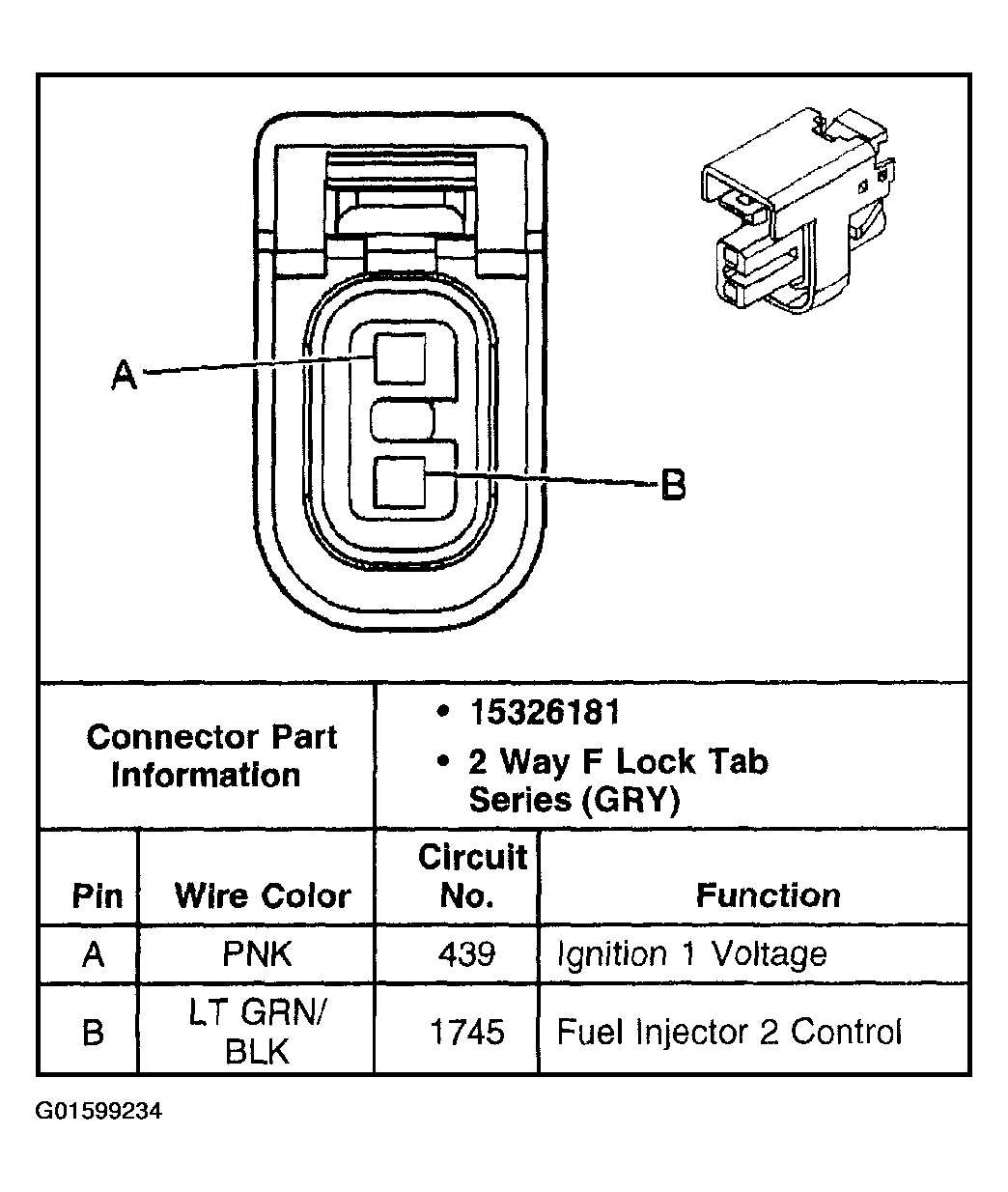

Fig 8: Fuel Injector 2
Courtesy of GENERAL MOTORS CORP.

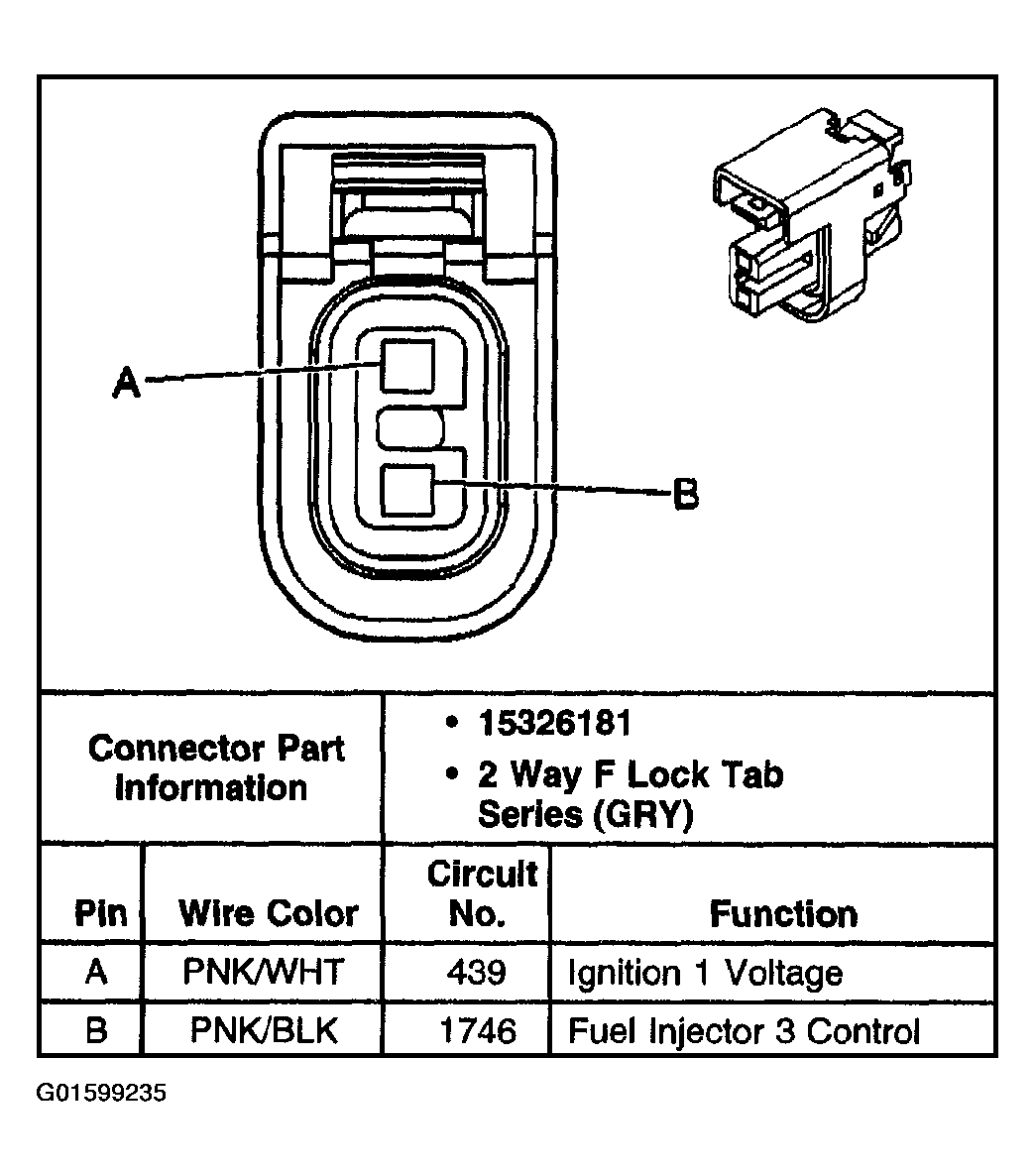

Fig 9: Fuel Injector 3
Courtesy of GENERAL MOTORS CORP.

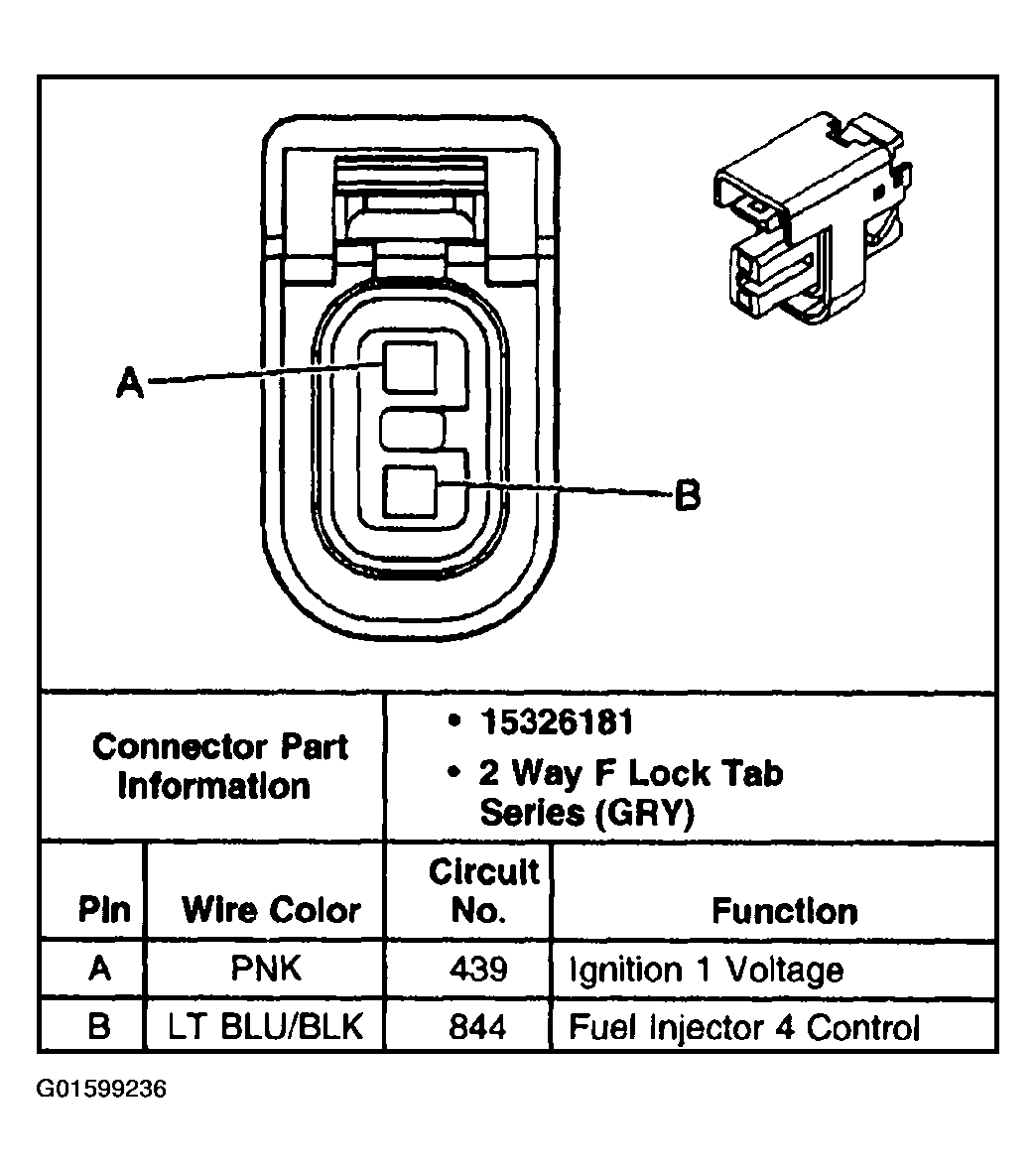

Fig 10: Fuel Injector 4
Courtesy of GENERAL MOTORS CORP.

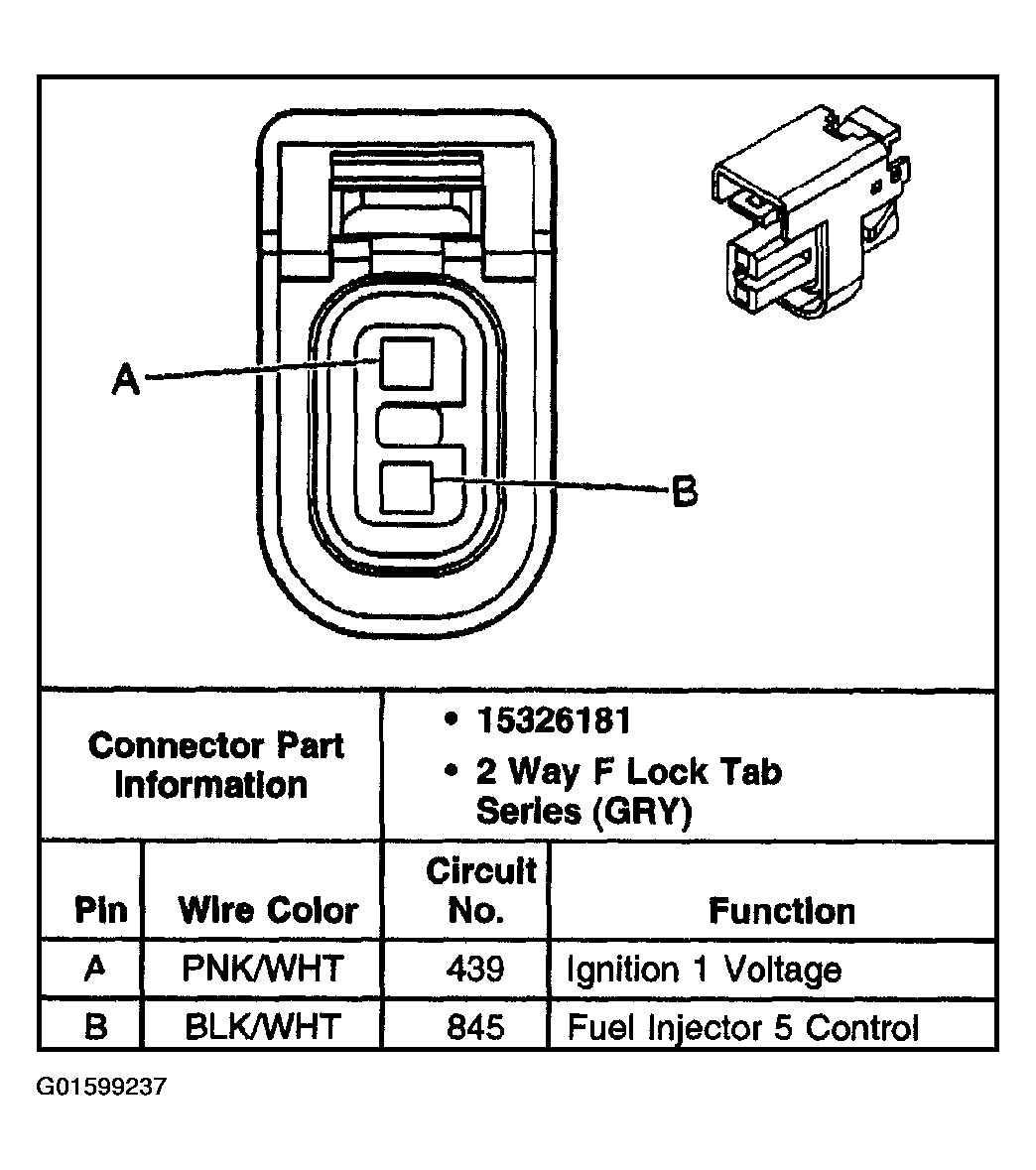

Fig 11: Fuel Injector 5
Courtesy of GENERAL MOTORS CORP.

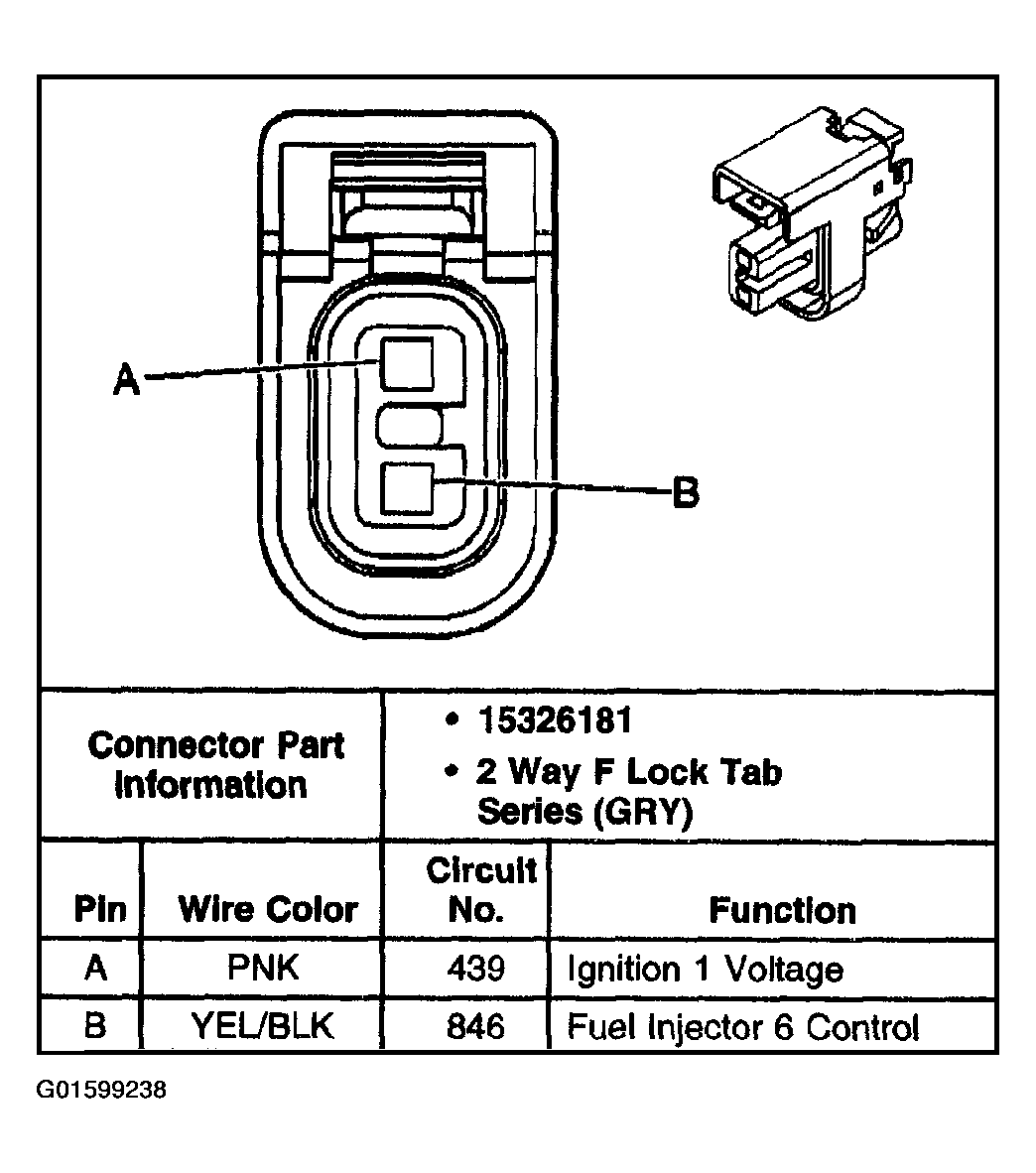

Fig 12: Fuel Injector 6
Courtesy of GENERAL MOTORS CORP.

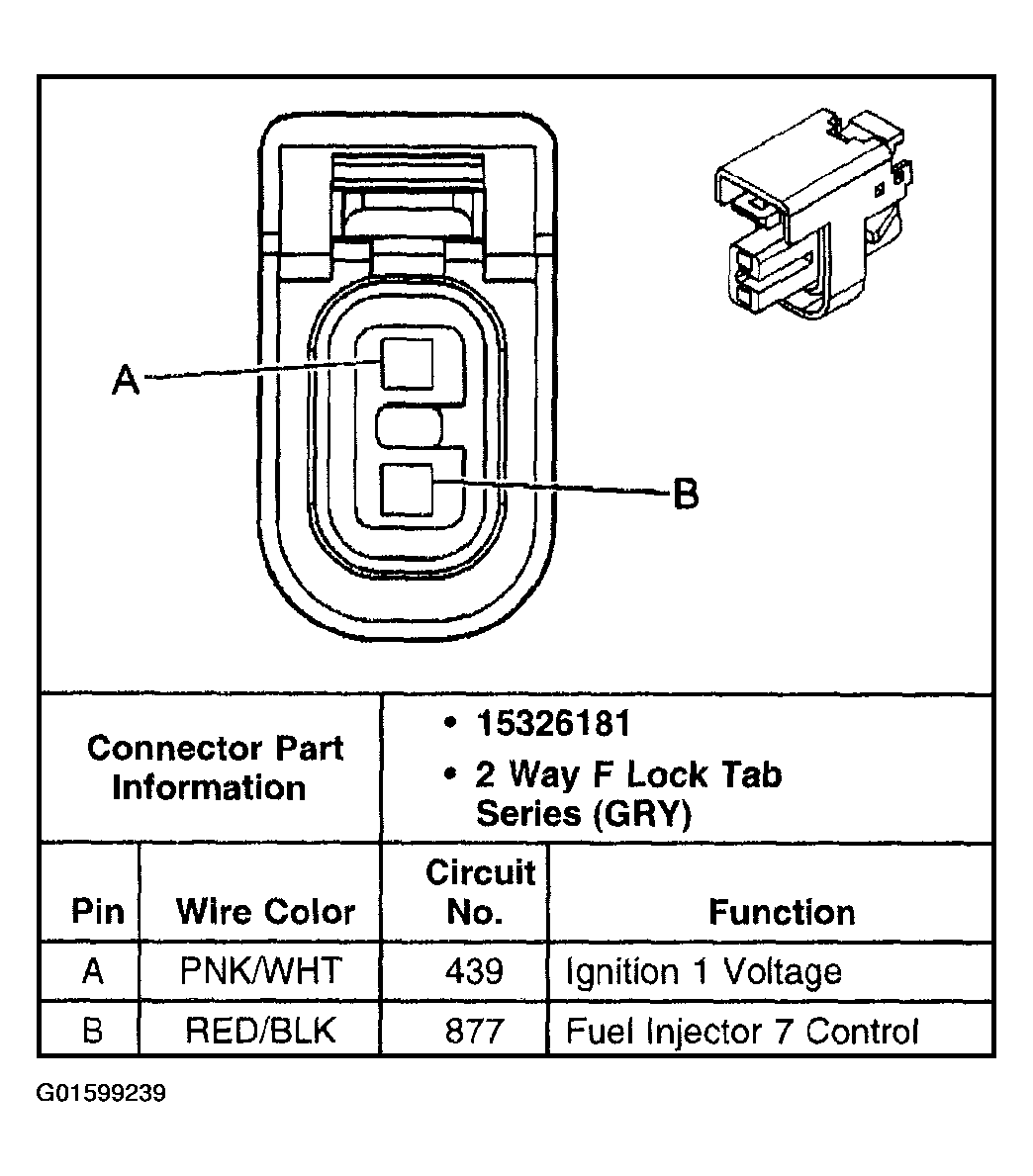

Fig 13: Fuel Injector 7
Courtesy of GENERAL MOTORS CORP.

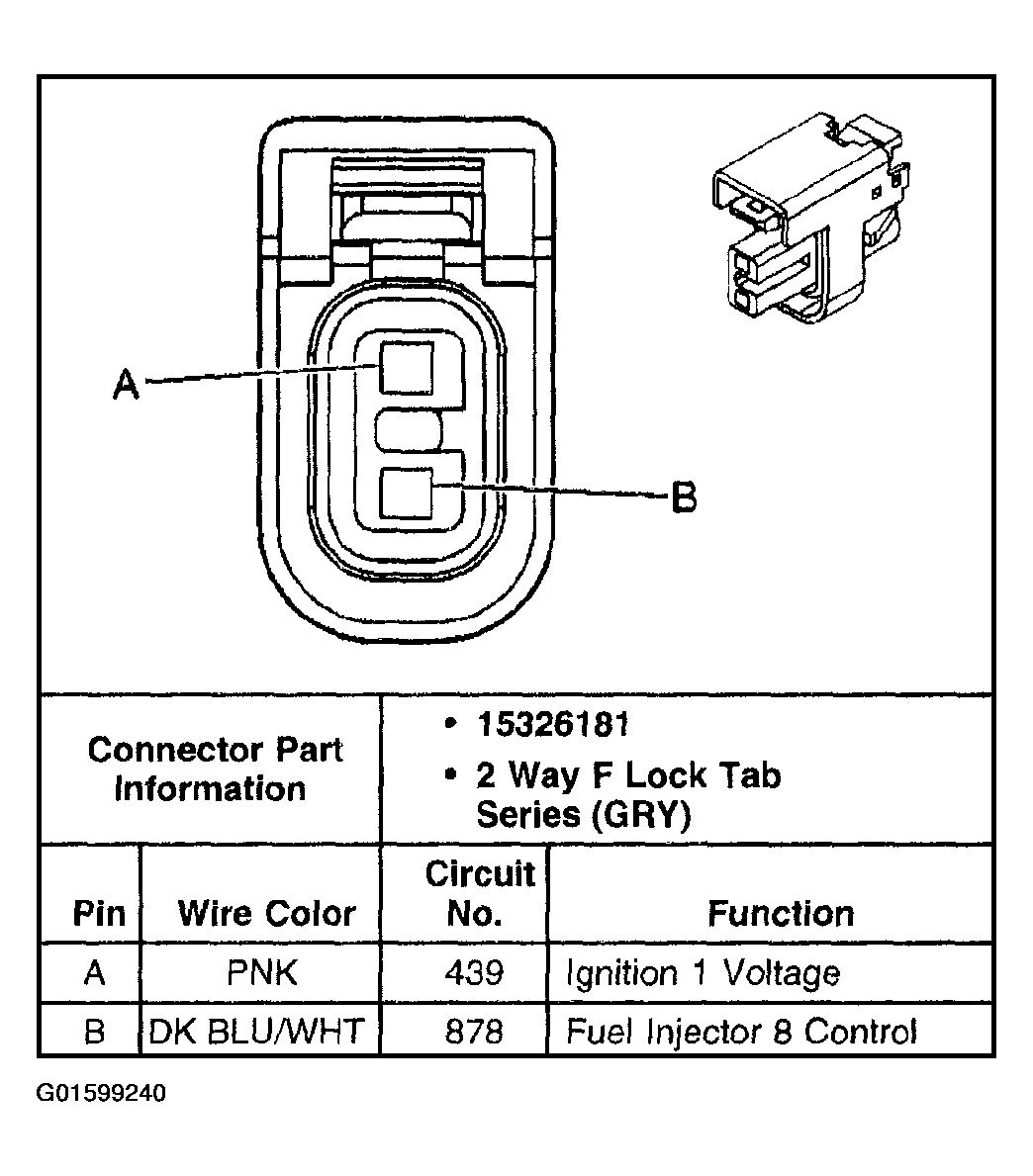

Fig 14: Fuel Injector 8
Courtesy of GENERAL MOTORS CORP.

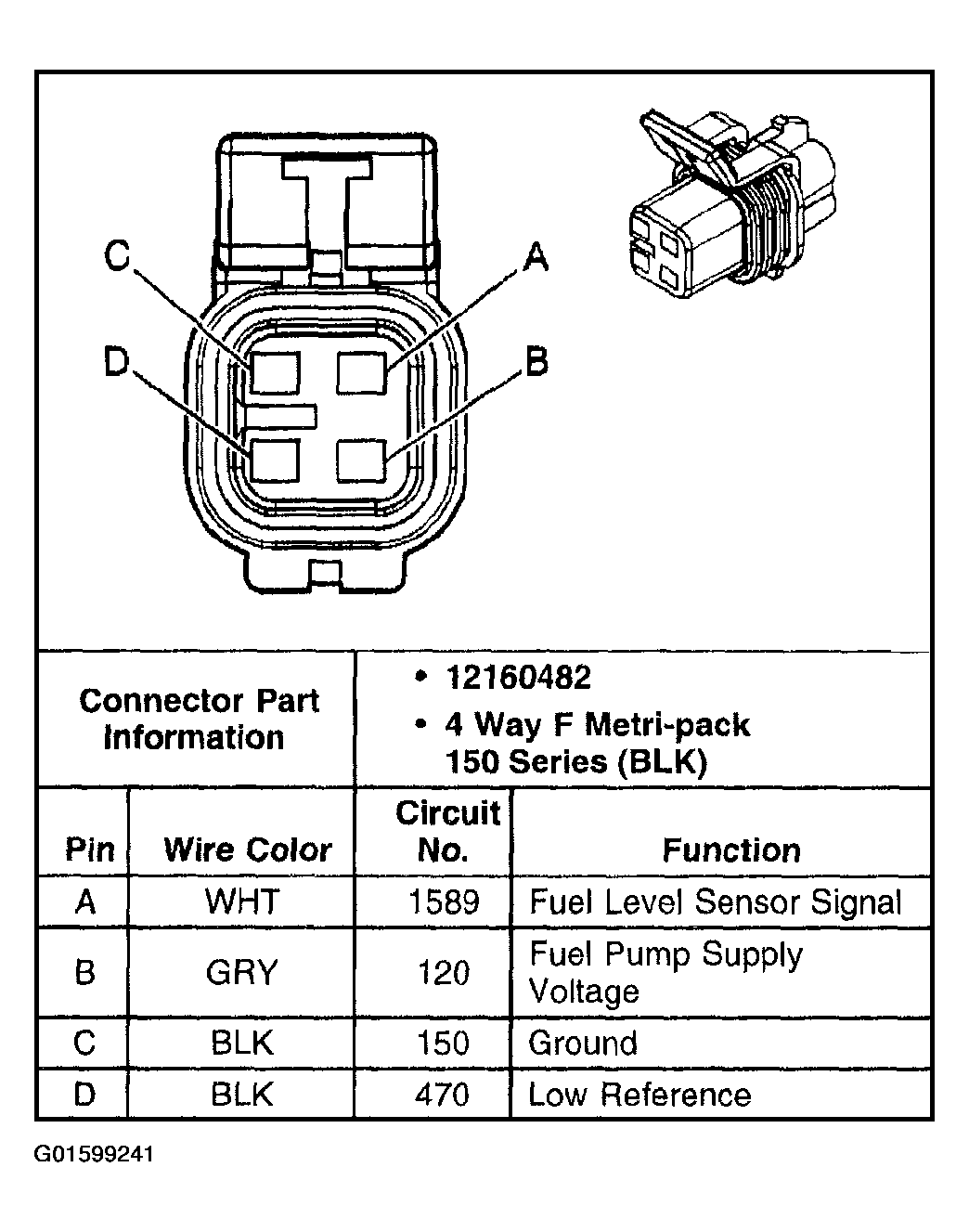

Fig 15: Fuel Pump & Sender - Single Tank
Courtesy of GENERAL MOTORS CORP.

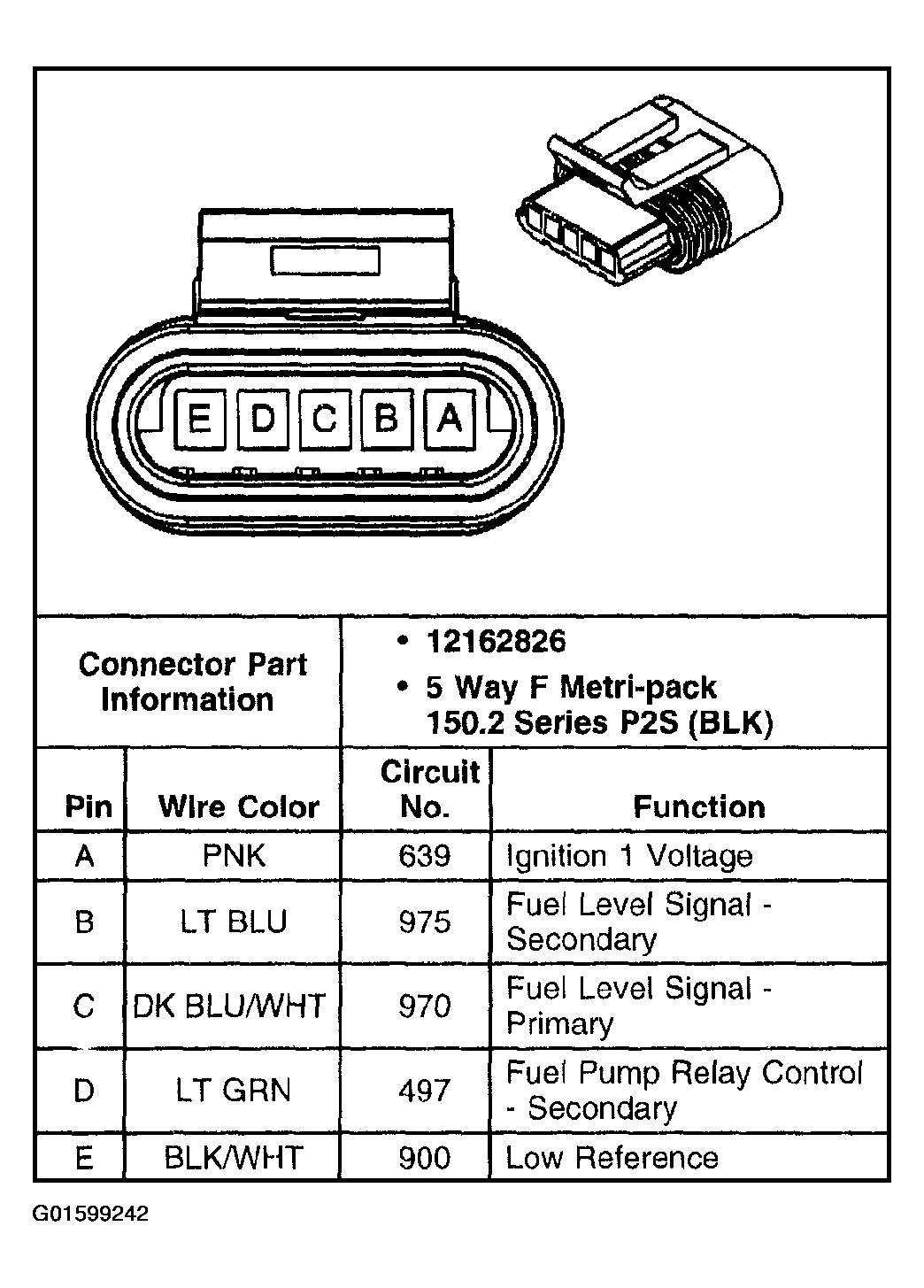

Fig 16: Fuel Balance Pump Module - C1 (Dual Tanks)
Courtesy of GENERAL MOTORS CORP.
Fig 17: Fuel Balance Pump Module - C2 (Dual Tanks)
Courtesy of GENERAL MOTORS CORP.

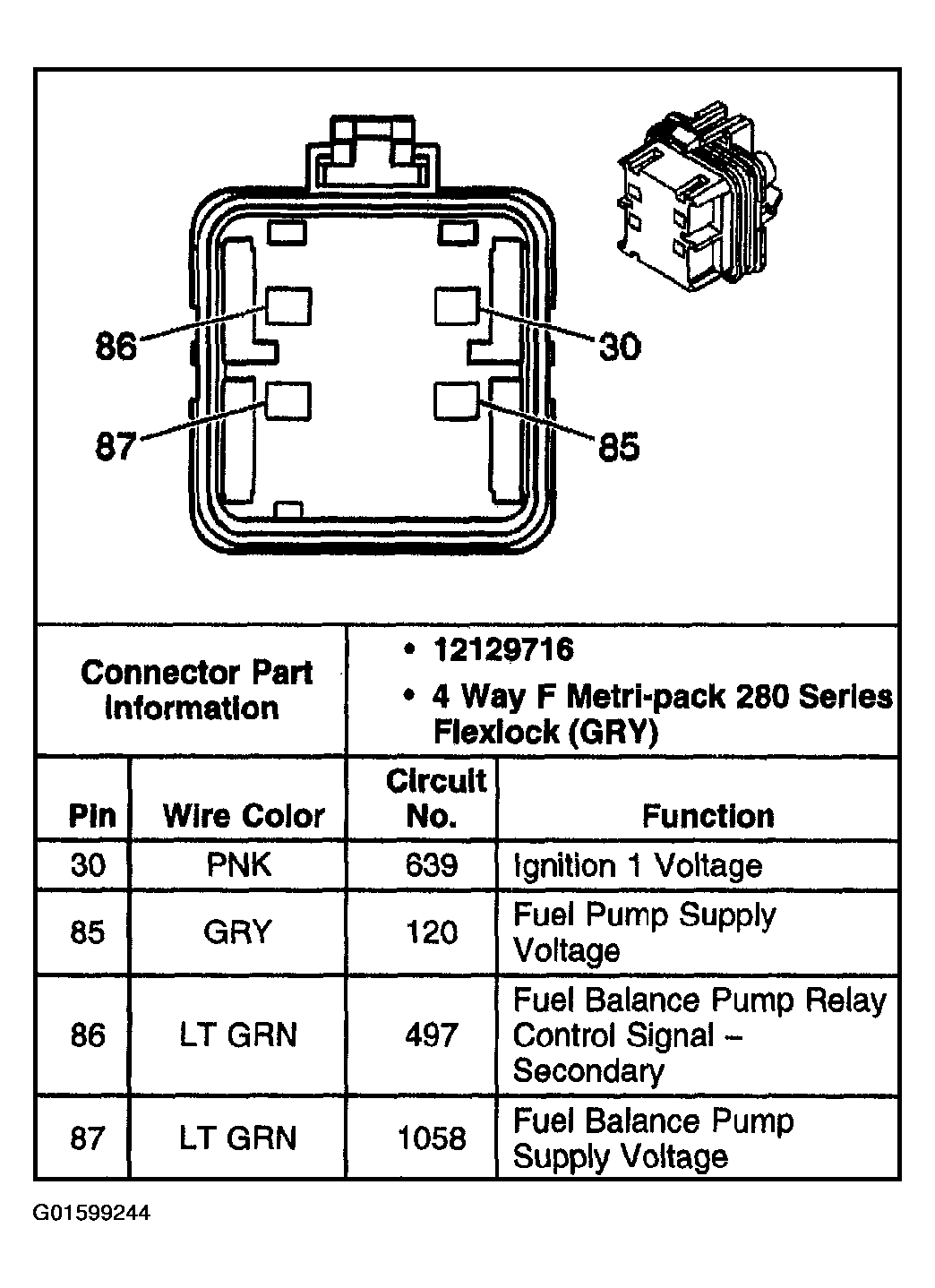

Fig 18: Fuel Balance Pump Relay (Dual Tanks)
Courtesy of GENERAL MOTORS CORP.

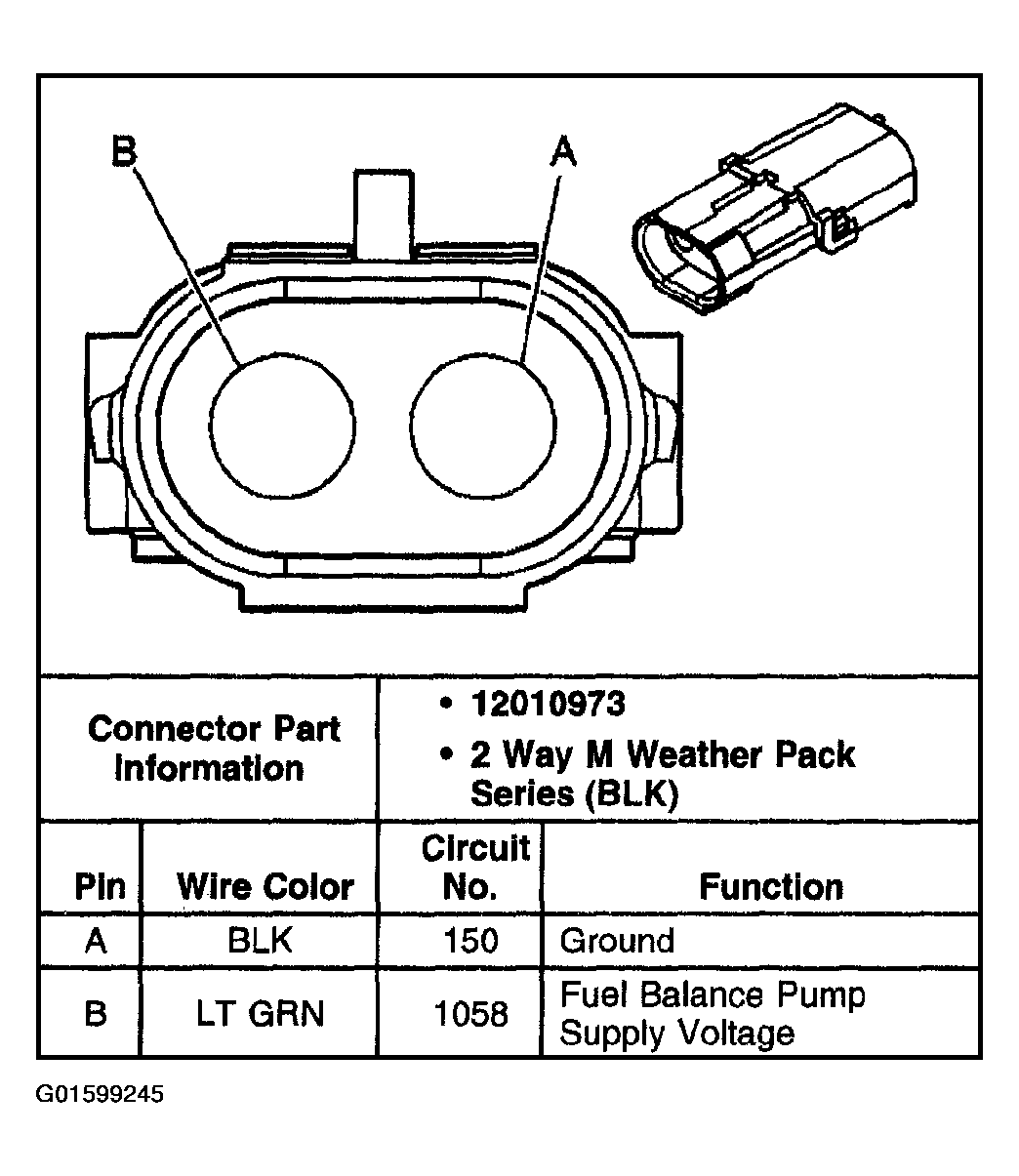

Fig 19: Fuel Balance Pump (Dual Tanks)
Courtesy of GENERAL MOTORS CORP.

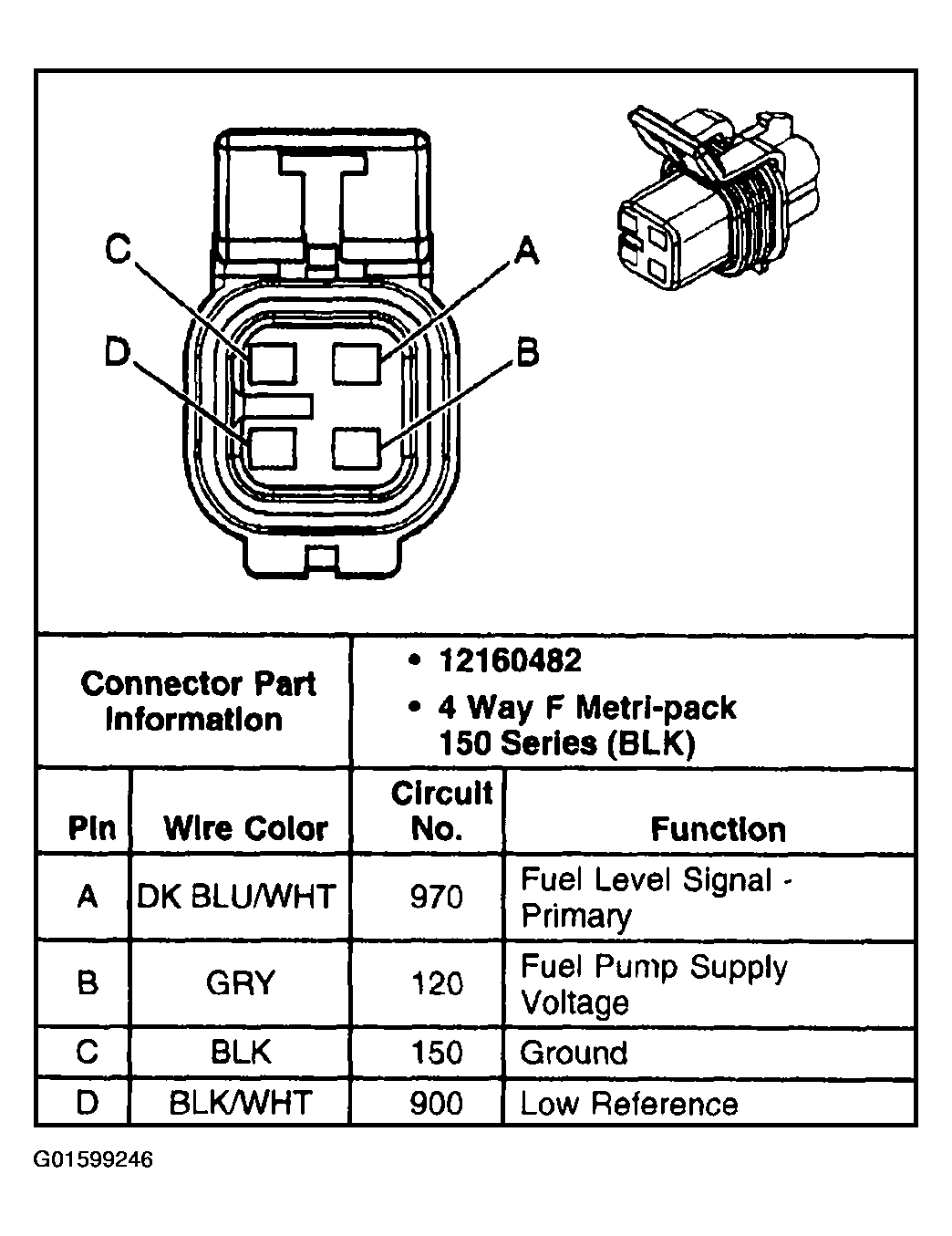

Fig 20: Fuel Pump & Sender - Primary (Dual Tanks)
Courtesy of GENERAL MOTORS CORP.

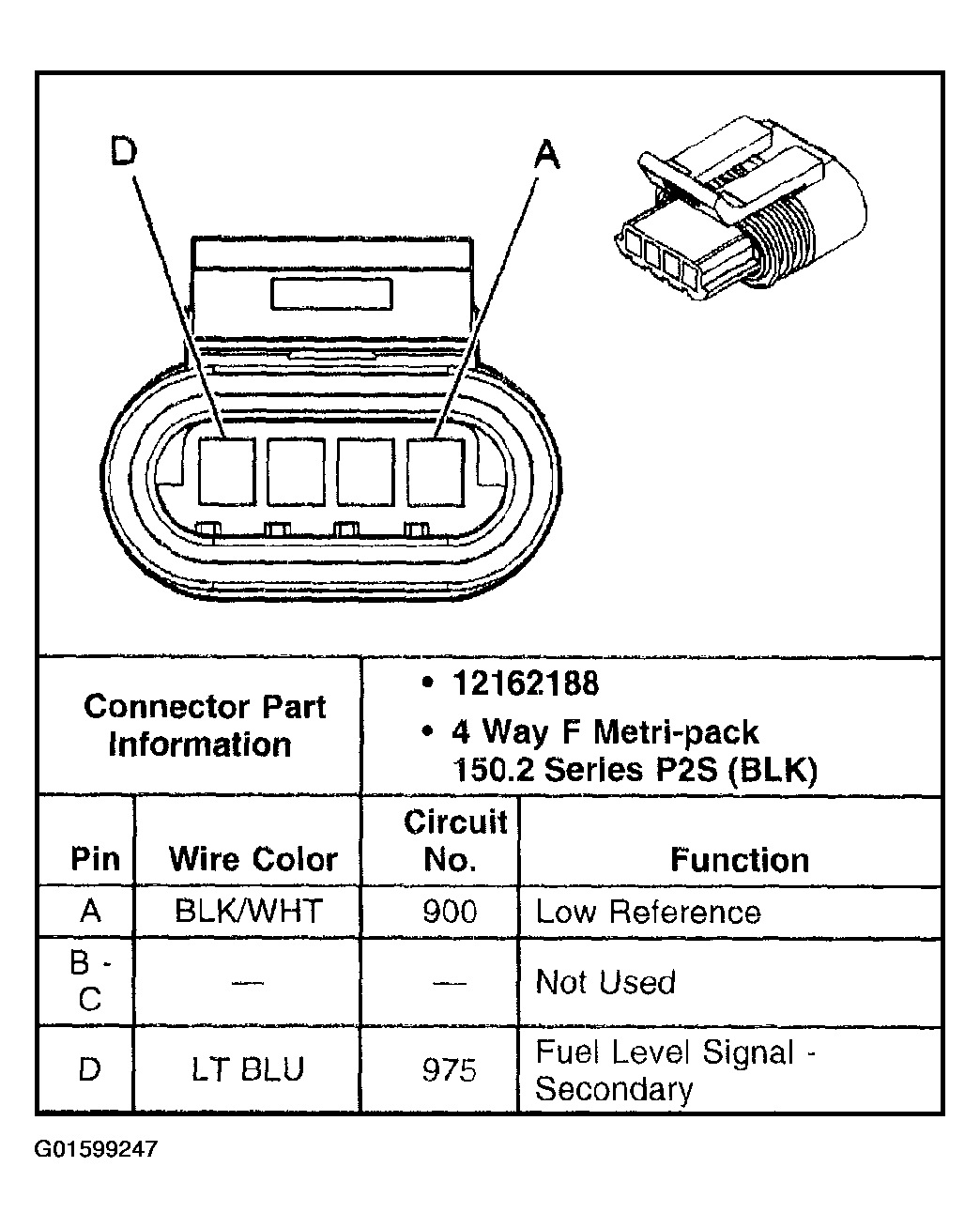

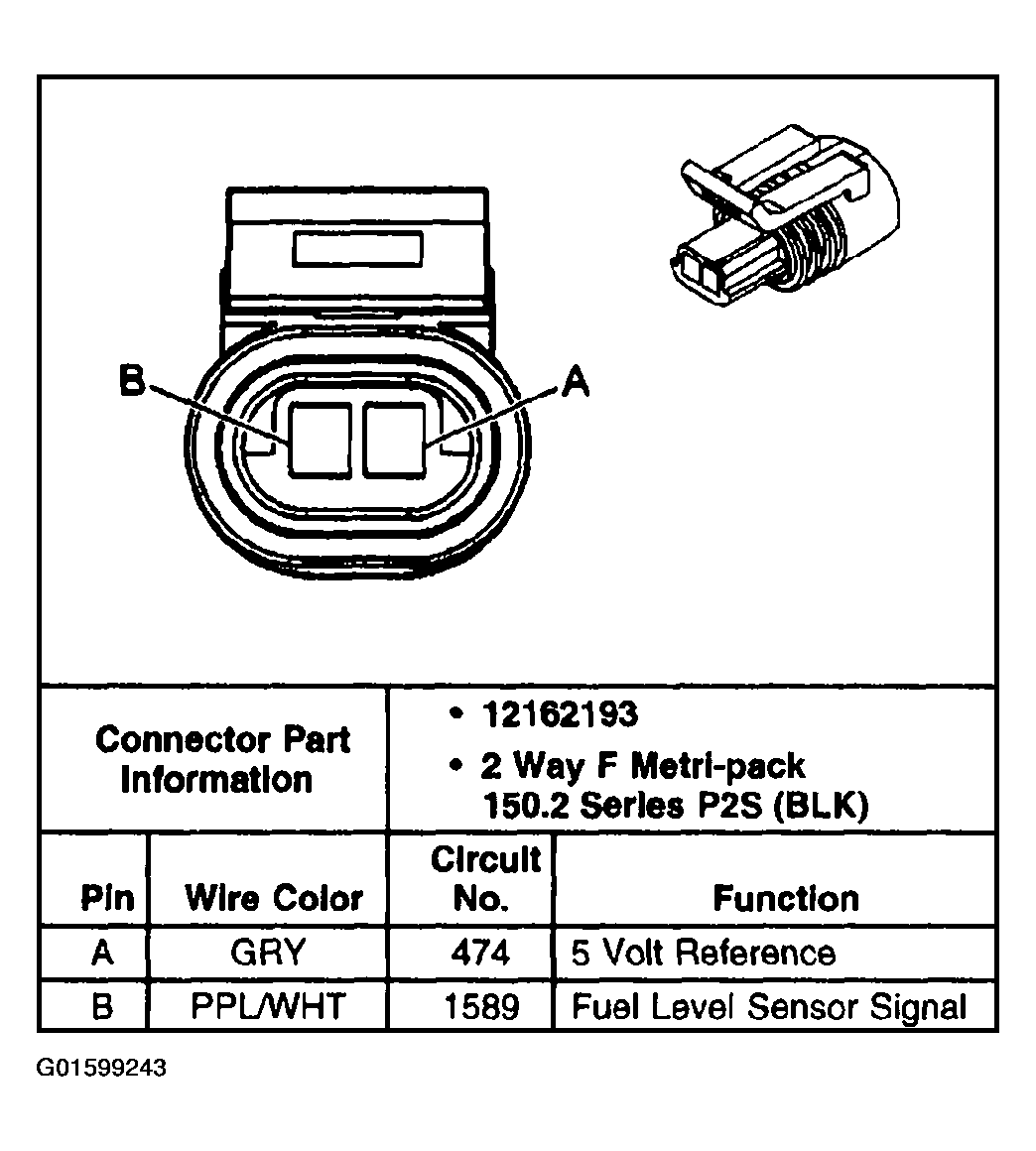

Fig 21: Fuel Level Sender - Secondary - Dual Tanks (Dual Tanks)
Courtesy of GENERAL MOTORS CORP.

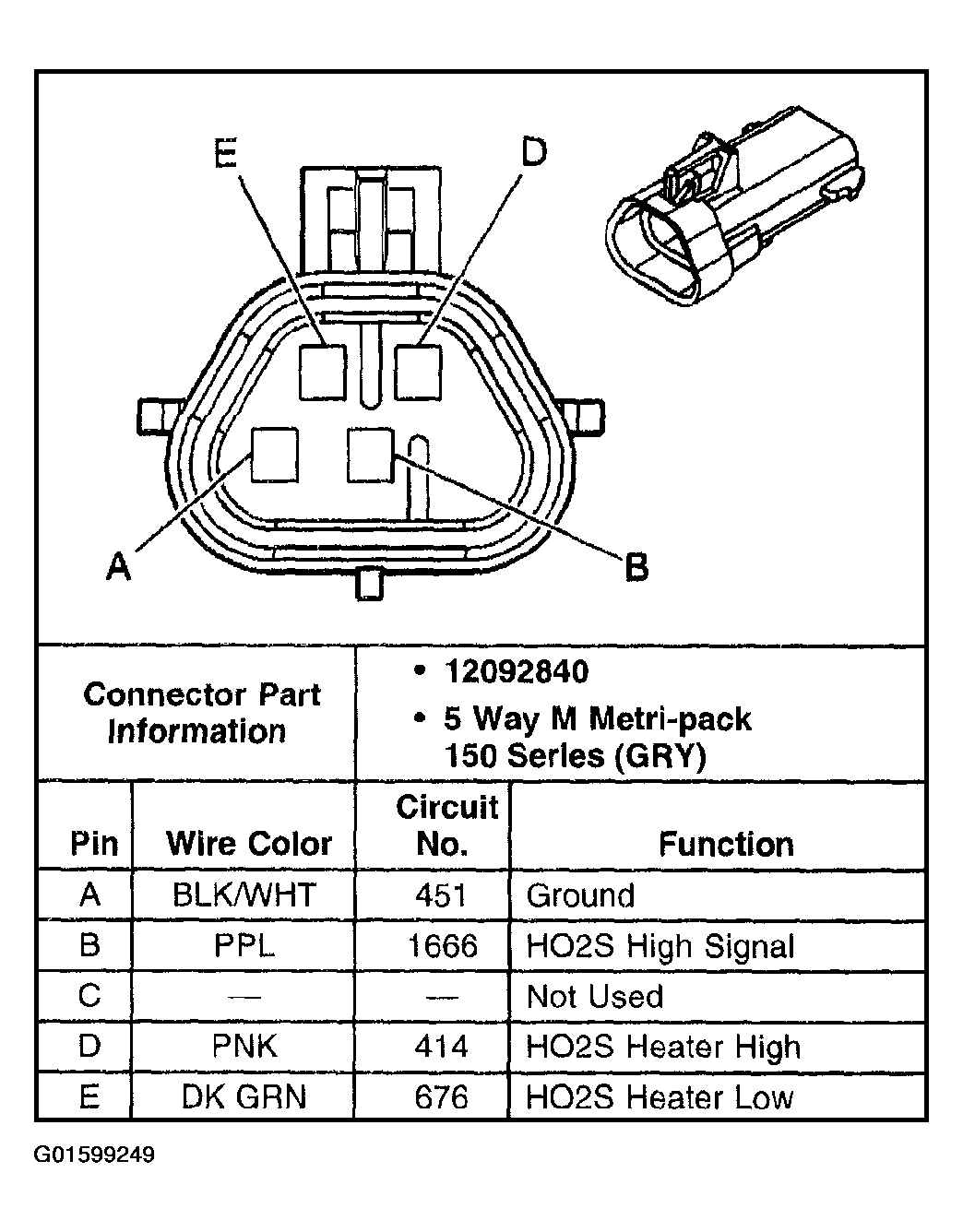

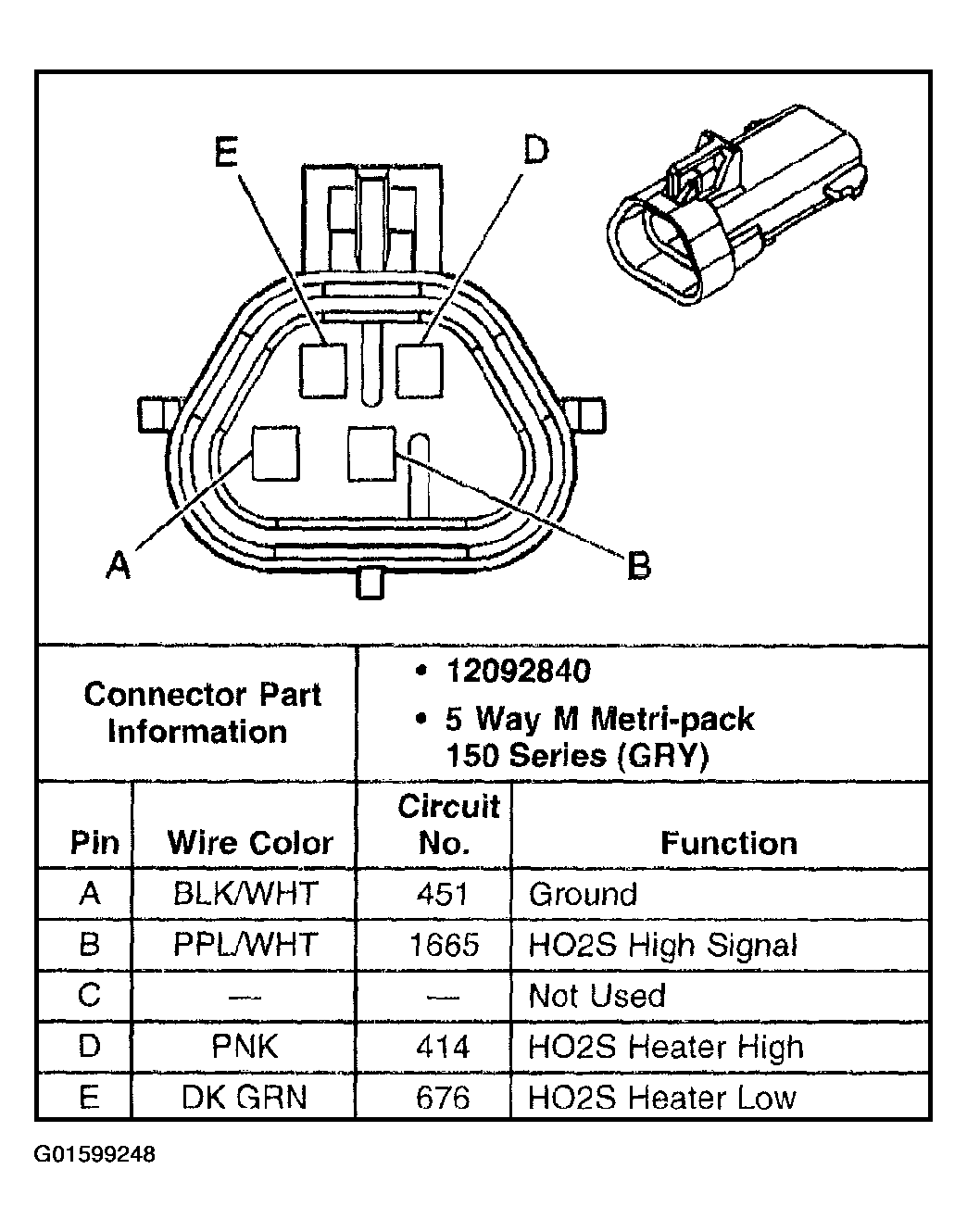

Fig 22: Heated Oxygen Sensor (HO2S) - Bank 1
Courtesy of GENERAL MOTORS CORP.
Fig 23: Heated Oxygen Sensor (HO2S) - Bank 2
Courtesy of GENERAL MOTORS CORP.

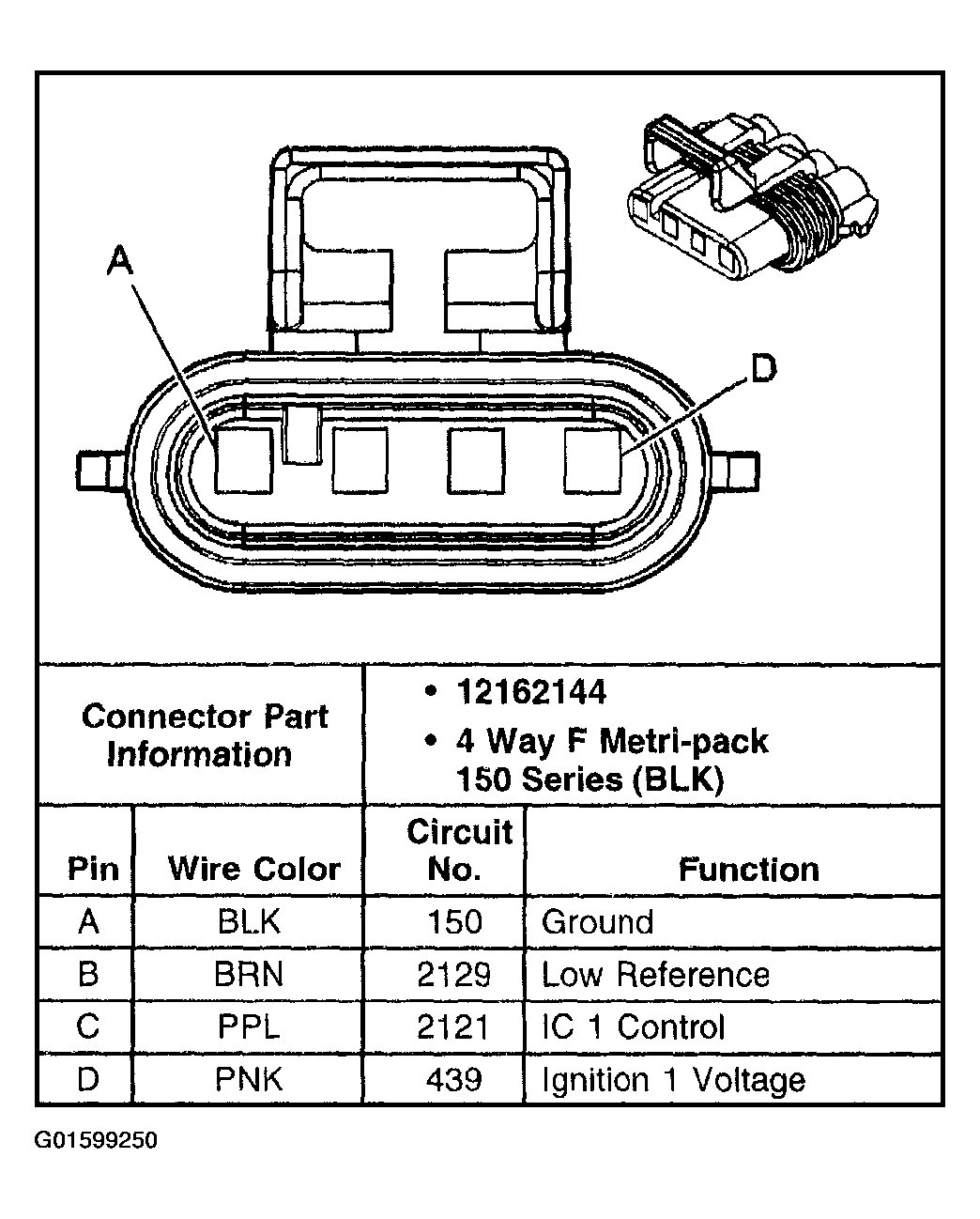

Fig 24: Ignition Coil 1
Courtesy of GENERAL MOTORS CORP.
Fig 25: Ignition Coil 2
Courtesy of GENERAL MOTORS CORP.

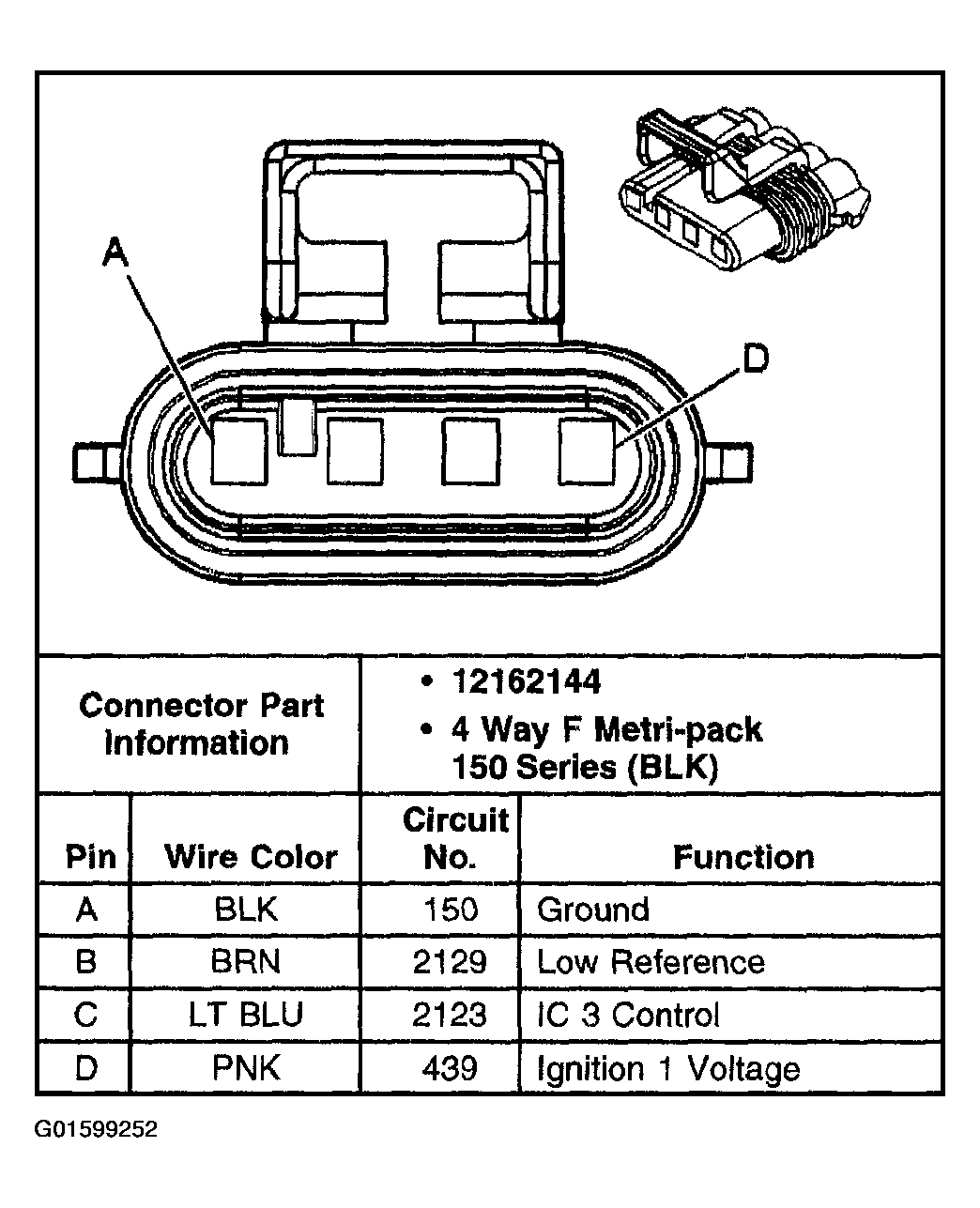

Fig 26: Ignition Coil 3
Courtesy of GENERAL MOTORS CORP.

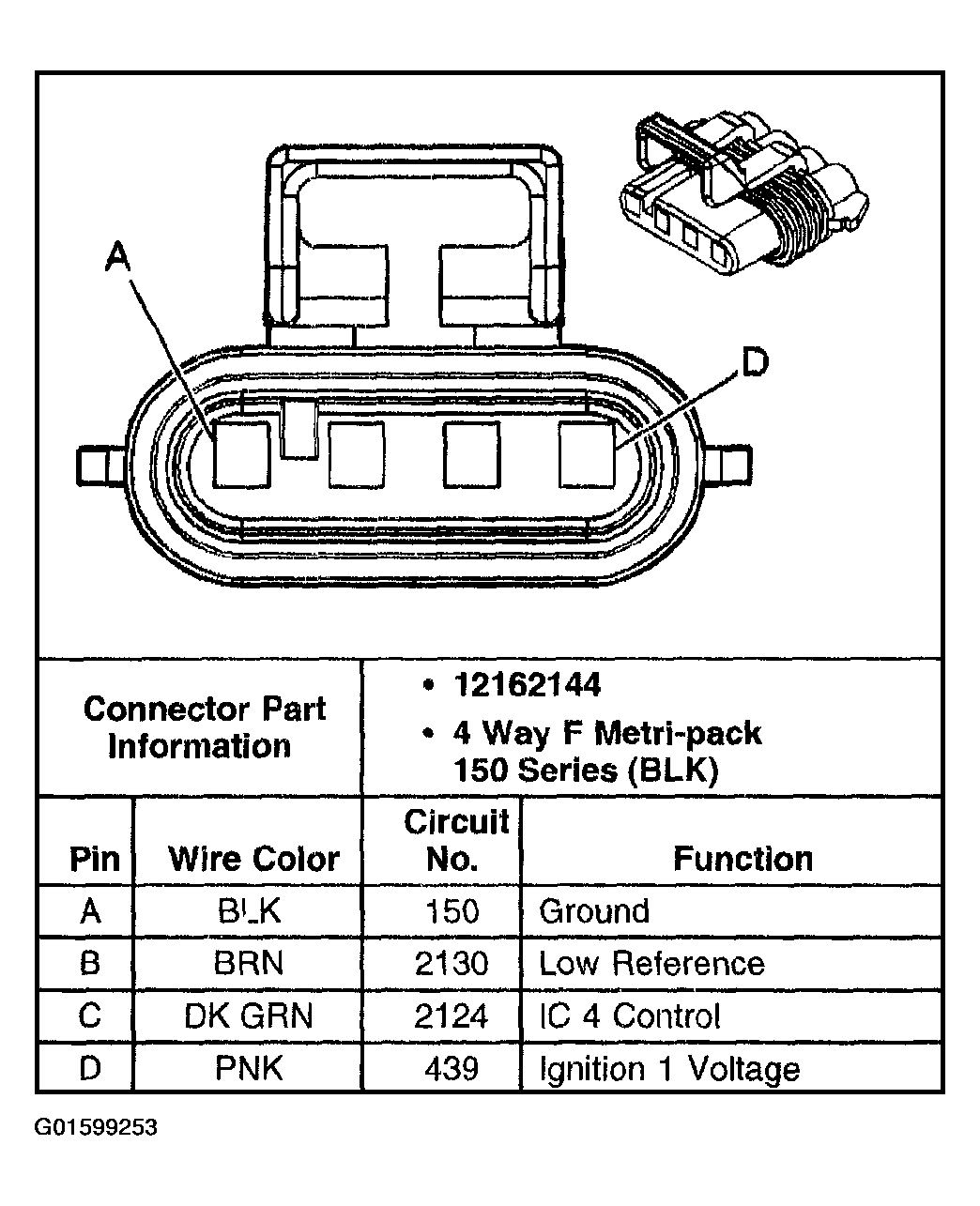

Fig 27: Ignition Coil 4
Courtesy of GENERAL MOTORS CORP.
Fig 28: Ignition Coil 5
Courtesy of GENERAL MOTORS CORP.

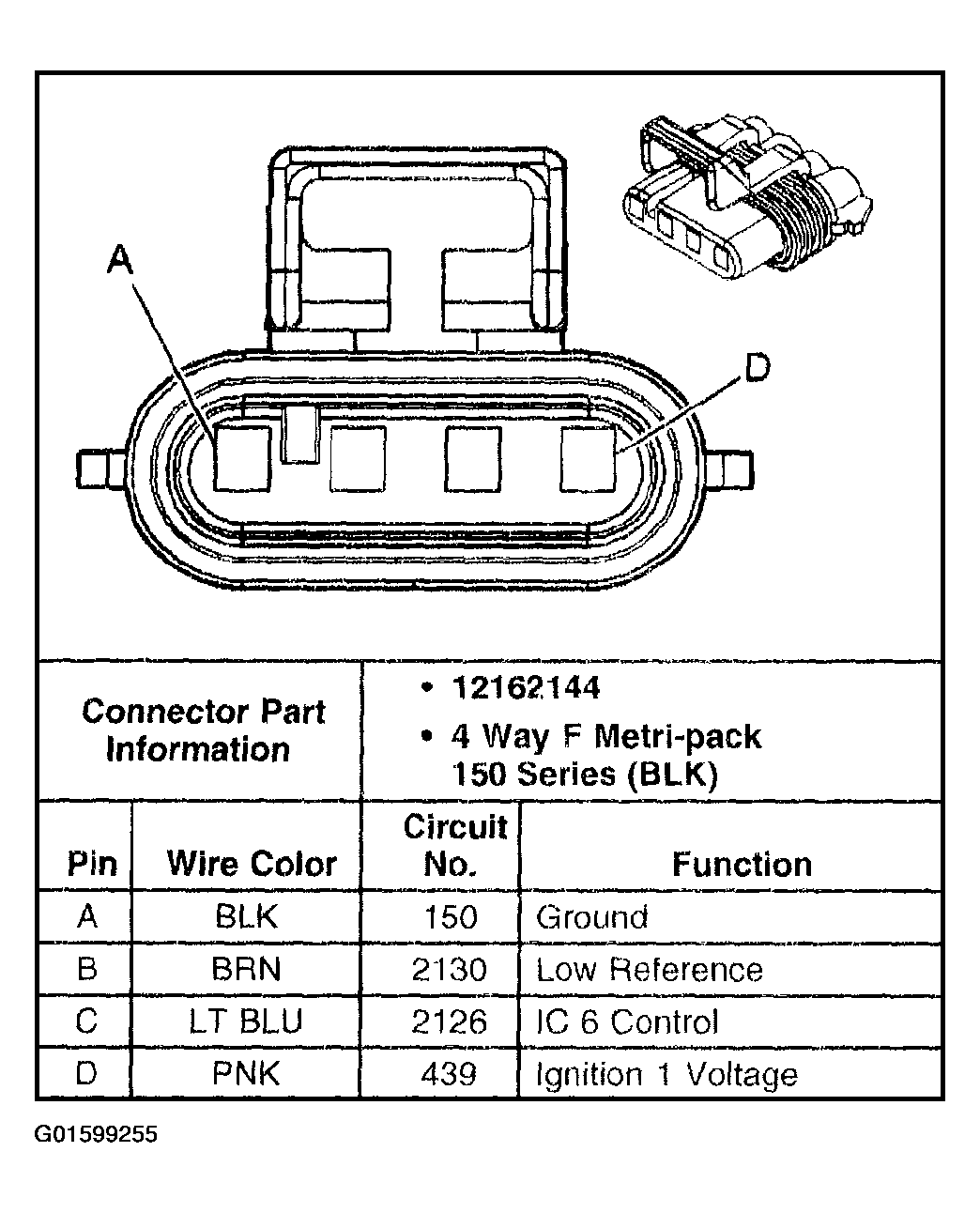

Fig 29: Ignition Coil 6
Courtesy of GENERAL MOTORS CORP.

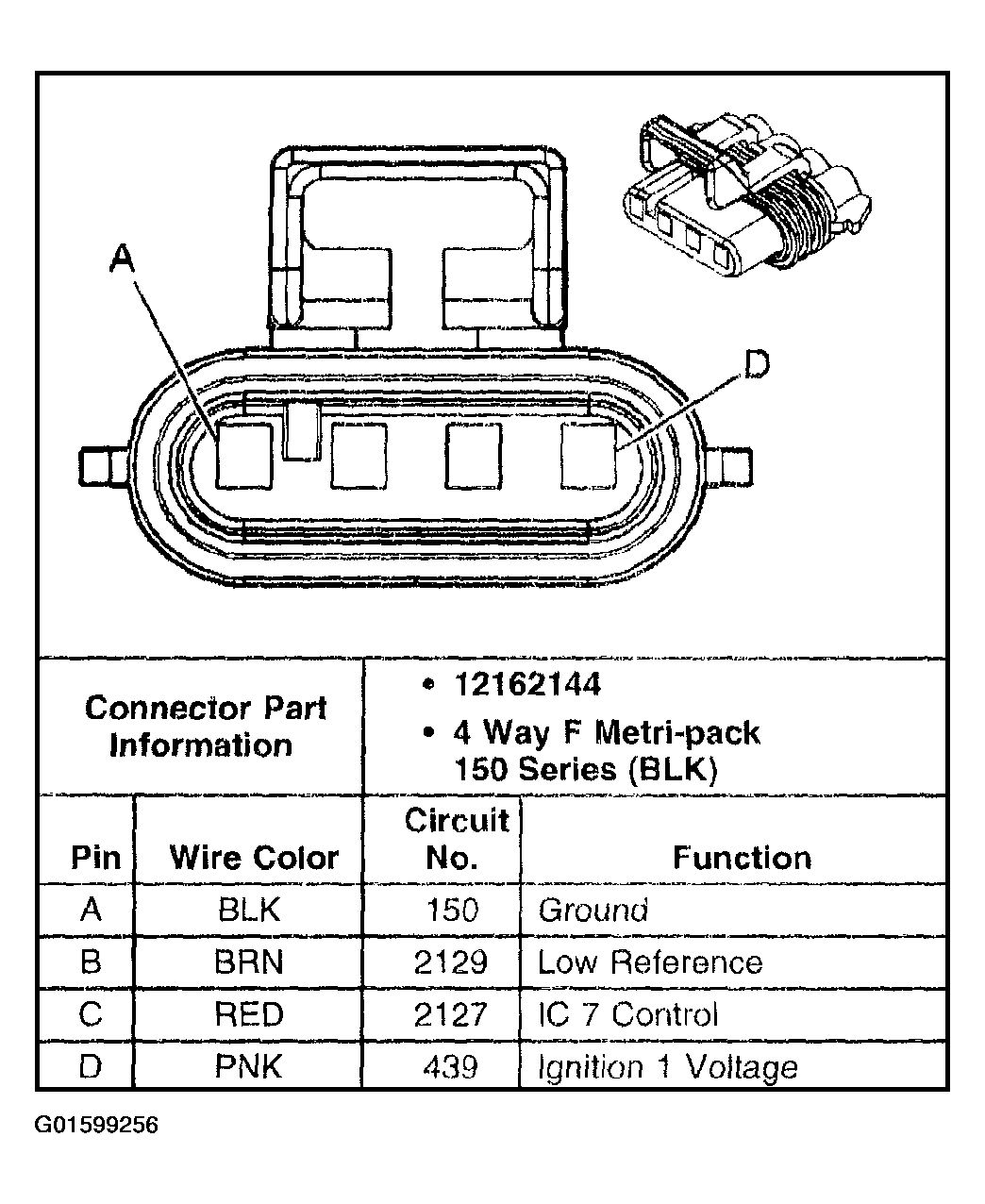

Fig 30: Ignition Coil 7
Courtesy of GENERAL MOTORS CORP.

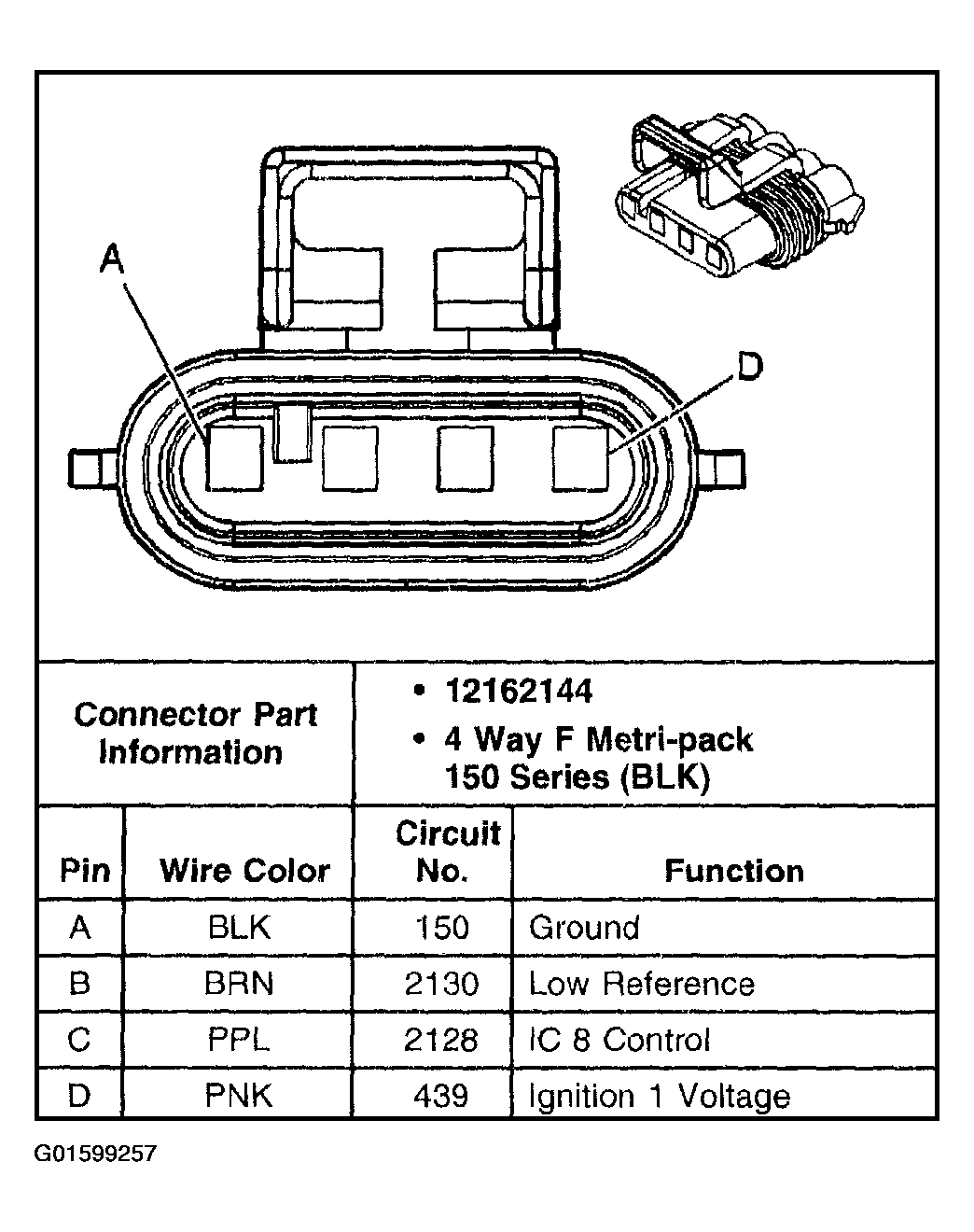

Fig 31: Ignition Coil 8
Courtesy of GENERAL MOTORS CORP.

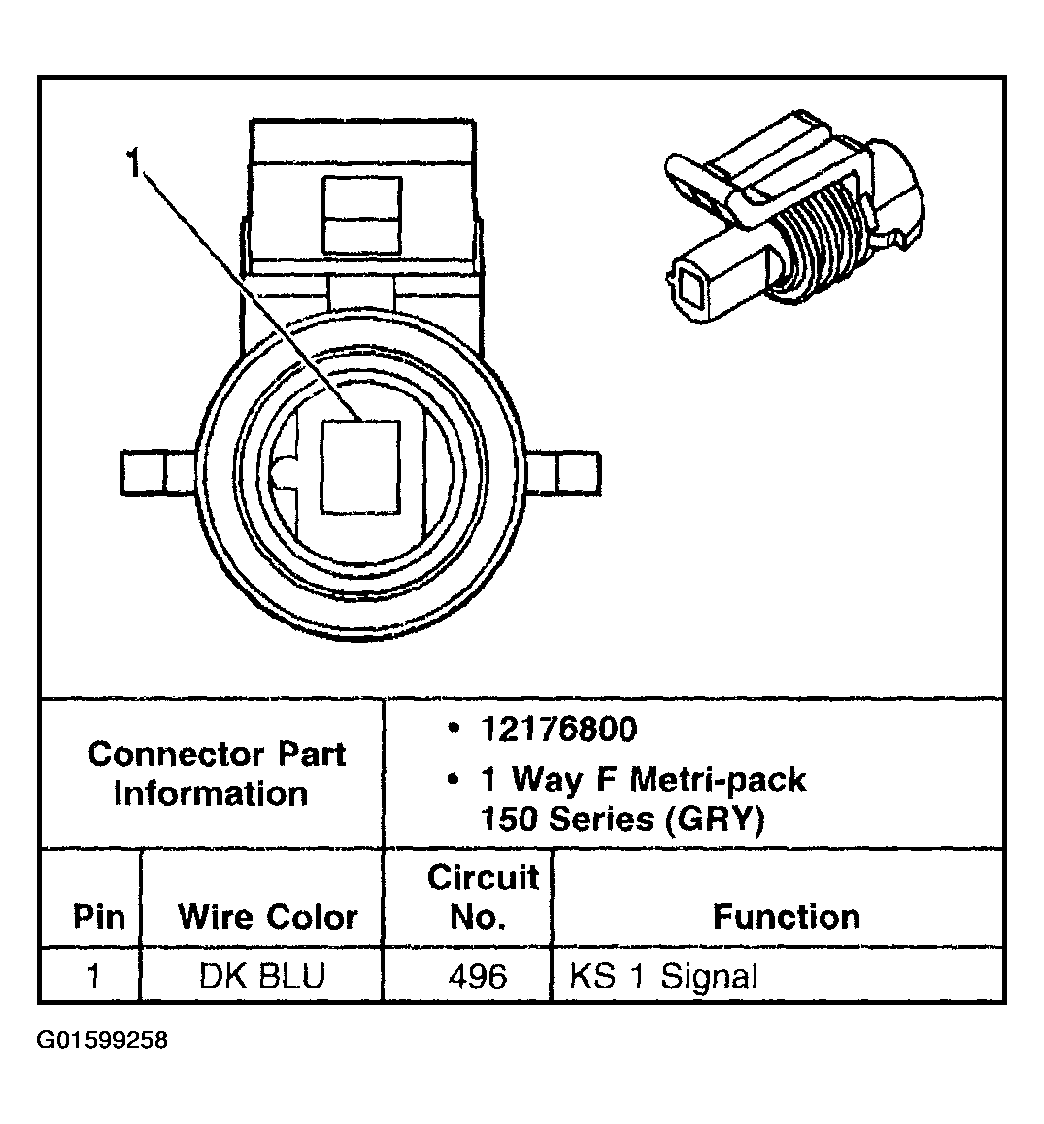

Fig 32: Knock Sensor (KS) - Bank 1
Courtesy of GENERAL MOTORS CORP.

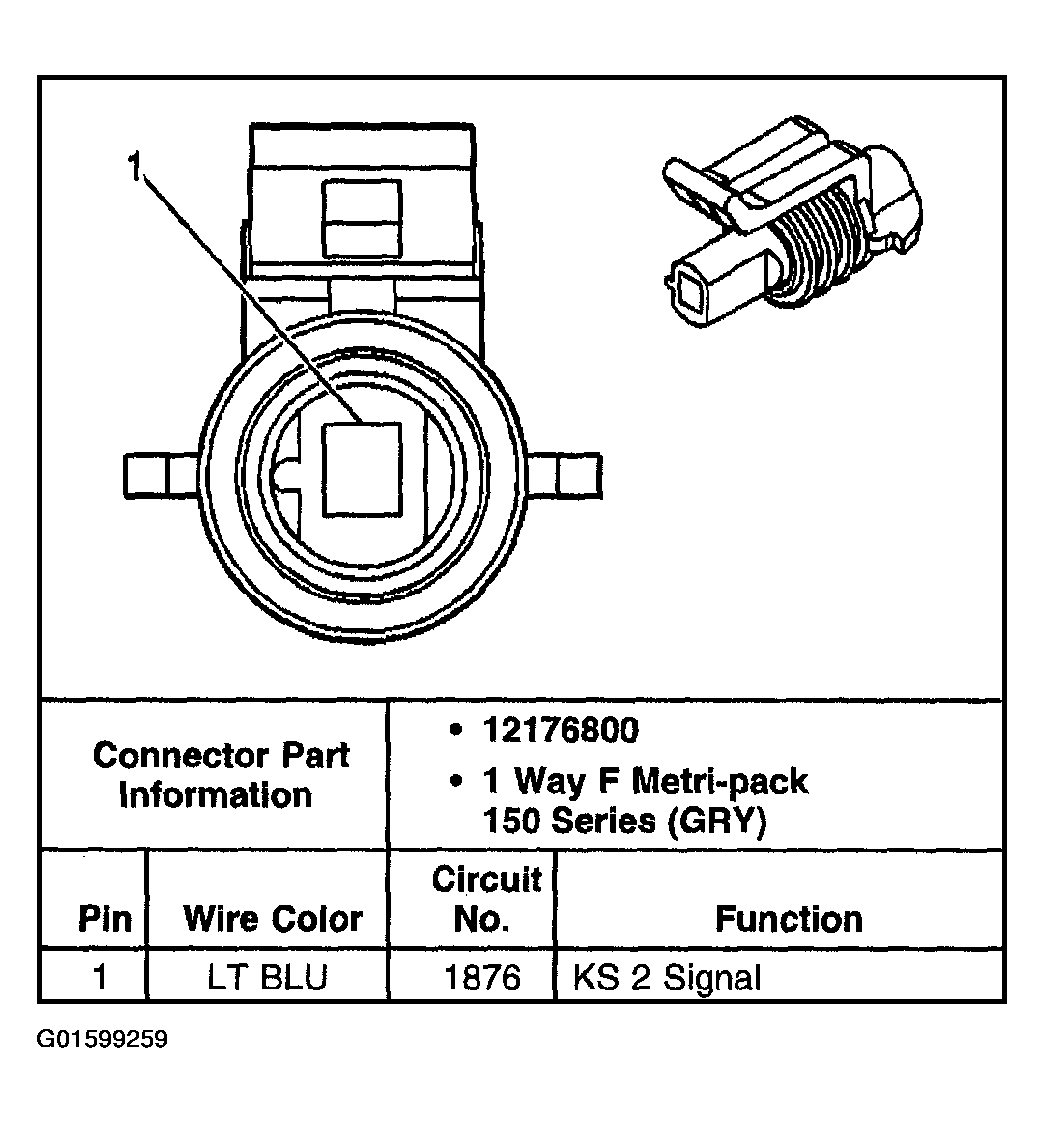

Fig 33: Knock Sensor (KS) - Bank 2
Courtesy of GENERAL MOTORS CORP.

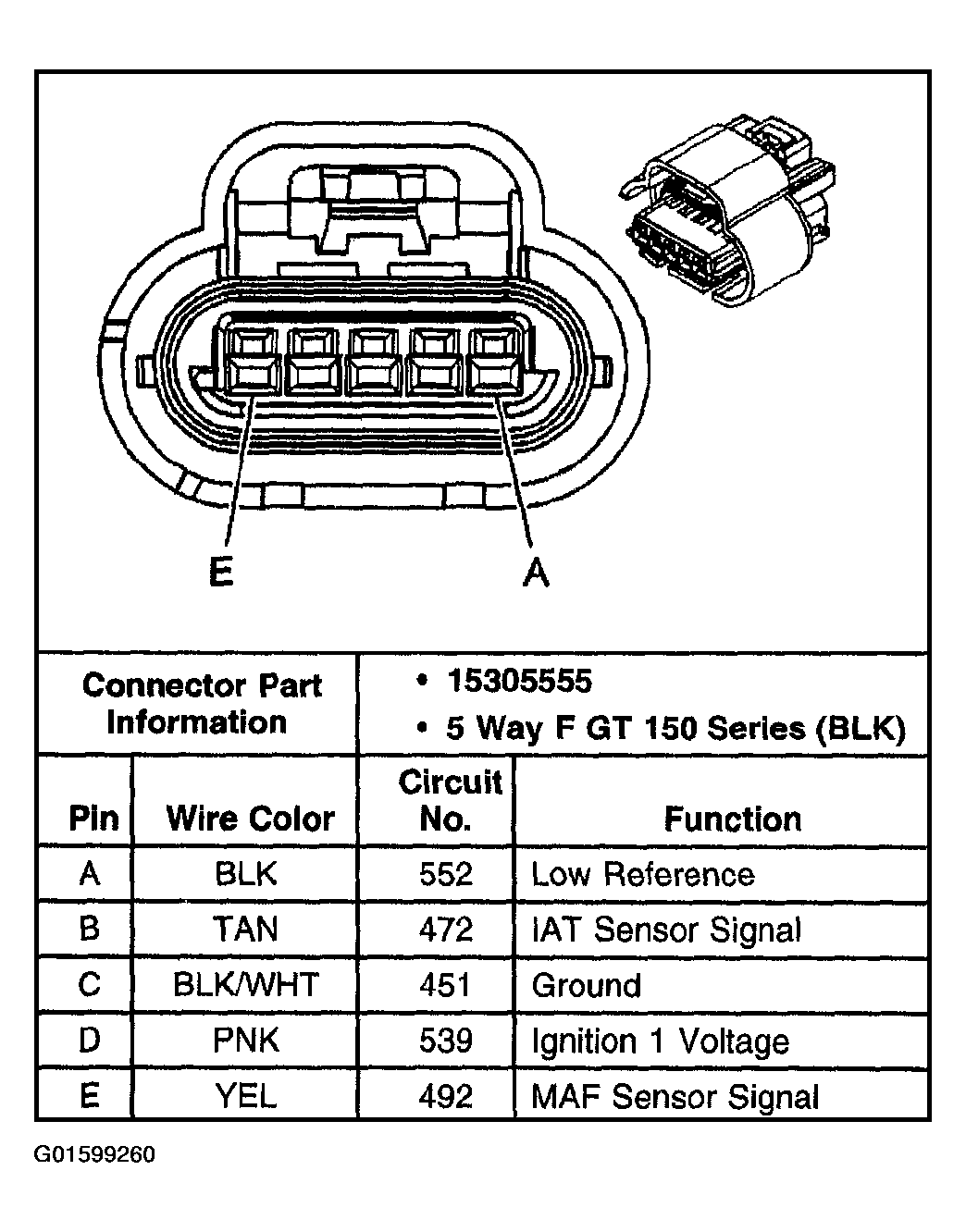

Fig 34: MAF & IAT Sensor
Courtesy of GENERAL MOTORS CORP.

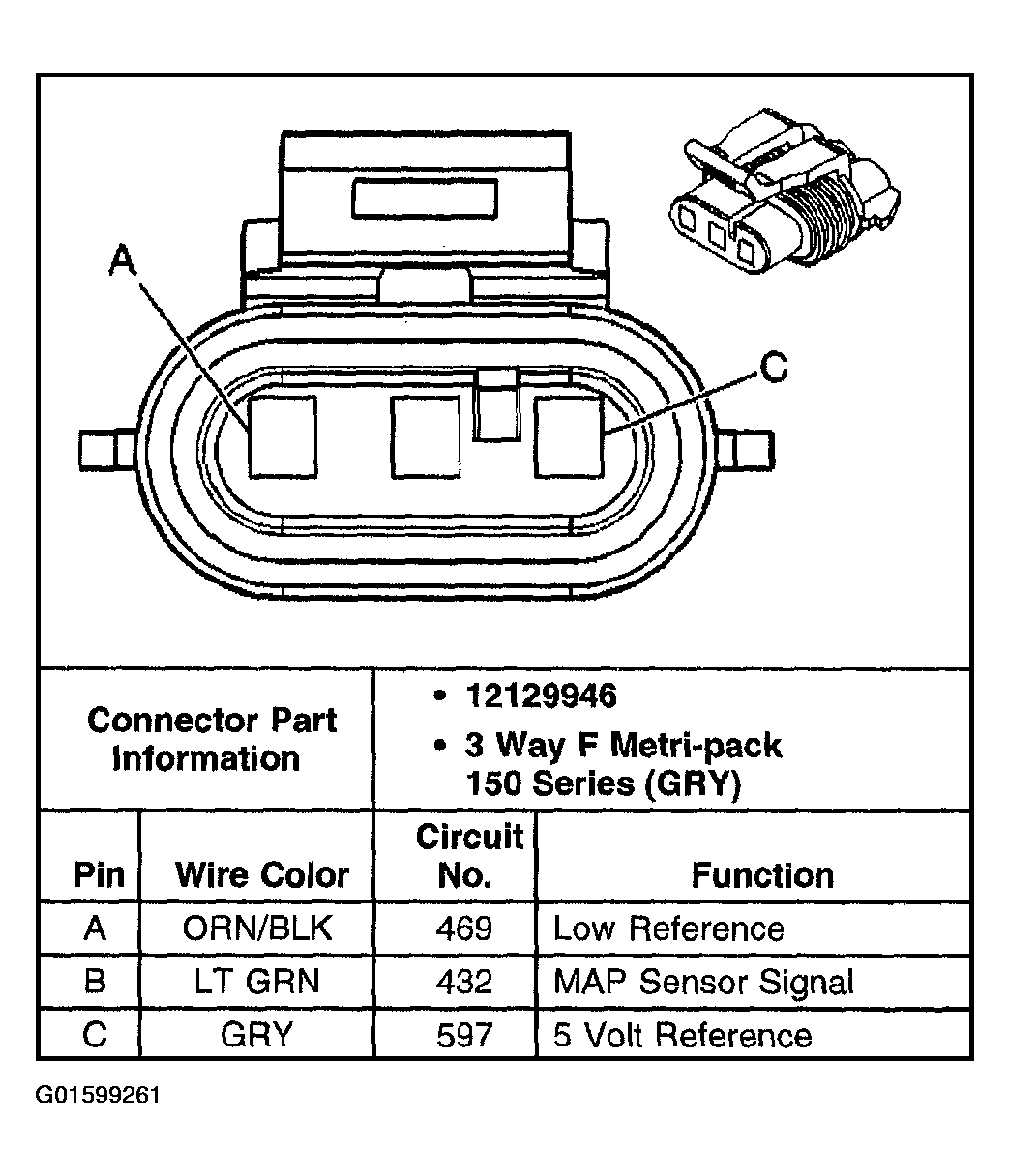

Fig 35: Manifold Absolute Pressure (MAP) Sensor
Courtesy of GENERAL MOTORS CORP.

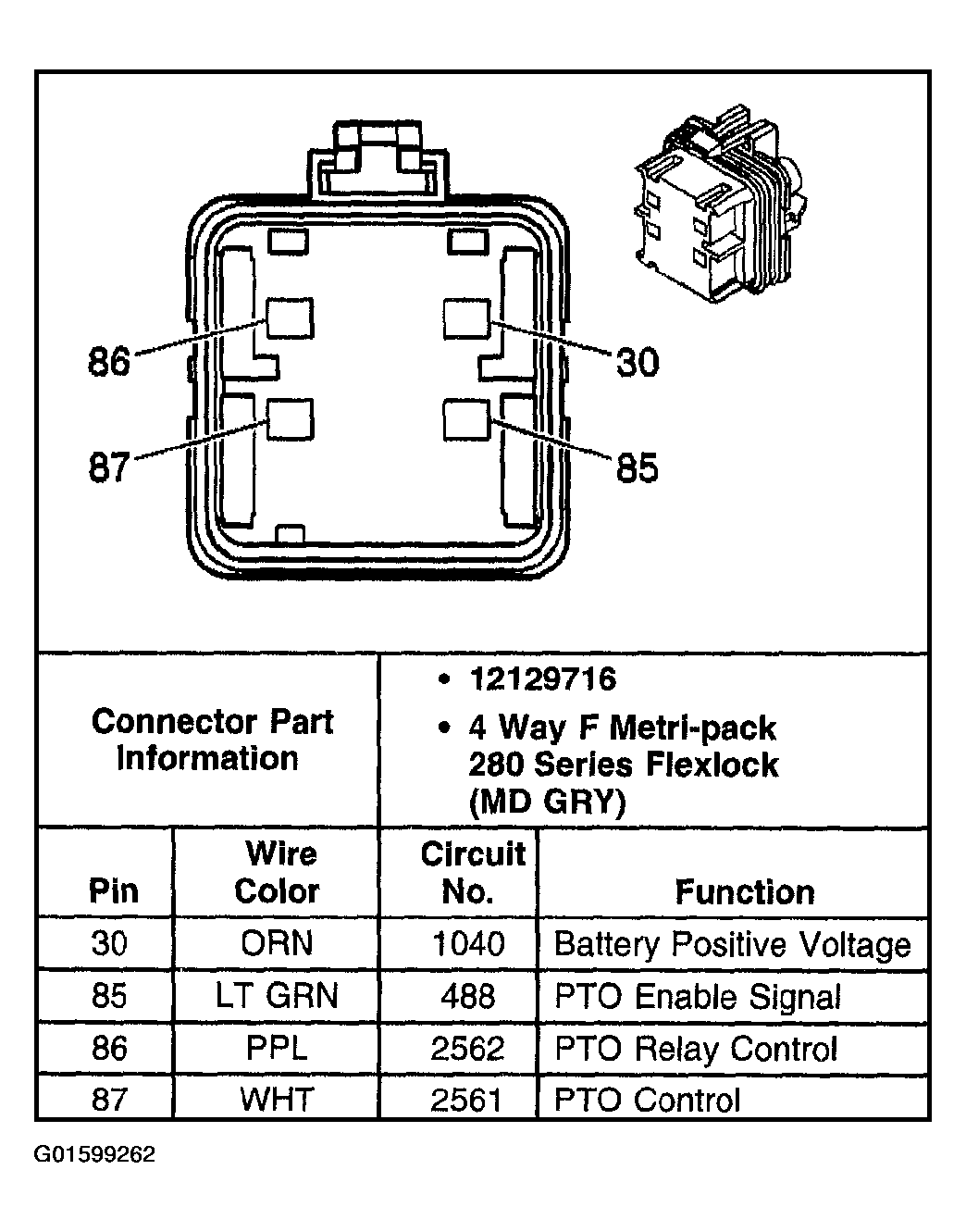

Fig 36: PTO Relay
Courtesy of GENERAL MOTORS CORP.

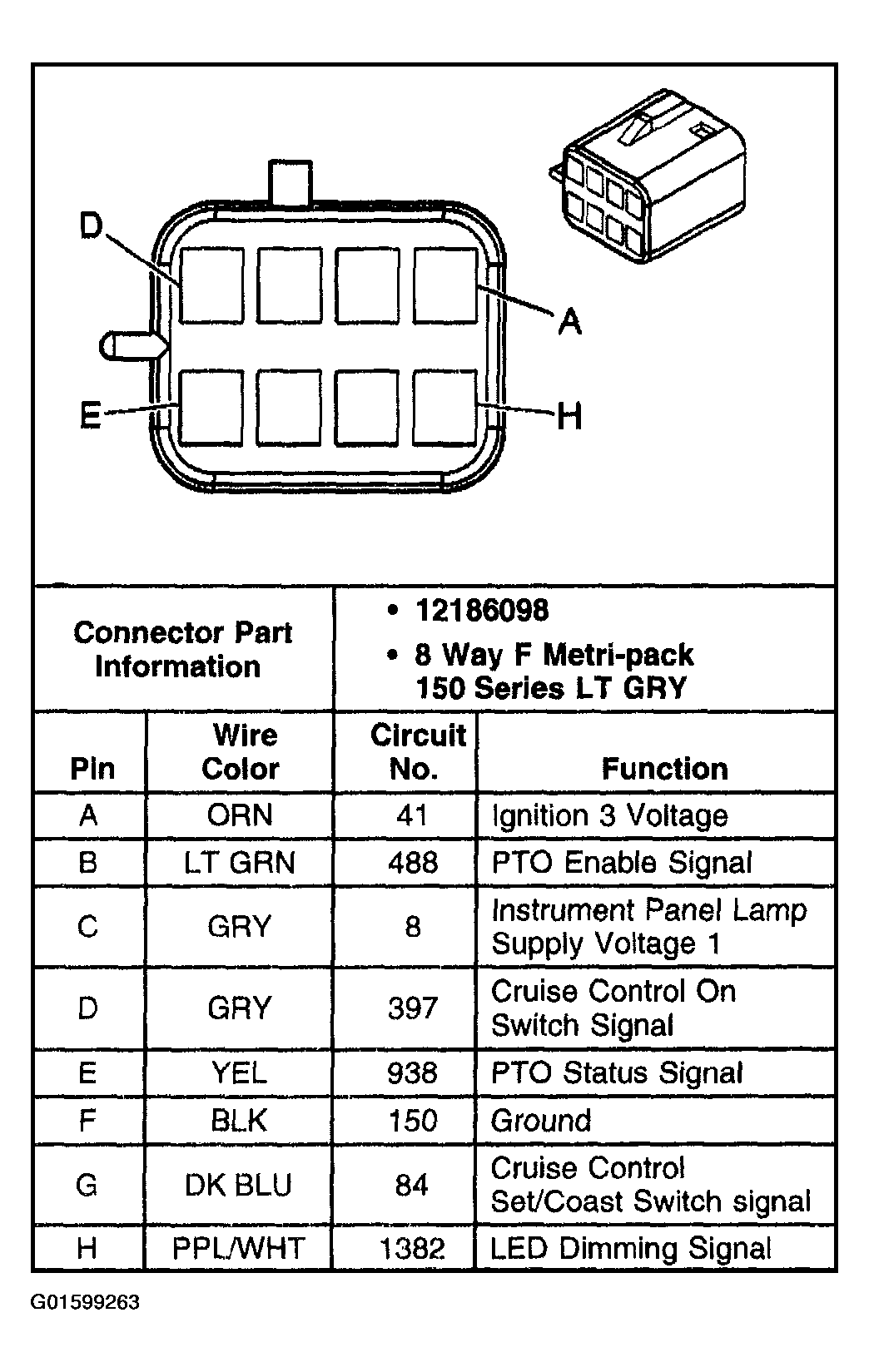

Fig 37: PTO Switch
Courtesy of GENERAL MOTORS CORP.

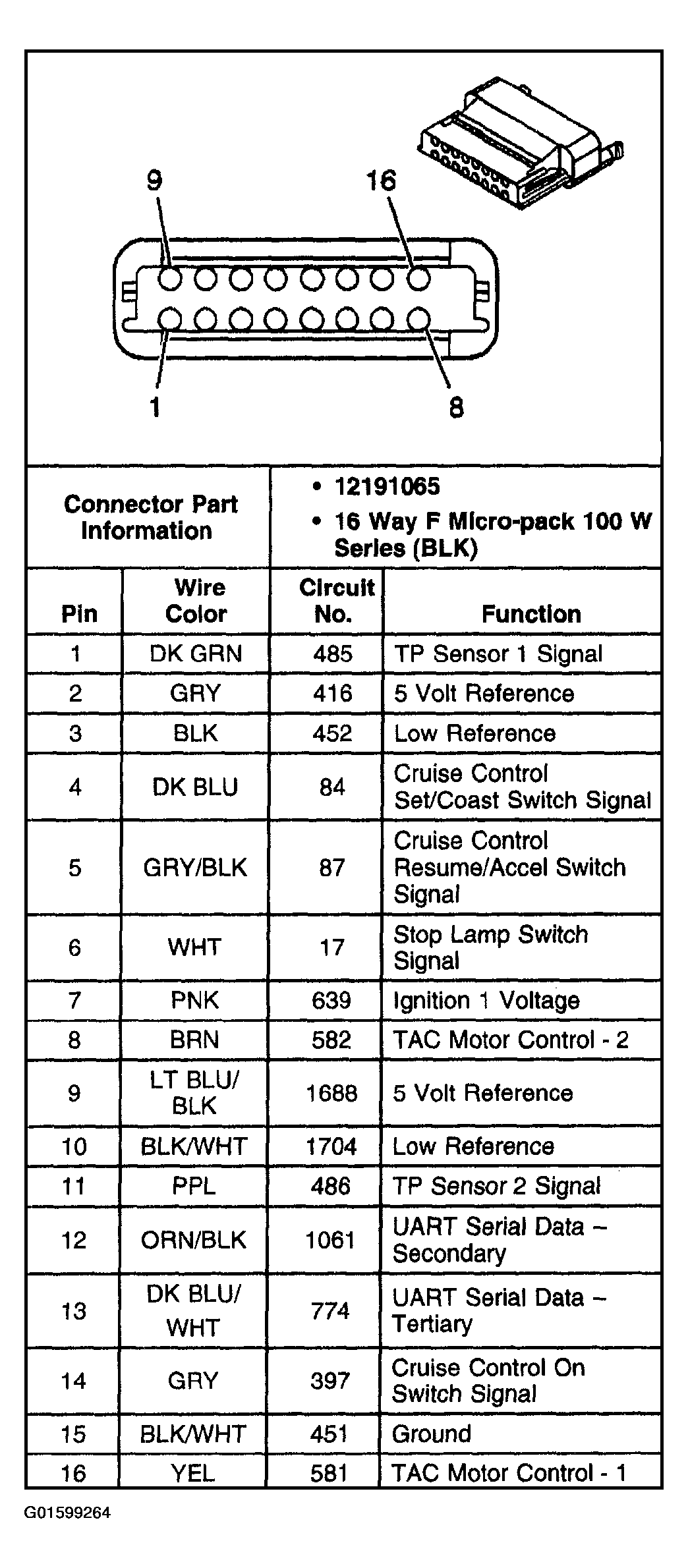

Fig 38: Throttle Actuator Control (TAC) Module - C1
Courtesy of GENERAL MOTORS CORP.
Fig 39: Throttle Actuator Control (TAC) Module - C2
Courtesy of GENERAL MOTORS CORP.
Fig 40: Throttle Actuator Control Motor
Courtesy of GENERAL MOTORS CORP.

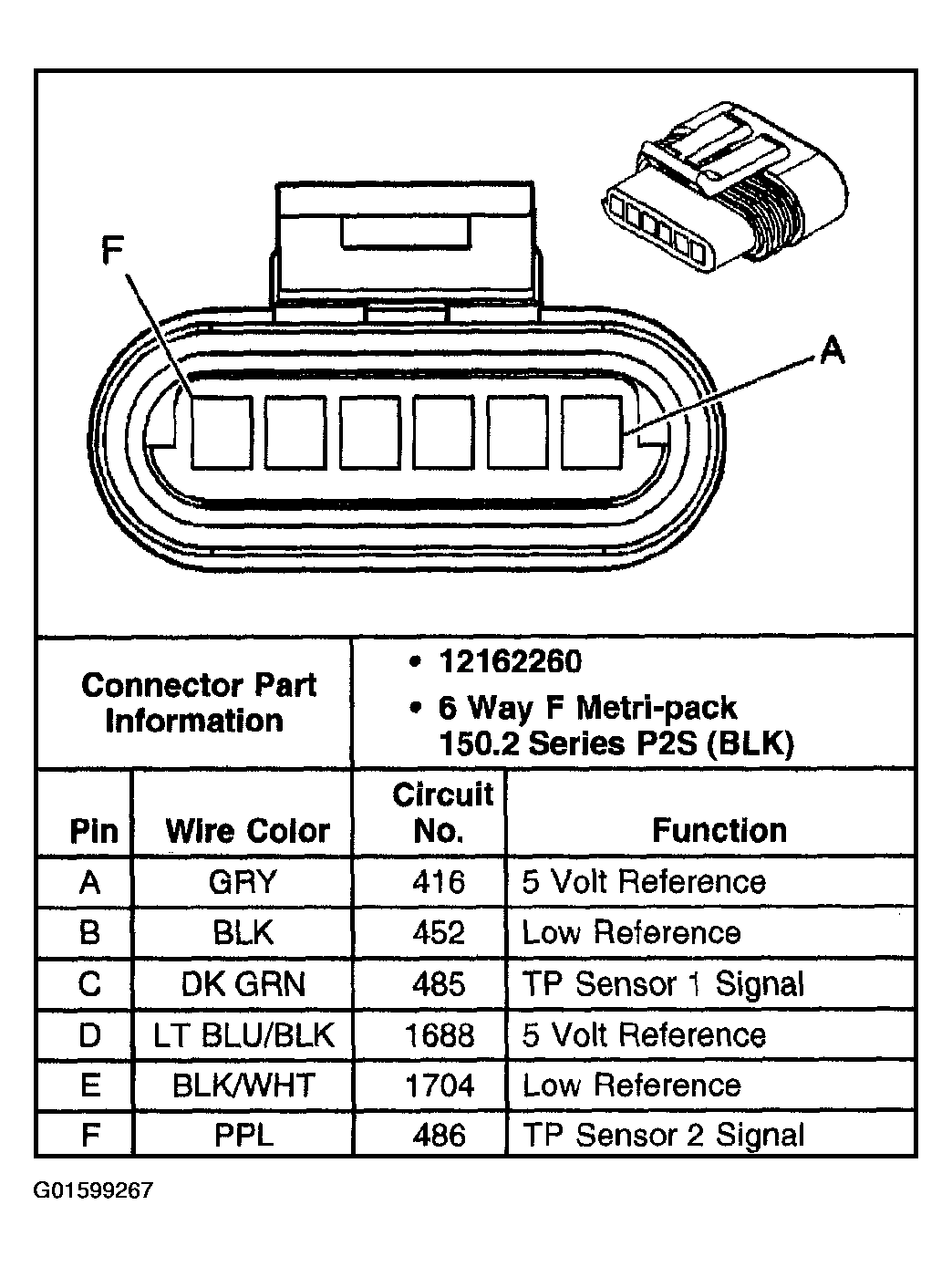

Fig 41: Throttle Position (TP) Sensor
Courtesy of GENERAL MOTORS CORP.

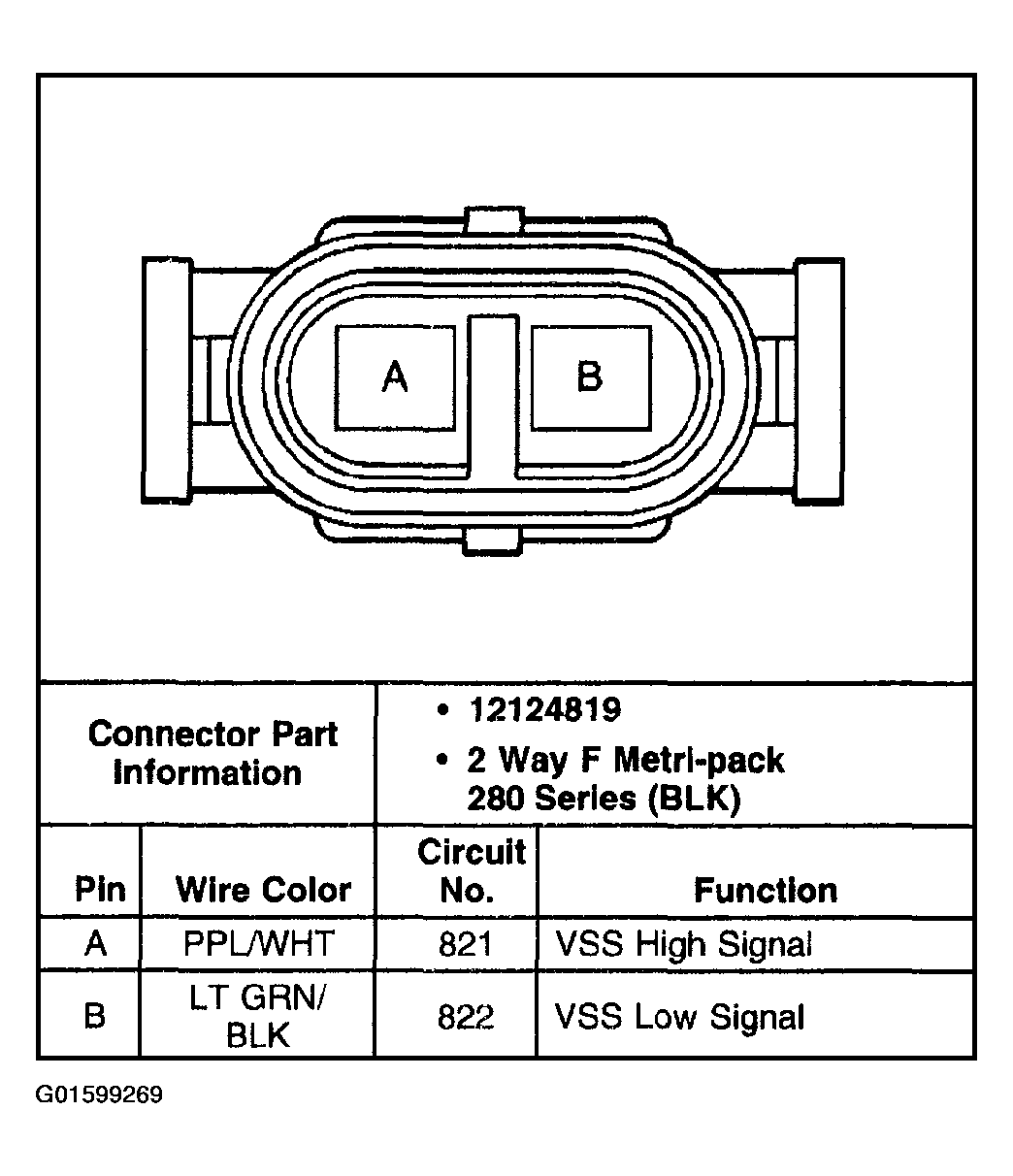

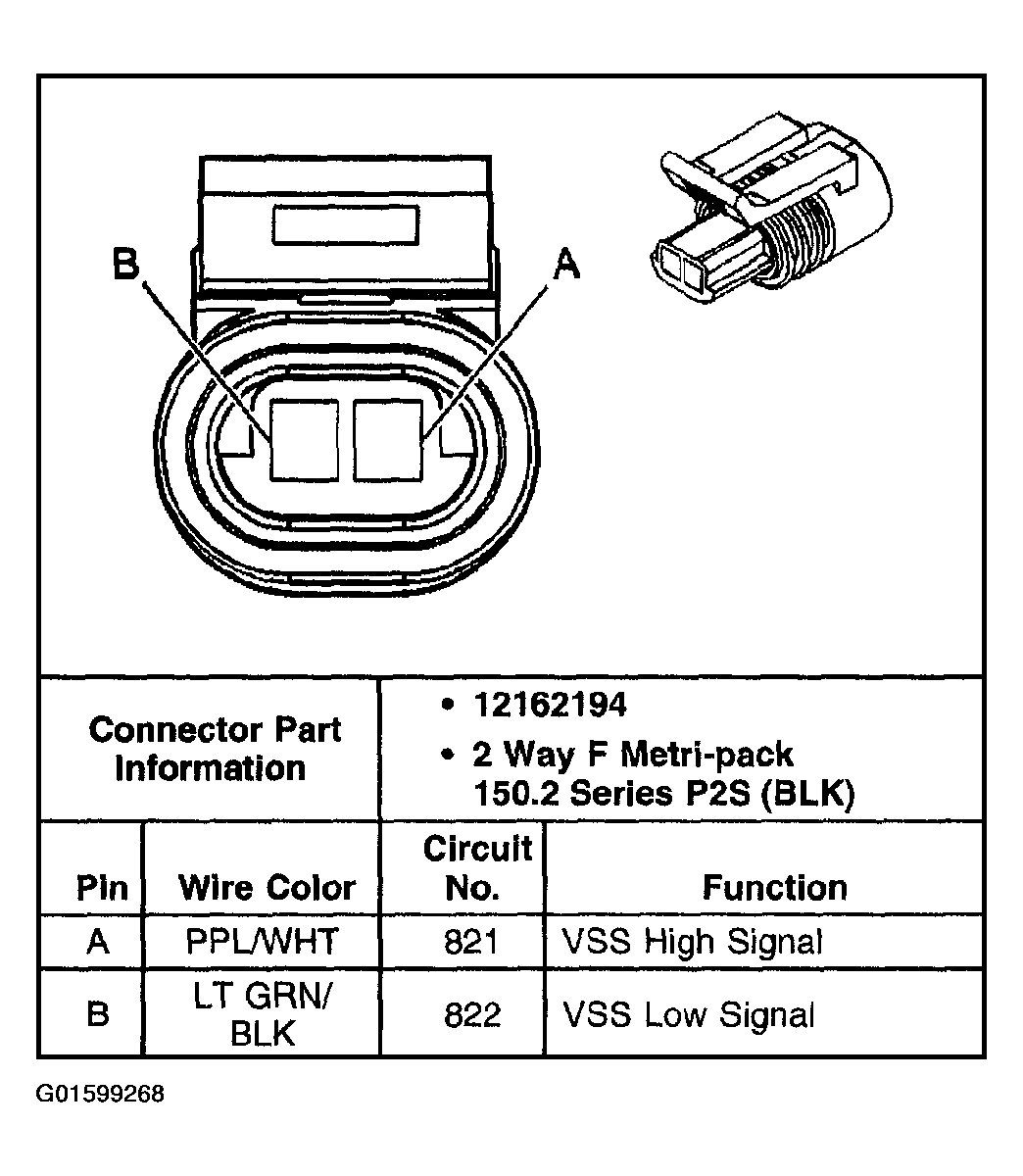

Fig 42: Vehicle Speed Sensor (VSS) - A/T
Courtesy of GENERAL MOTORS CORP.
Fig 43: Vehicle Speed Sensor (VSS) - M/T
Courtesy of GENERAL MOTORS CORP.
