Scan Tool Output Controls - Engine Controls

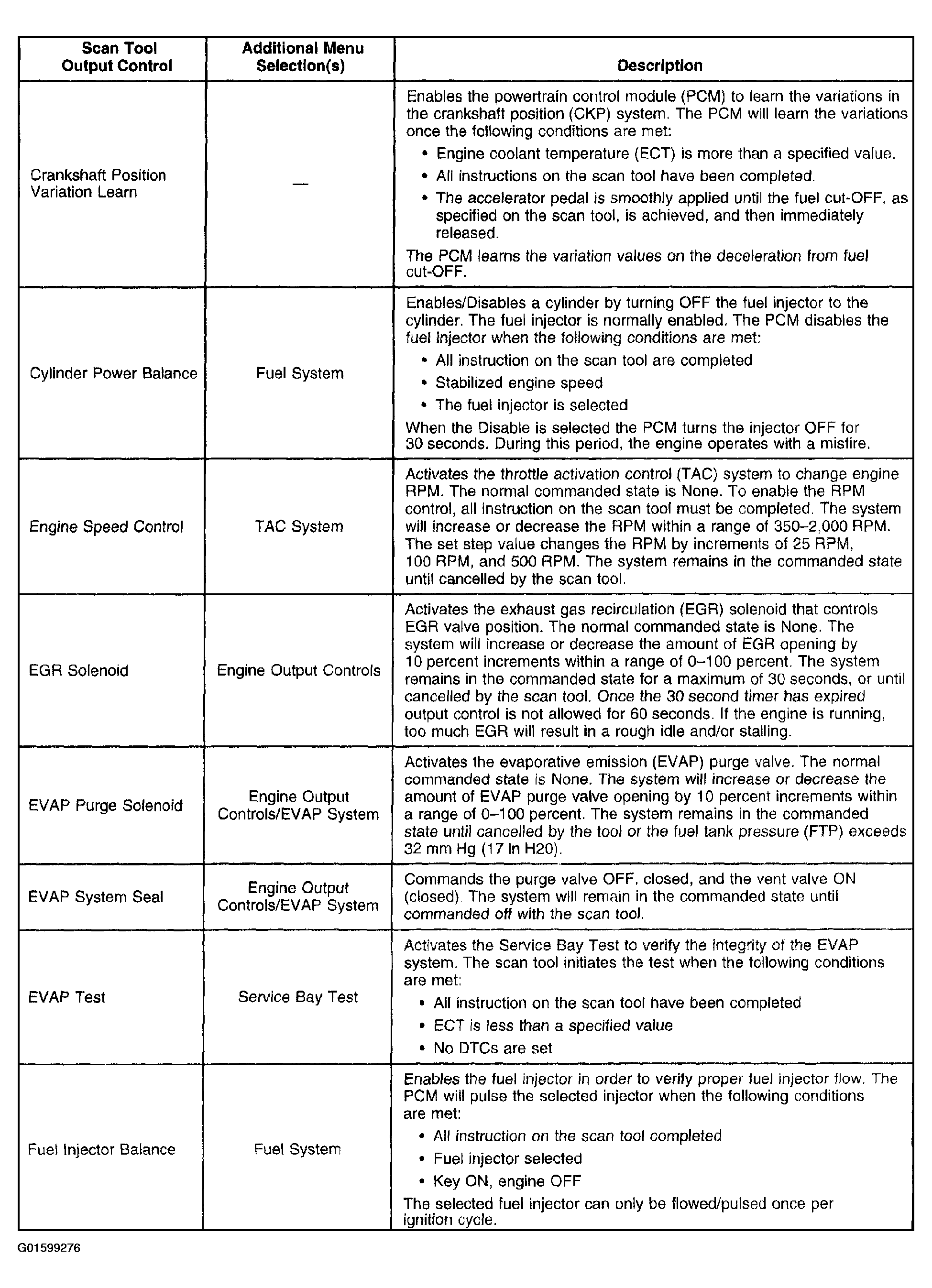

Fig 1: Scan Tool Output Controls - Engine Controls (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

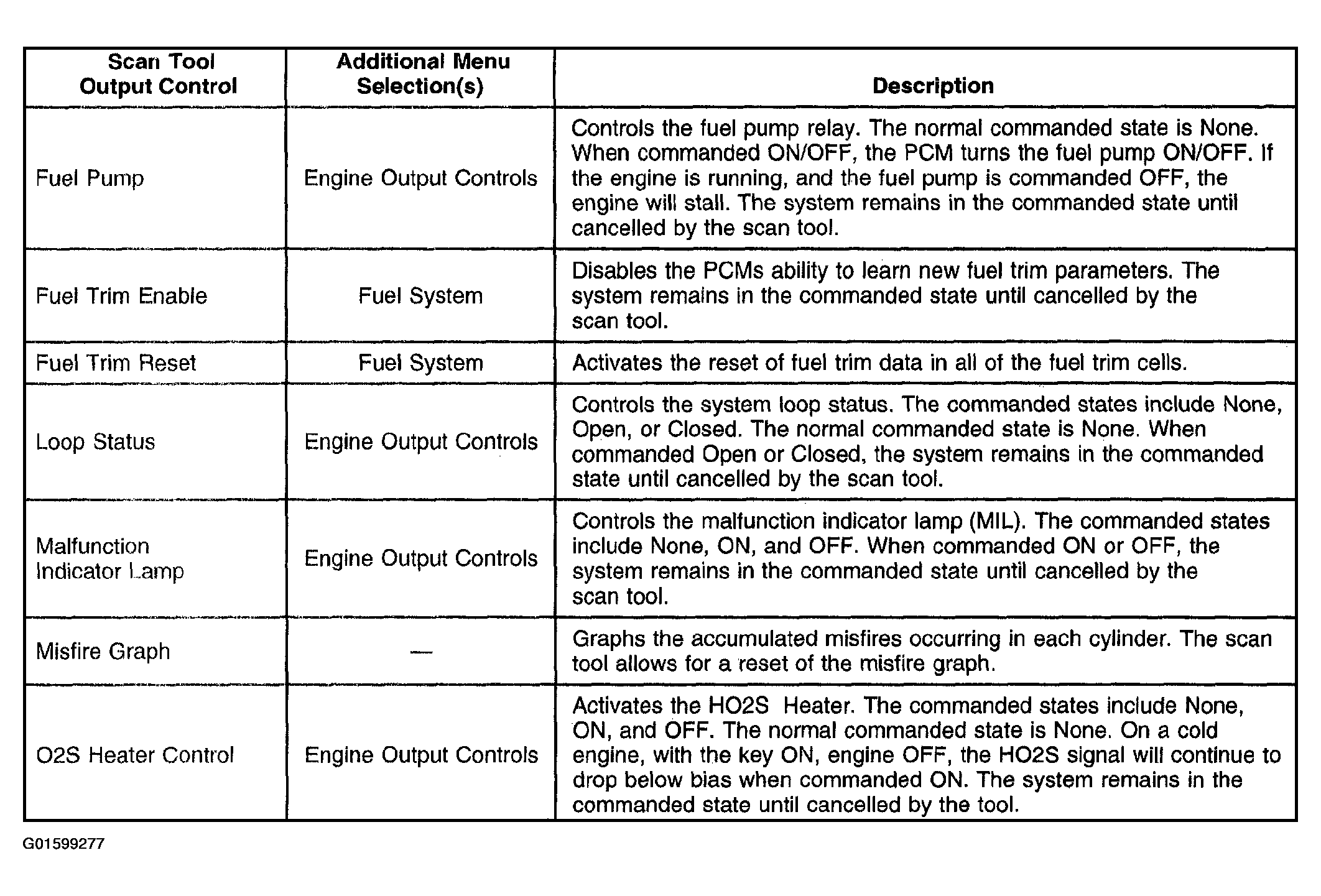

Fig 2: Scan Tool Output Controls - Engine Controls (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
