Installation Procedure

  1. Install the fuel level sensor (3).
  2. Install the fuel level sensor retaining clip (4).
  3. Connect the fuel level sensor electrical connector (7).
  4. Connect the fuel level sensor electrical connector retaining clip (6).
  5. Connect the fuel pump electrical connector (5).
  6. Install the fuel sender assembly. Refer to Fuel Sender Assembly Replacement .

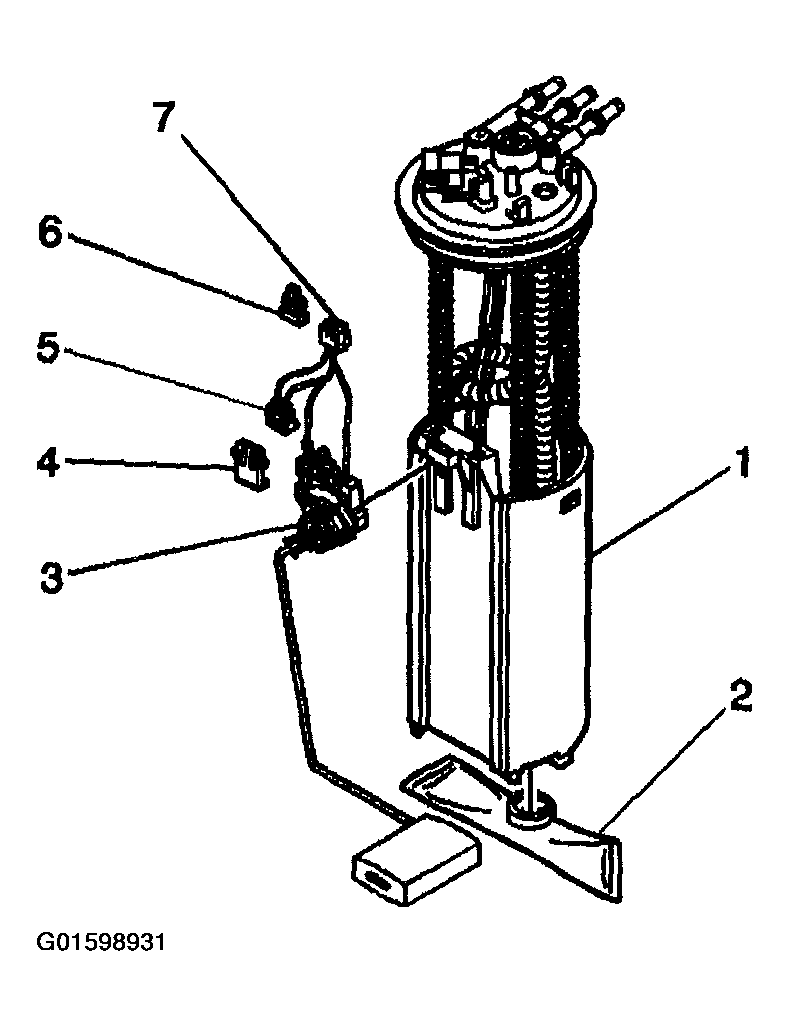

    Fig 1: Fuel Strainer & Fuel Level Sensor Components
    G01598931Courtesy of GENERAL MOTORS CORP.
