Removal Procedure

  1. Relieve the fuel system pressure. Refer to Fuel Pressure Relief Procedure .
  2. Clean the area around the fuel pressure connection with GM X-30A or equivalent.
  3. Remove the fuel pressure connection core (2) using a standard valve core removal and installation tool.

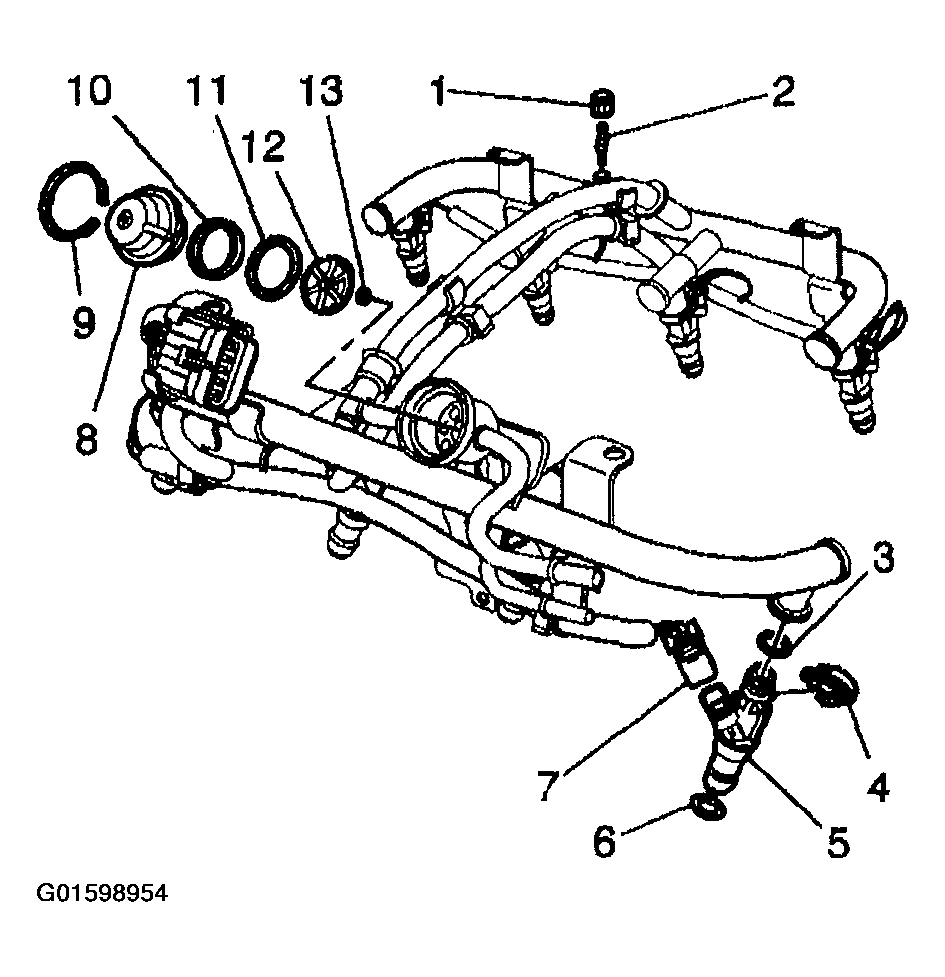

    Fig 1: Fuel Pressure Connection Valve Cap & Fuel Pressure Connection Core
    G01598954Courtesy of GENERAL MOTORS CORP.
