Installation Procedure

  1. Properly position each spark plug washer.
  2. Inspect each spark plug gap. Adjust each plug as needed.

    Specification

    Spark plug gap: 1.524 mm (0.060 in)

    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the spark plugs.

    Tighten

    • For (IRON Head-all Subsequent Installations) tighten the spark plugs to 20 N.m (15 lb ft).
    • For new iron heads tighten the spark plugs to 30 N.m (22 lb ft).
  4. Install the spark plug wires. Refer to Spark Plug Wire Replacement .

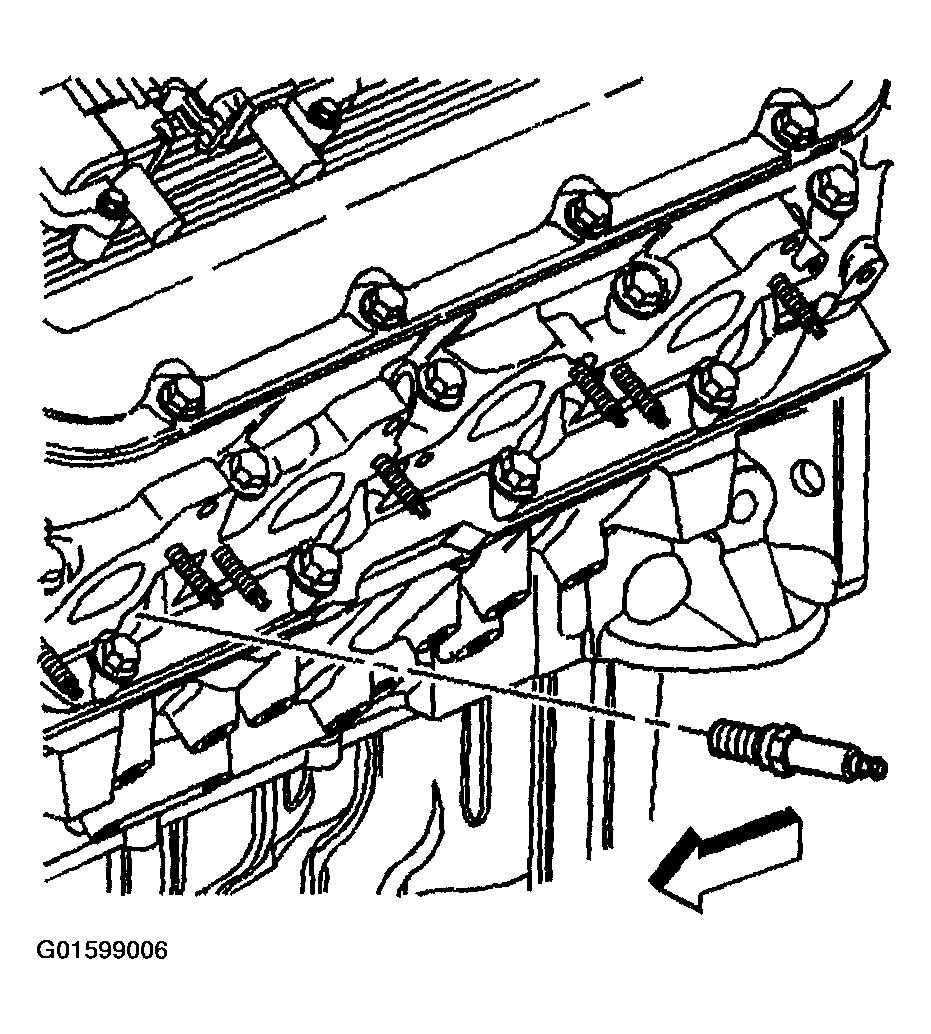

    Fig 1: Spark Plug
    G01599006Courtesy of GENERAL MOTORS CORP.
