Engine Controls Schematics

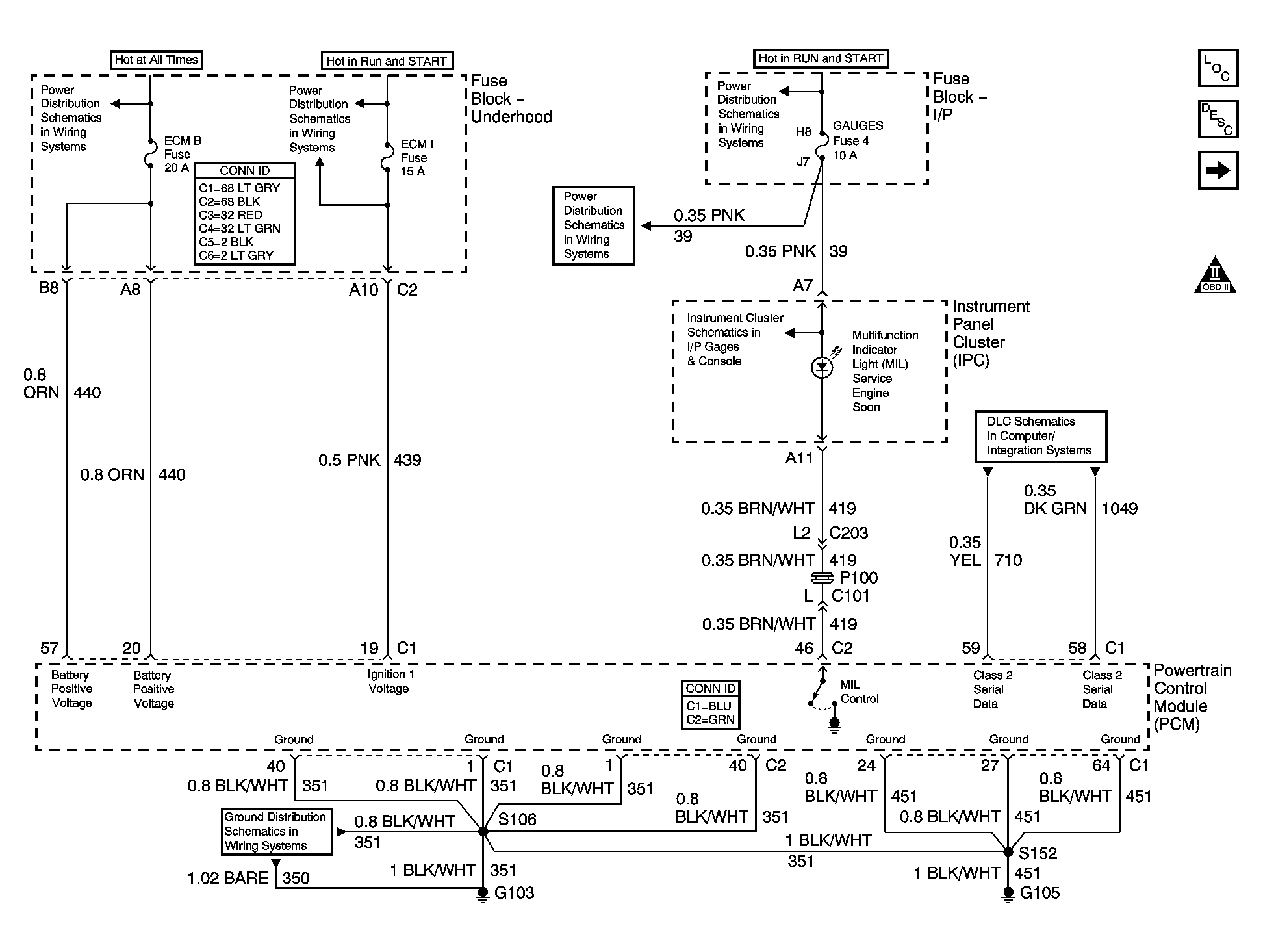

Fig 1: Module Power, Ground, Serial Data and MIL

Courtesy of GENERAL MOTORS CORP.

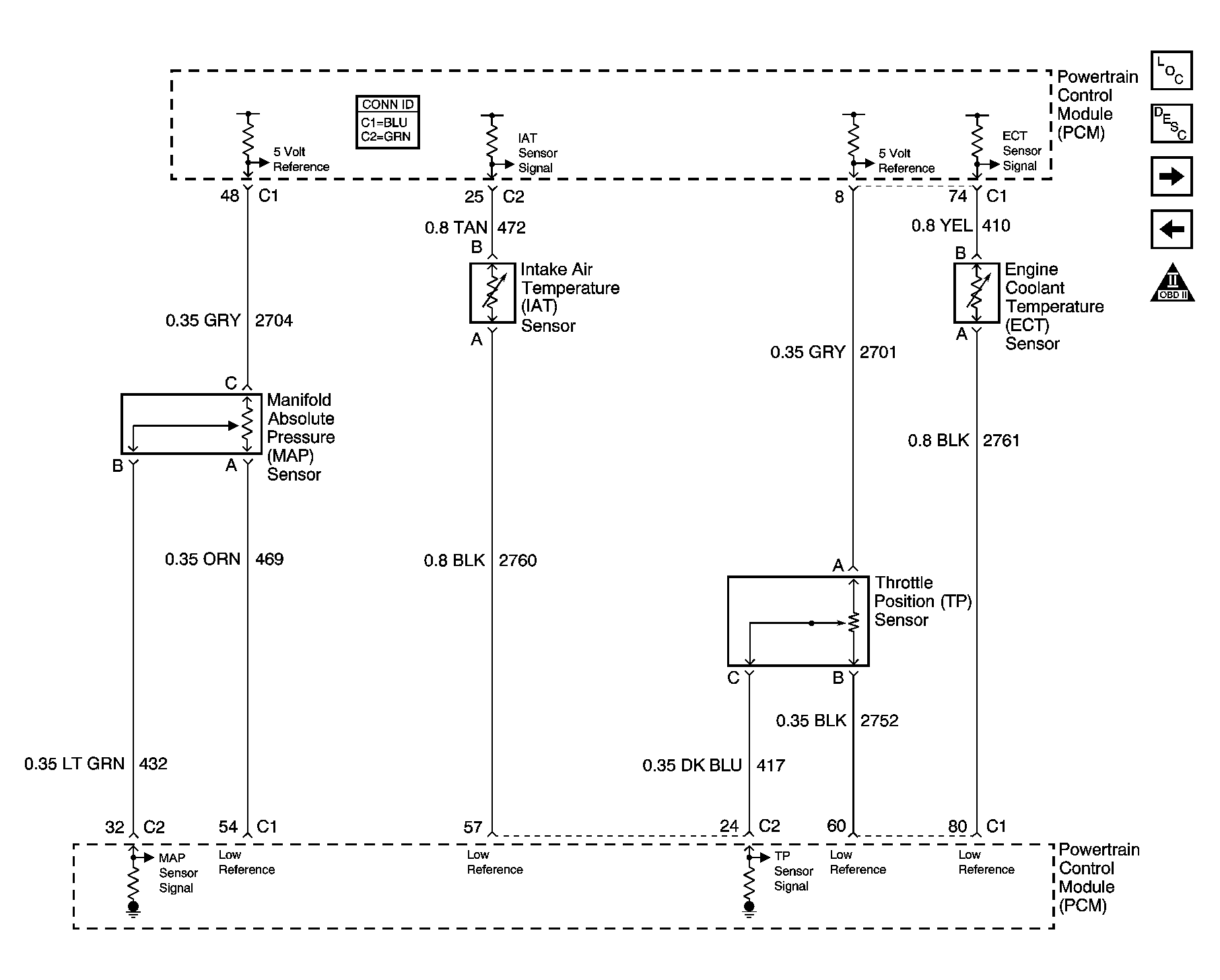

Fig 2: Engine Data Sensors Schematic - Pressure and Temperature

Courtesy of GENERAL MOTORS CORP.

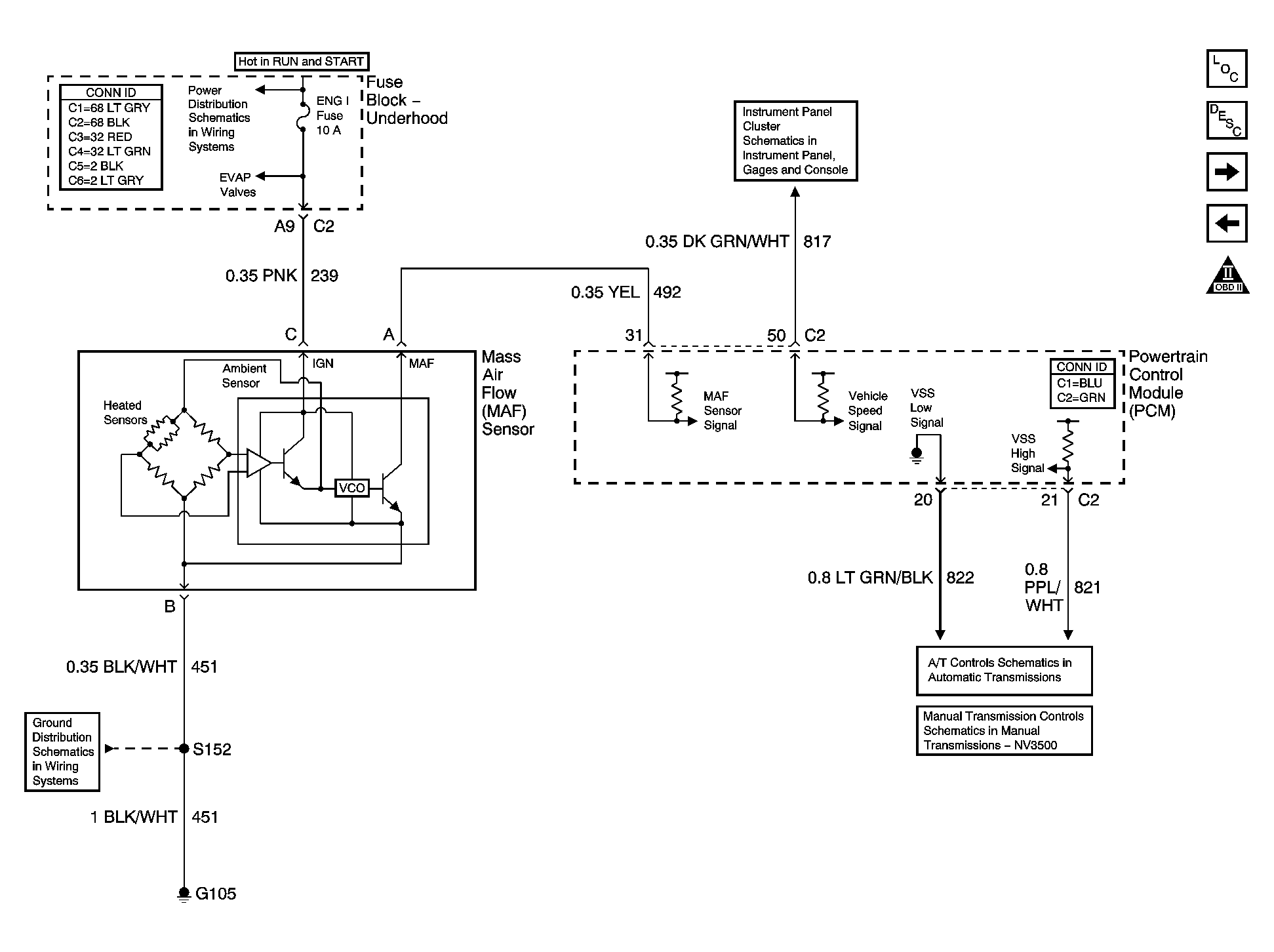

Fig 3: Engine Data Sensors Schematic - MAF and VSS

Courtesy of GENERAL MOTORS CORP.

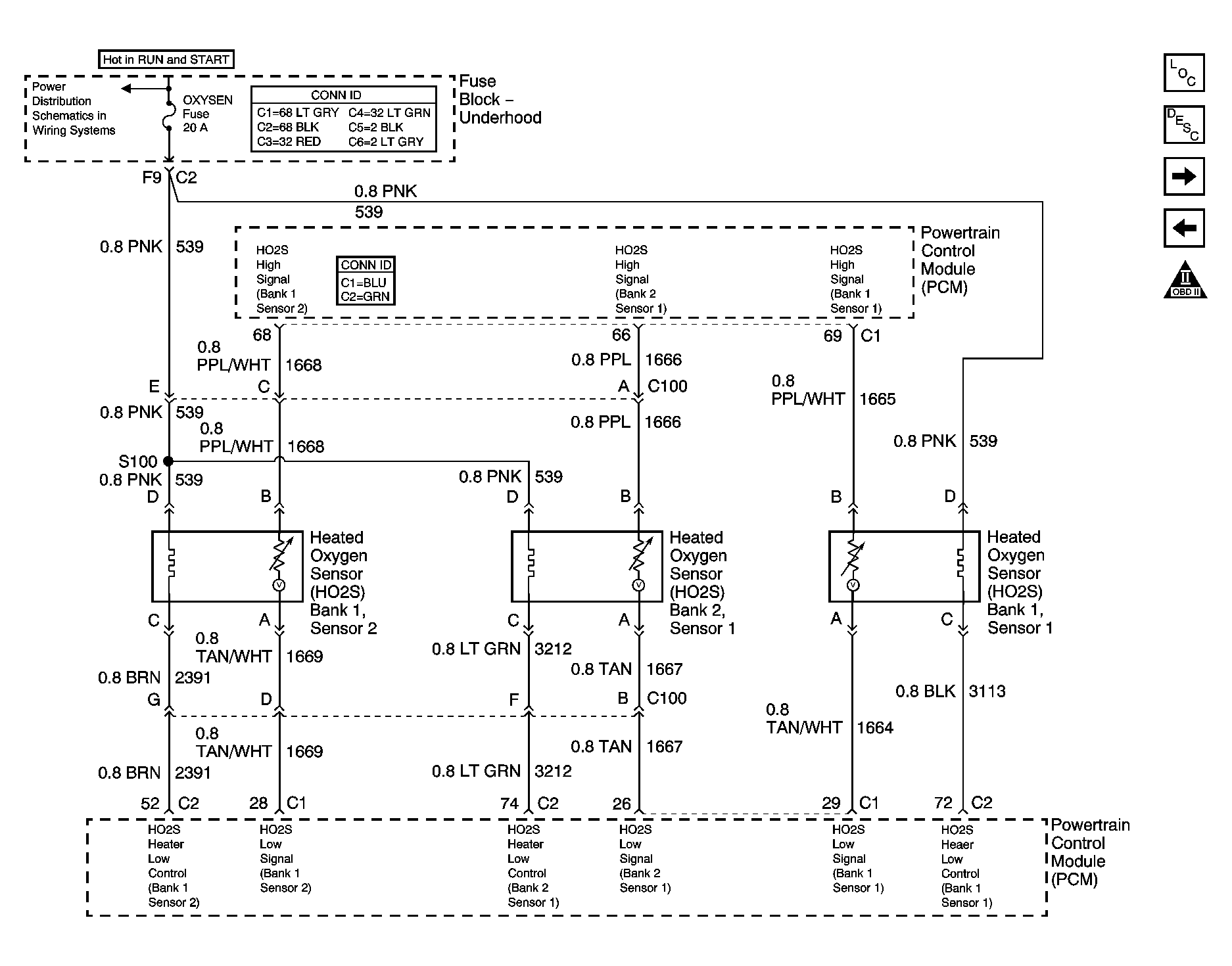

Fig 4: Heated Oxygen Sensors Schematic - Except NM8

Courtesy of GENERAL MOTORS CORP.

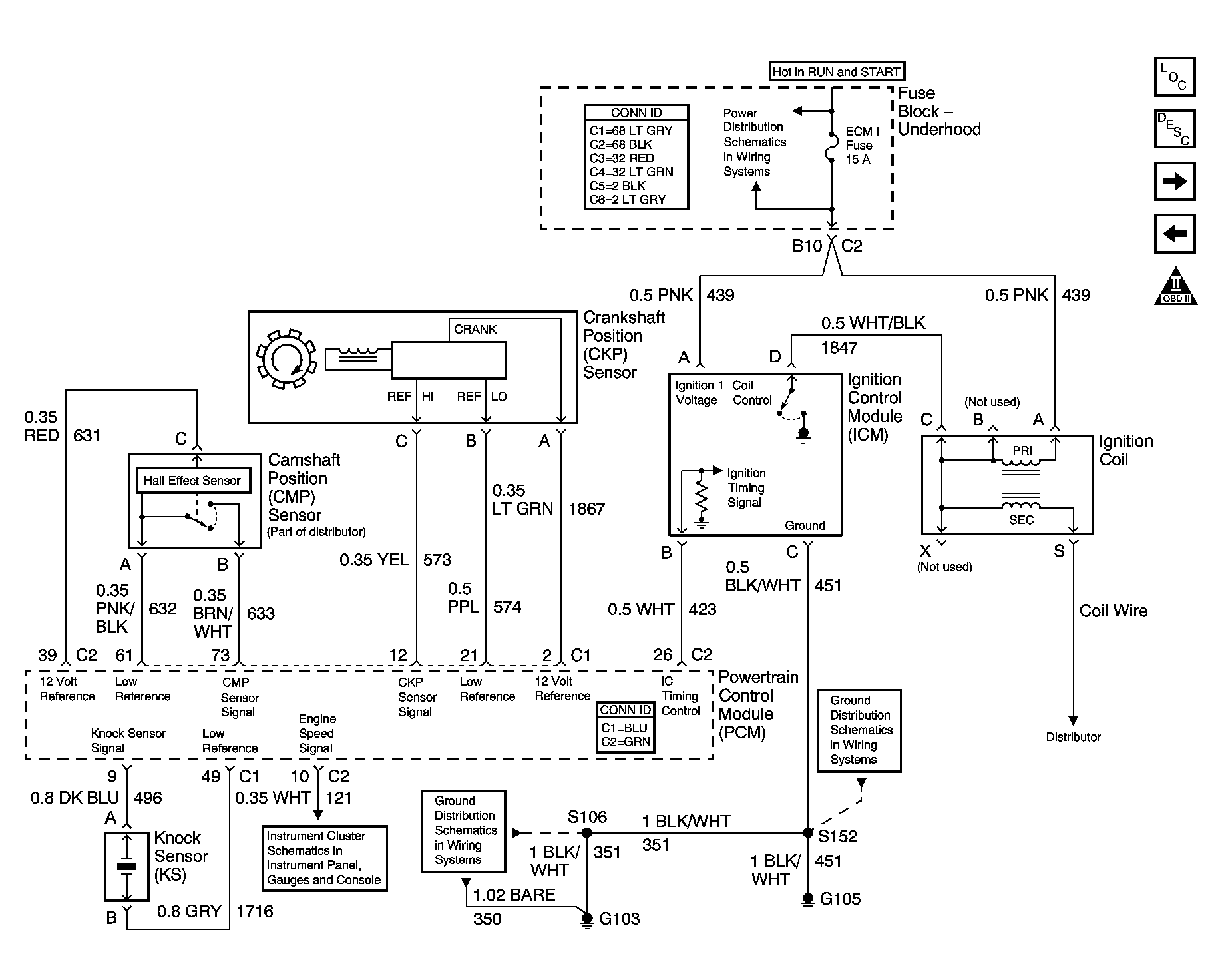

Fig 5: Ignition Controls Schematic - Ignition System and Sensors

Courtesy of GENERAL MOTORS CORP.

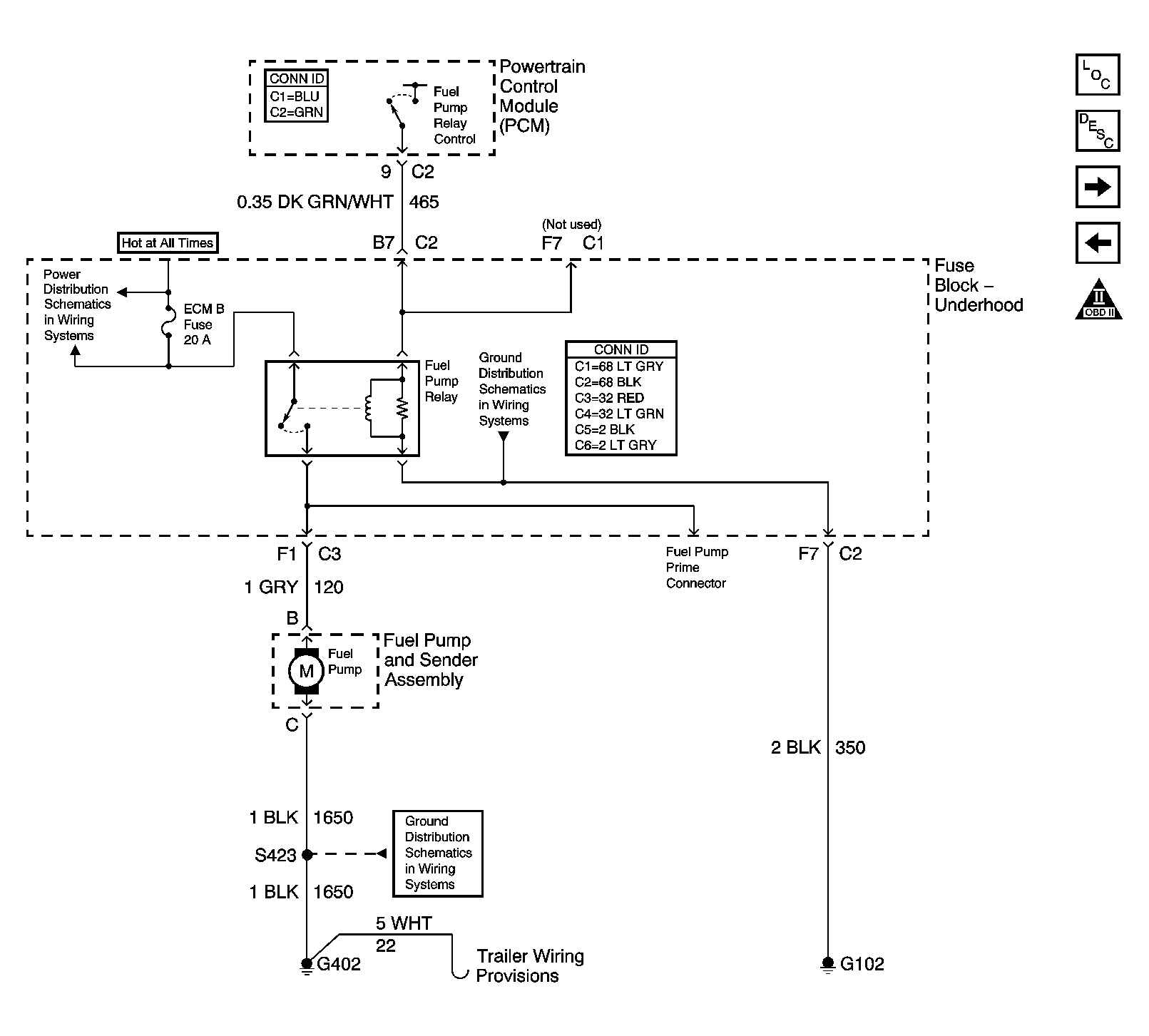

Fig 6: Fuel Controls - Fuel Pump Controls

Courtesy of GENERAL MOTORS CORP.

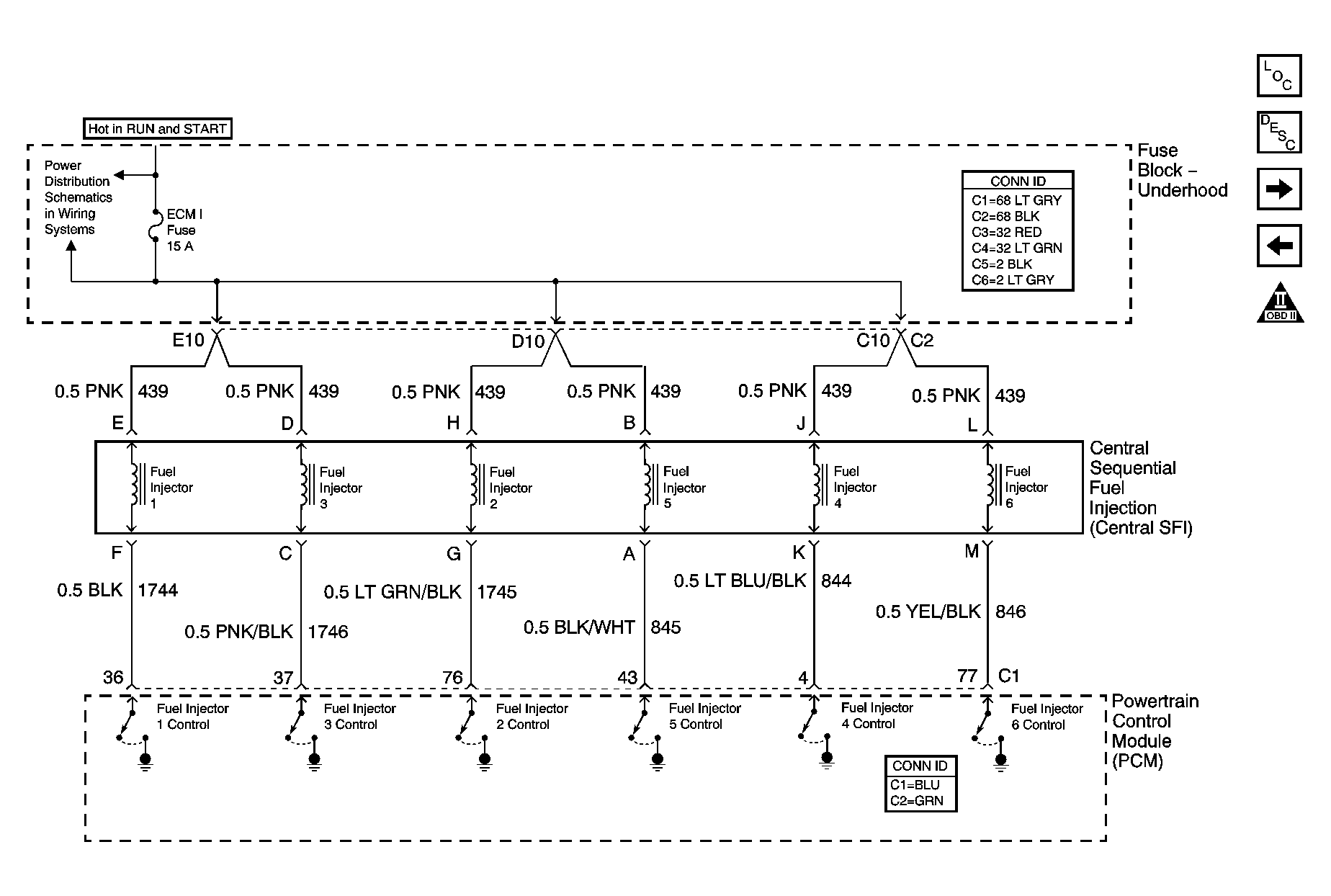

Fig 7: Fuel Controls Schematic - Fuel Injector Controls

Courtesy of GENERAL MOTORS CORP.

Fig 8: Fuel Controls Schematic - EVAP Controls

Courtesy of GENERAL MOTORS CORP.

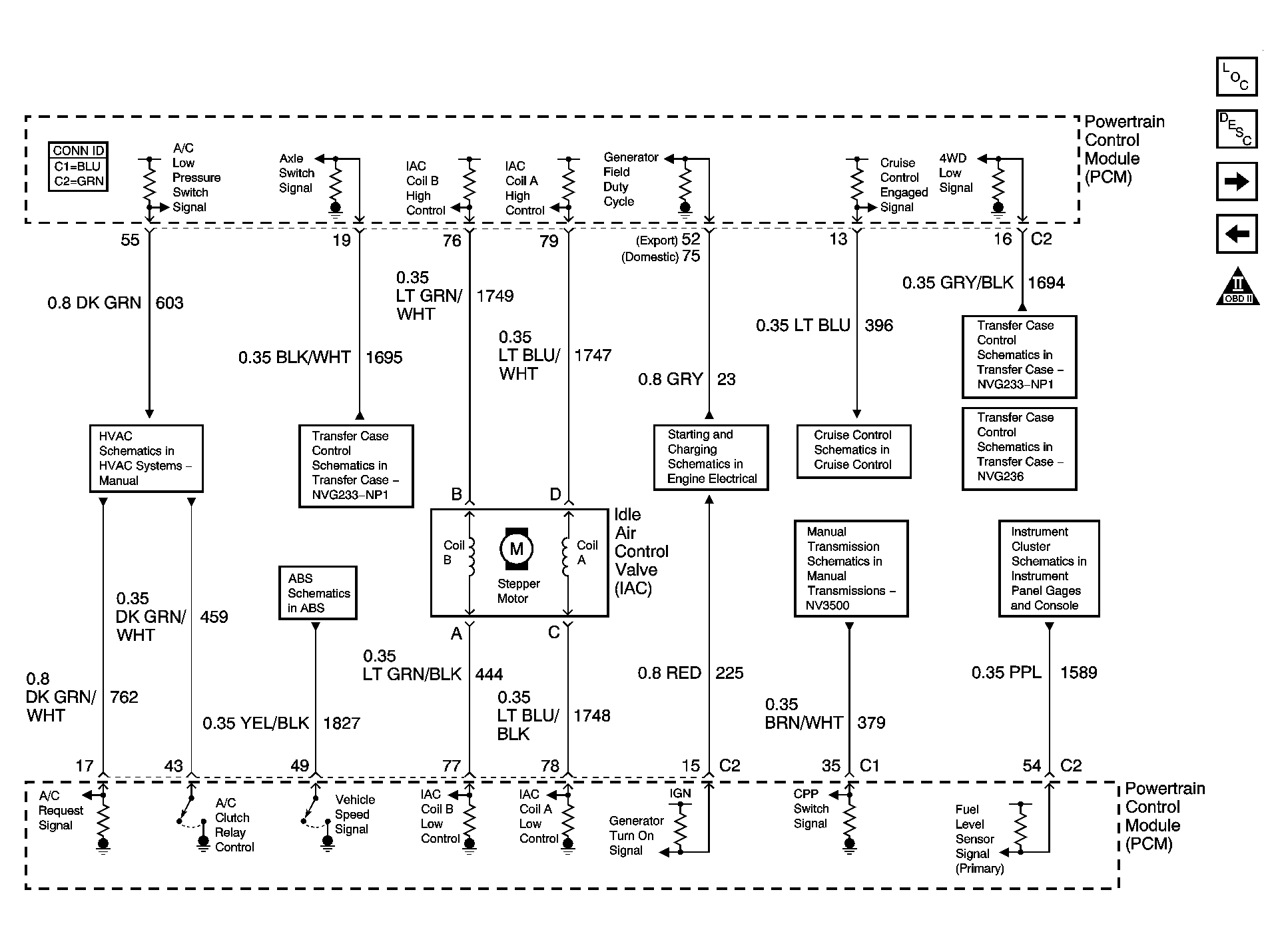

Fig 9: Device Controls, Controlled/Monitored Subsystem References, and M/T Schematic

Courtesy of GENERAL MOTORS CORP.

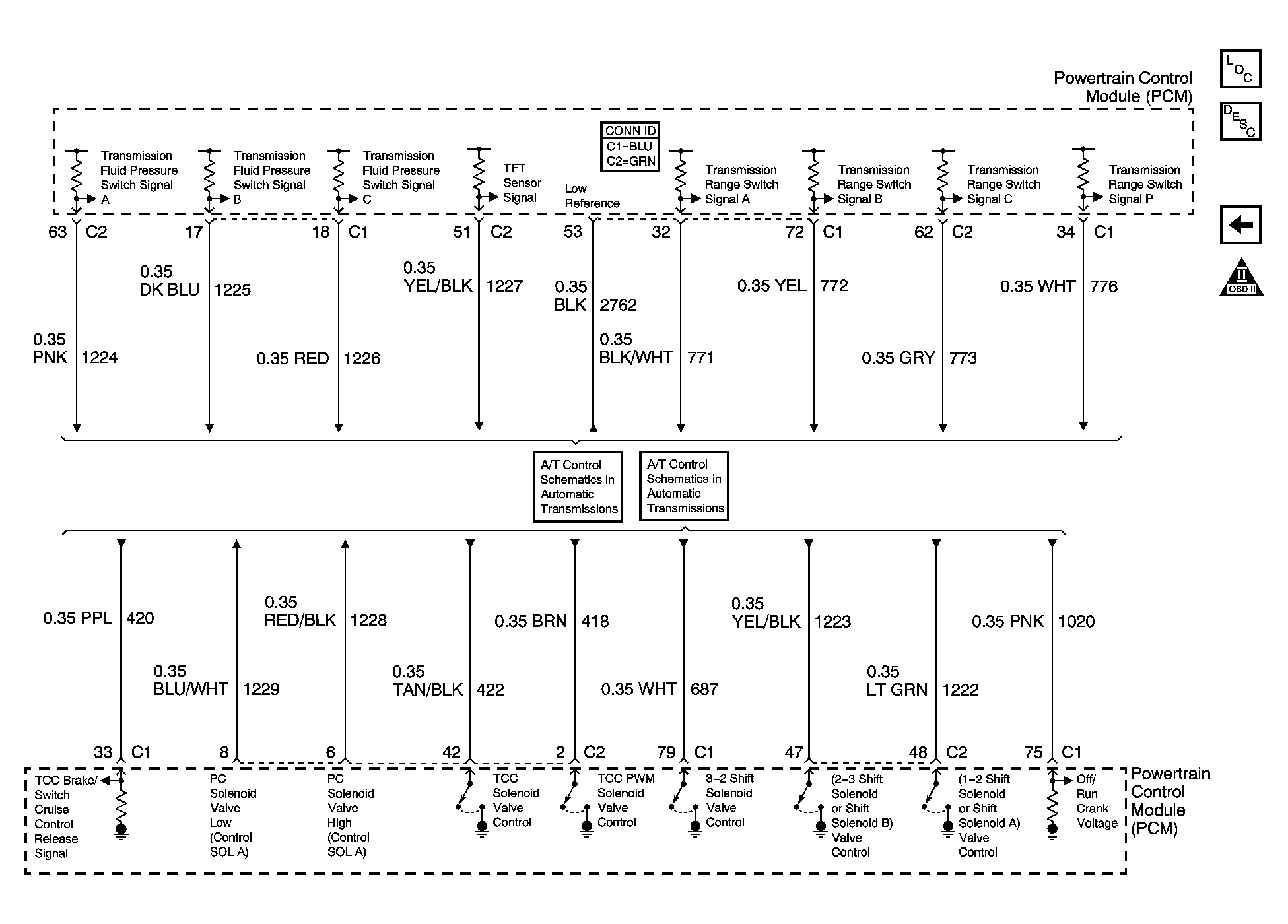

Fig 10: Transmission Controls Schematic - A/T

Courtesy of GENERAL MOTORS CORP.
