Installation Procedure

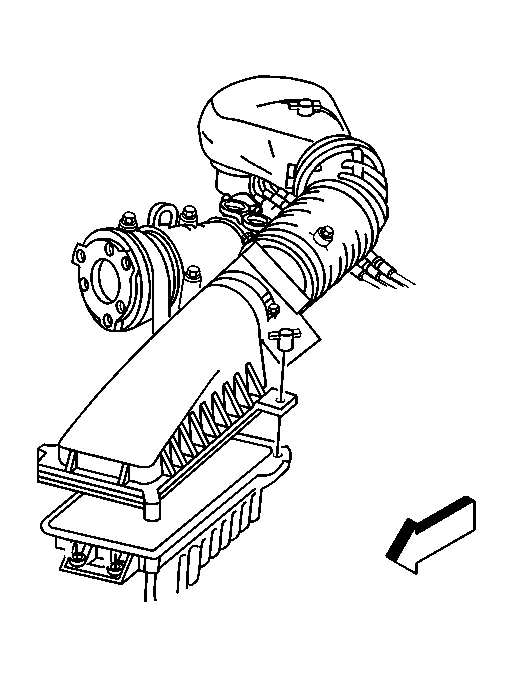

    Fig 1: View Of Air Cleaner Cover
    GM312036Courtesy of GENERAL MOTORS CORP.
  1. Insert the air cleaner element into the air cleaner housing.
  2. Install the air cleaner cover.
    3. Fig 2: Locating Air Cleaner Cover Wingnuts
    GM312019Courtesy of GENERAL MOTORS CORP.
  3. Tighten the air cleaner cover wingnuts.
