Data Communication Schematics

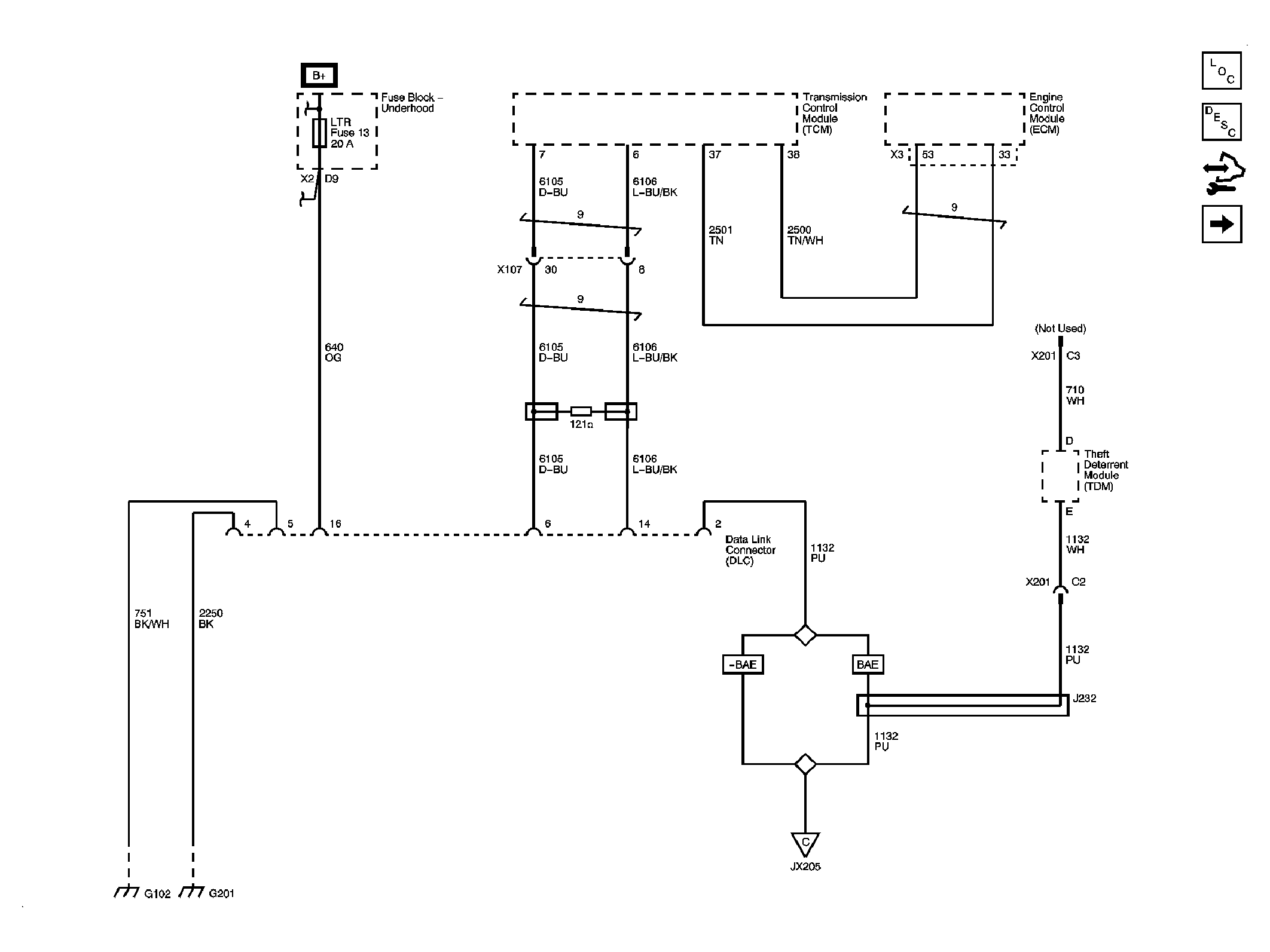

Fig 1: Power, Ground, and Data Link Connector

GM2081869

Courtesy of GENERAL MOTORS CORP.

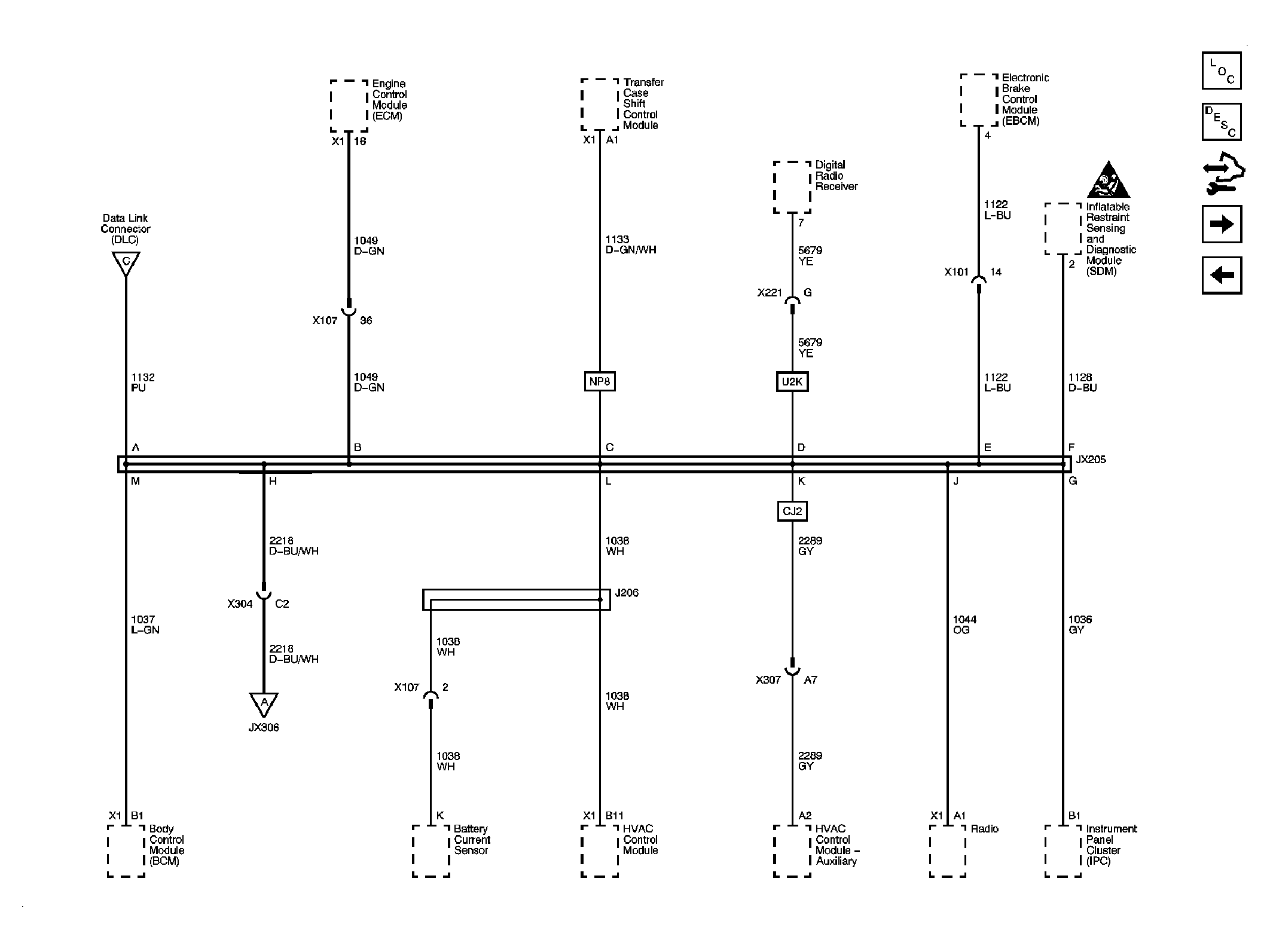

Fig 2: SP205

GM2081895

Courtesy of GENERAL MOTORS CORP.

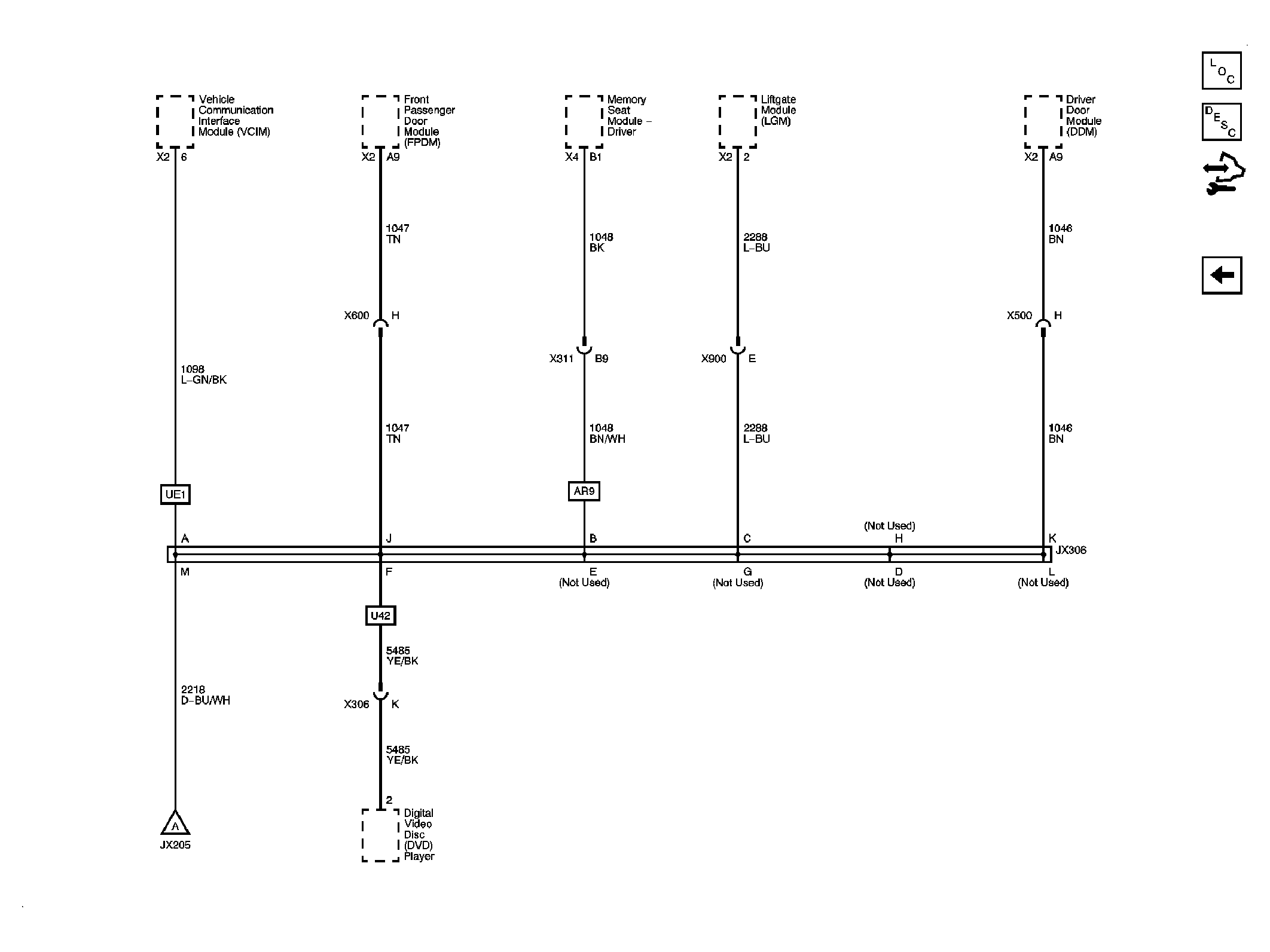

Fig 3: SP306

GM2081902

Courtesy of GENERAL MOTORS CORP.
