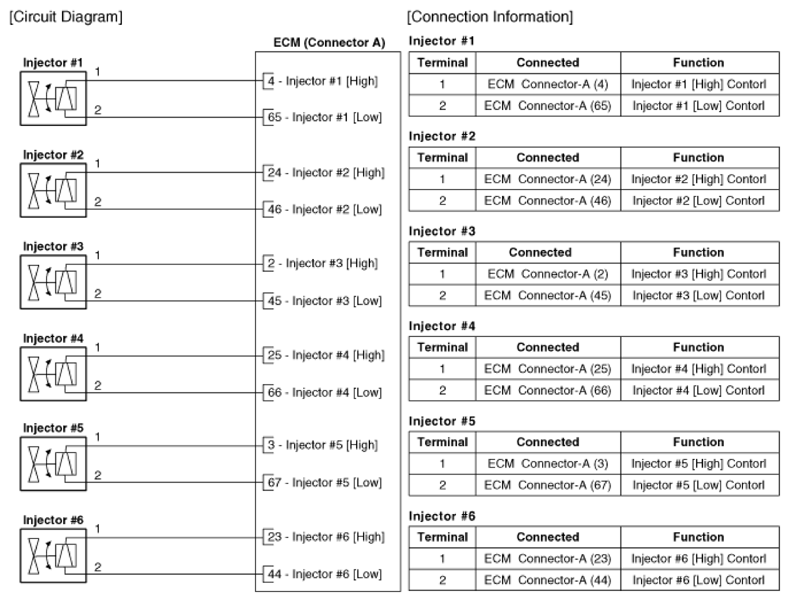

Home >> Genesis >> 2019 >> G70 3.3T Advanced, RWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.3L >> Injector >> Schematic Diagrams >> Circuit Diagram >> Notes
