Home >> Genesis >> 2019 >> G70 3.3T Design, RWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.3L >> RCV Control Solenoid Valve >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

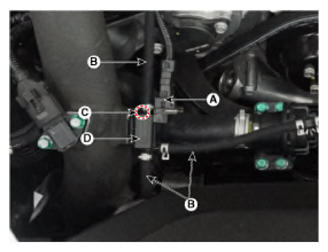

  2. Disconnect the RCV control solenoid valve connector (A) and vapor hoses (B).
  3. Remove the RCV control solenoid valve (D) after loosening the mounting bolt (C).
G13543410Courtesy of HYUNDAI MOTOR AMERICA
