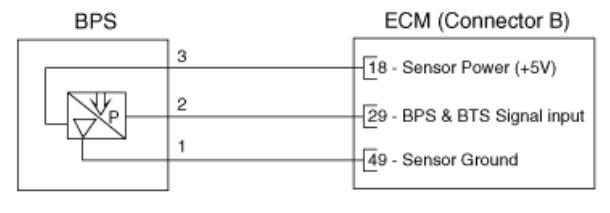

Home >> Genesis >> 2021 >> GV80 3.5T Advanced >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.5L >> Boost Pressure Sensor (BPS) >> Schematic Diagrams >> Circuit Diagram >> Notes
