Engine Control System - 3.5L
>>
ETC (Electronic Throttle Control) System
>>

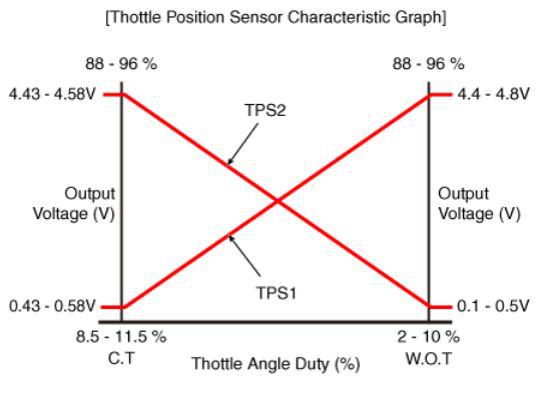

Specifications
>>
Specification
>>
TPS 2
TPS 2
Item
Duty (%)
Output Voltage (V) [Supply Voltage = 5V]
C.T
88.5 ~ 91.5%
4.43 ~ 4.58
W.O.T
2 ~ 10%
0.1 ~ 0.5
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
