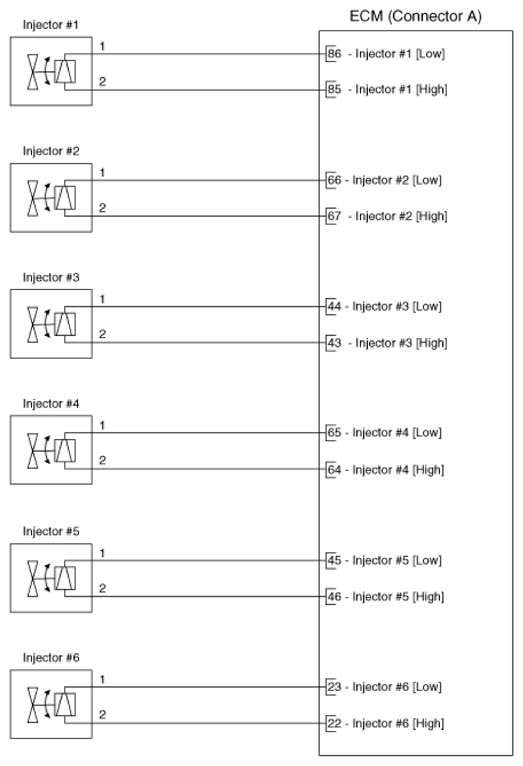

Home >> Genesis >> 2024 >> GV80 3.5T Advanced >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.5L >> Injector >> Schematic Diagrams >> Circuit Diagram >> GDI Injector
