Diagnostic Aids

This chart will diagnose any injector circuit problems. Trouble with the fuel pump circuit and control relay can be diagnosed in CHART A-7 in this article. Ensure to perform the ECM circuit resistance check prior to replacing an ECM to prevent possible damage.

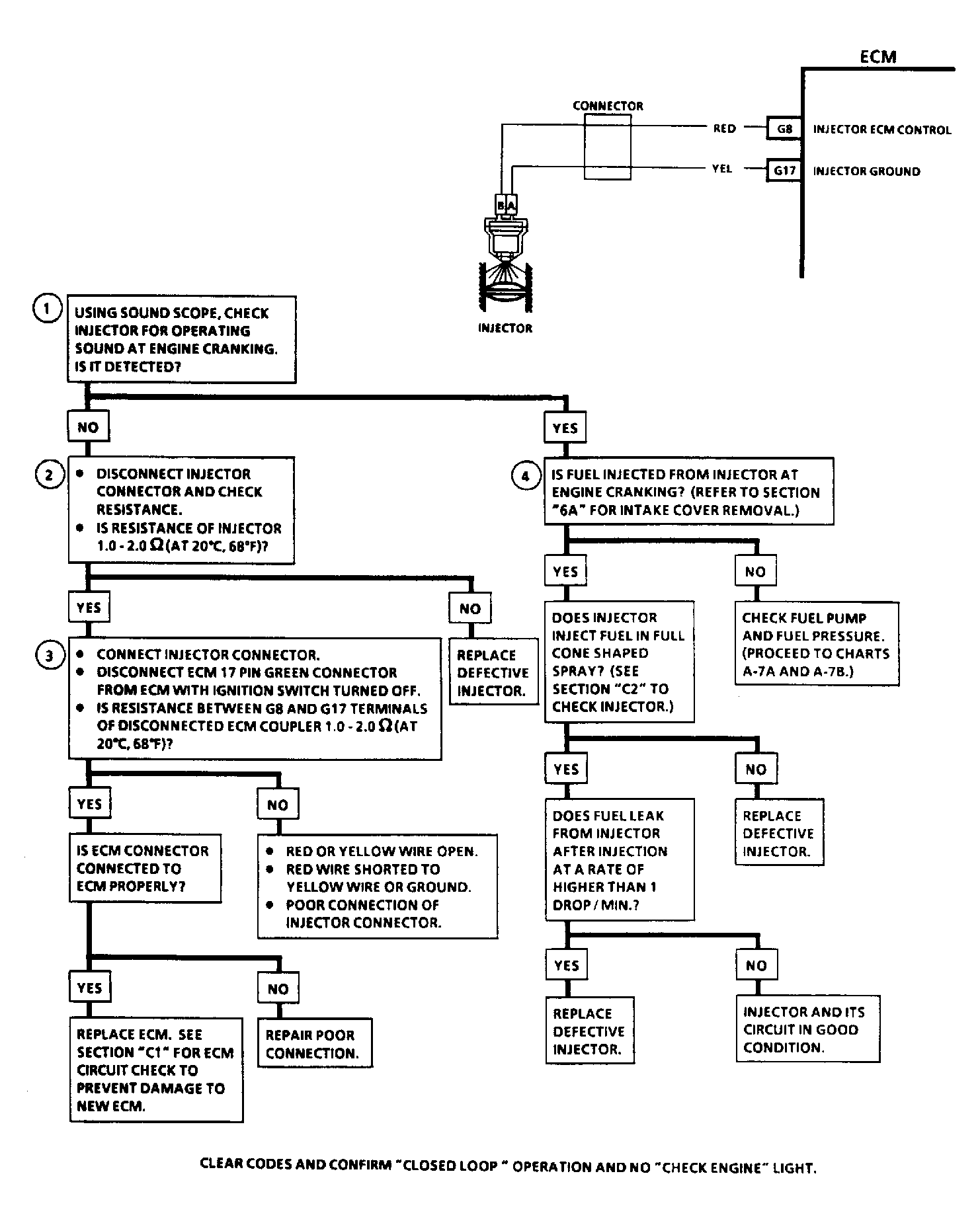

Fig 1: Chart A-5, Circuit Wiring Diagram & Flow Chart

Courtesy of GENERAL MOTORS CORP.
