Diagnostic Aids

Using a DVOM, TPS voltage should be between .49-.59 volt at closed throttle and 4.95-5.05 volts at wide open throttle.

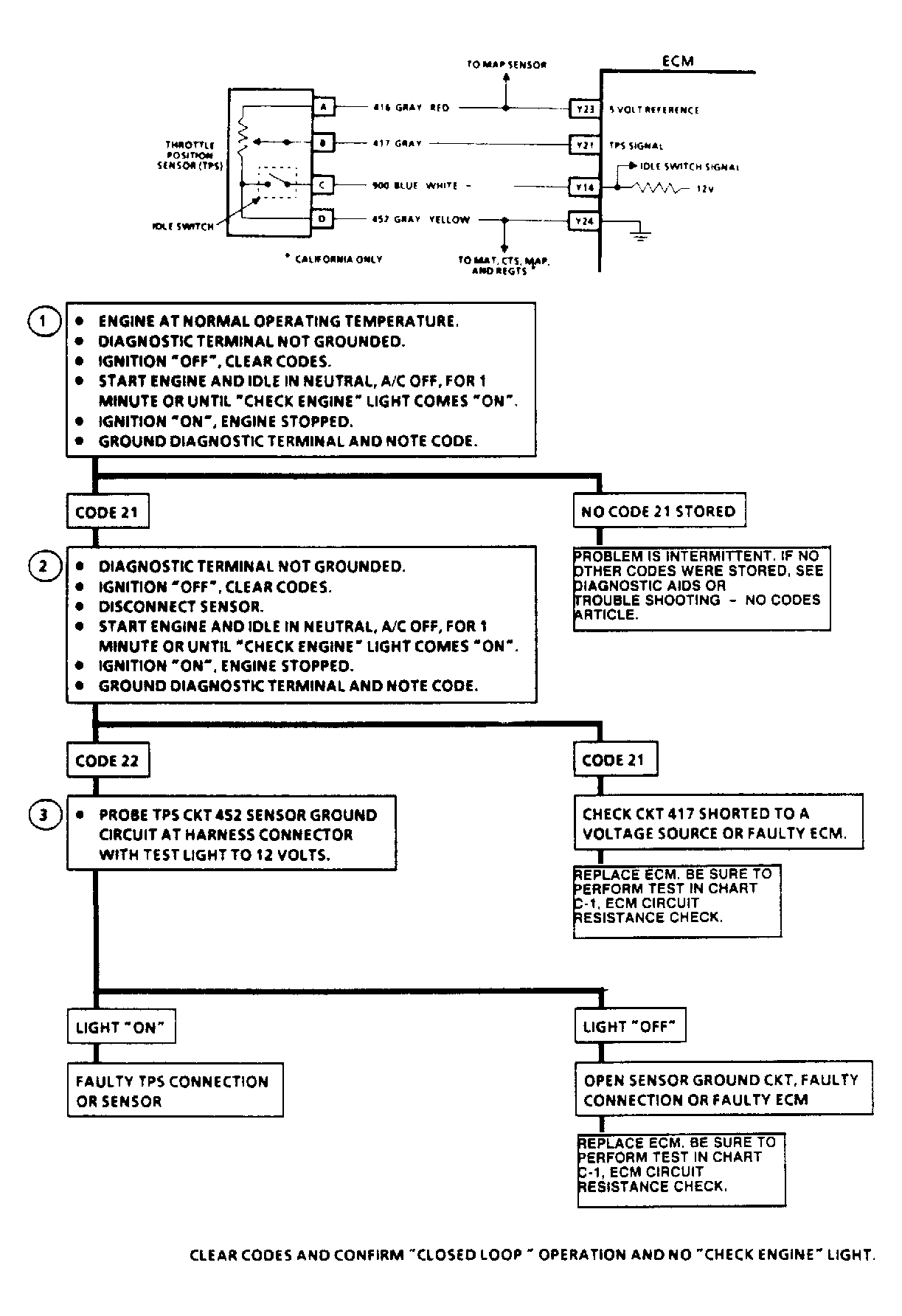

Fig 1: Code 21, Circuit Wiring Diagram & Flow Chart

Courtesy of GENERAL MOTORS CORP.
