Diagnostic Aids

A loose connection will set a Code 41. A visual inspection will verify all connections to ensure this is not a false code.

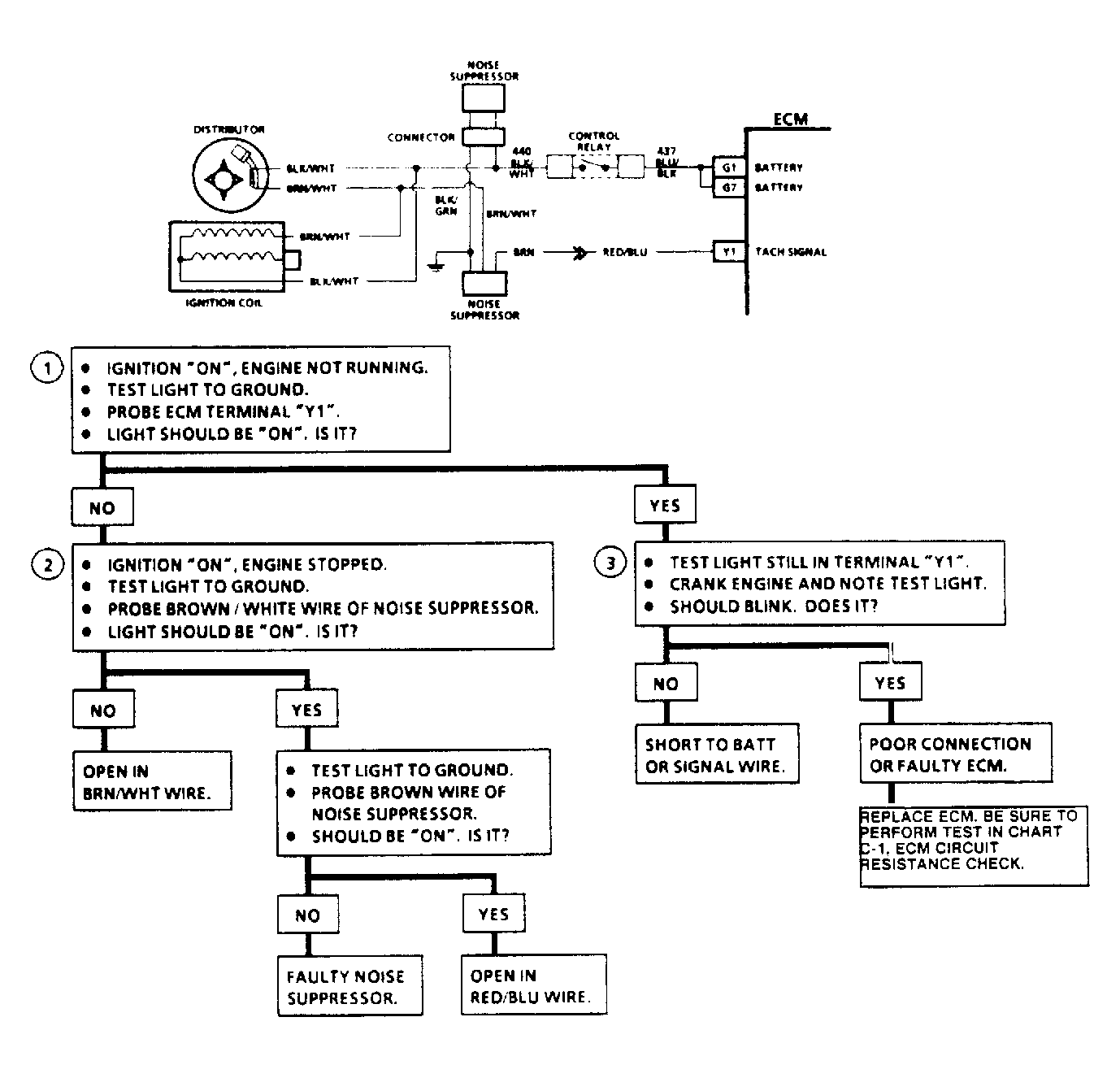

Fig 1: Code 41, Circuit Wiring Diagram & Flow Chart

Courtesy of GENERAL MOTORS CORP.
