Circuit Protection Devices

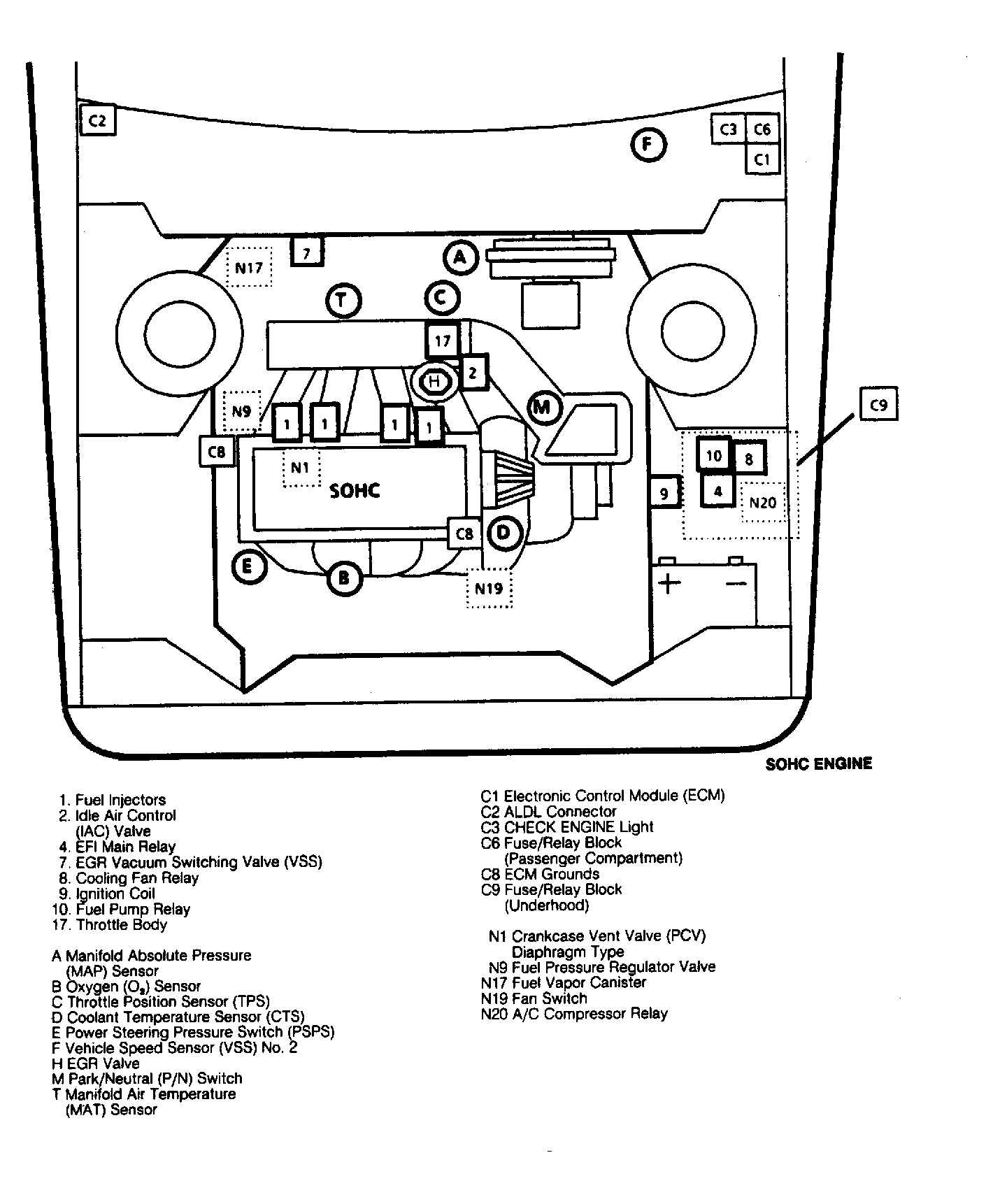

CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Fuse/Relay Blocks | ||
| Passenger Compartment | Behind driver's side kick panel. See Figure & 2. | |
| Underhood | In engine compartment, near left front shock tower. See Figure & 2. | |
| Fusible Links | In fuse/relay block, near left front suspension tower. See Figure & 2. | |
