Firing Order & Timing Marks

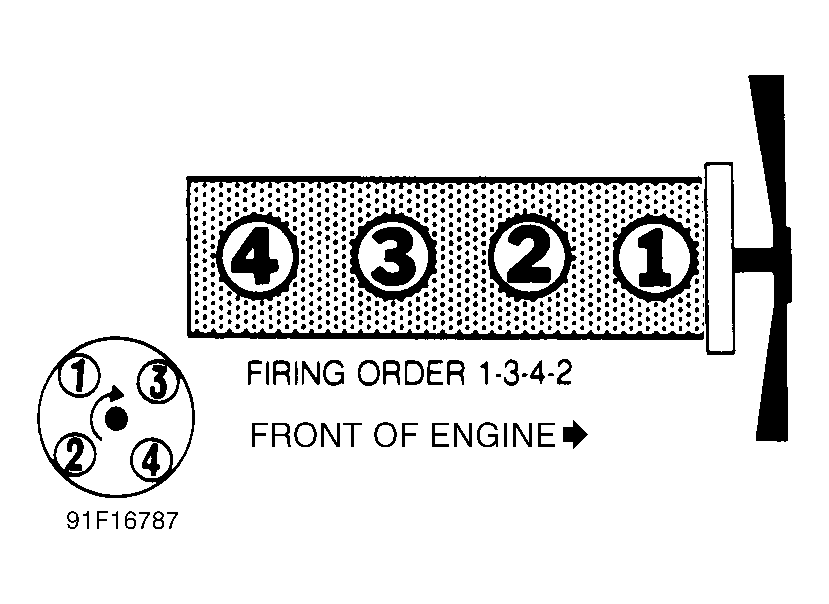

Fig 1: Firing Order & Distributor Rotation (Tracker)

G91F16787

Fig 2: Locating Ignition Timing Mark (Tracker)

G92I26235

Courtesy of GENERAL MOTORS CORP.
