CLOCKSPRING Coil Centering

Ensure front wheels are pointing straight-ahead and ignition switch is in LOCK position. Lightly rotate clockspring coil counterclockwise until clockspring coil stops. Lightly rotate clockspring coil back clockwise approximately 2 1/2 turns until alignment marks are aligned. See Fig 1.

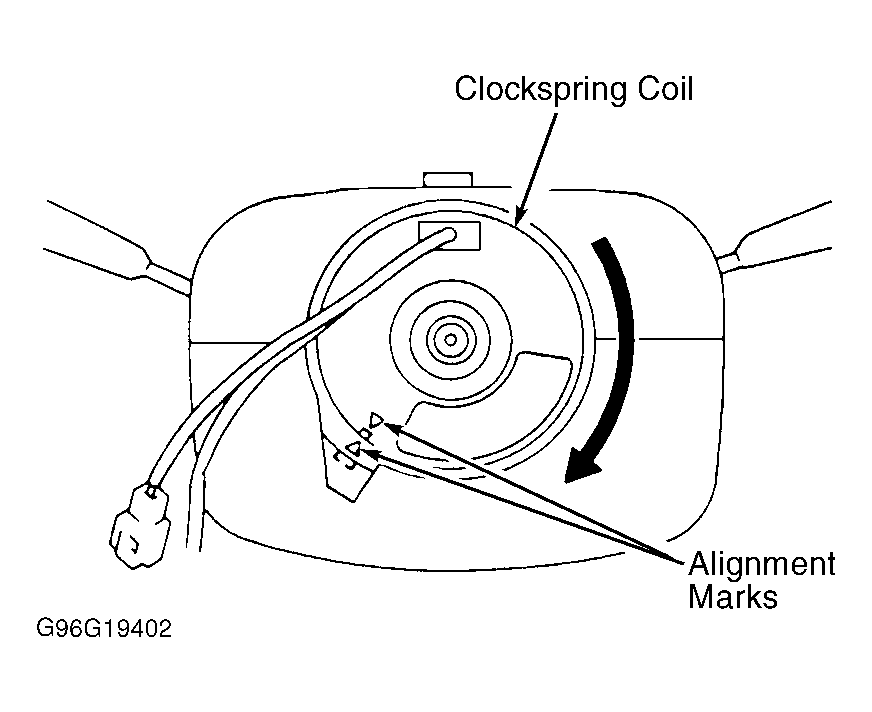

Fig 1: Centering Clockspring Coil
G96G19402Courtesy of SUZUKI OF AMERICA CORP.
