HONDA Anti-AFTERBURN Valve: Operation

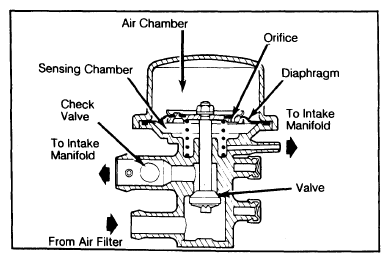

The anti-after burn valve is sensitive only to sudden increases in vacuum; the length of time it stays open is controlled by a diaphragm that senses change in manifold vacuum.
When manifold vacuum suddenly increases, as during sudden deceleration, the diaphragm/valve unit is pulled downward. Air flow from the air chamber to the sensing chamber is restricted by an orifice, creating a pressure differential on the diaphragm, which holds the valve open.
This unbalanced condition lasts for a few seconds until the pressure in both chambers is equalized by air entering through the orifice, then the spring pushes the diaphragm up, closing the valve.
Note direction of air flow.
