Firing Order & Timing Marks

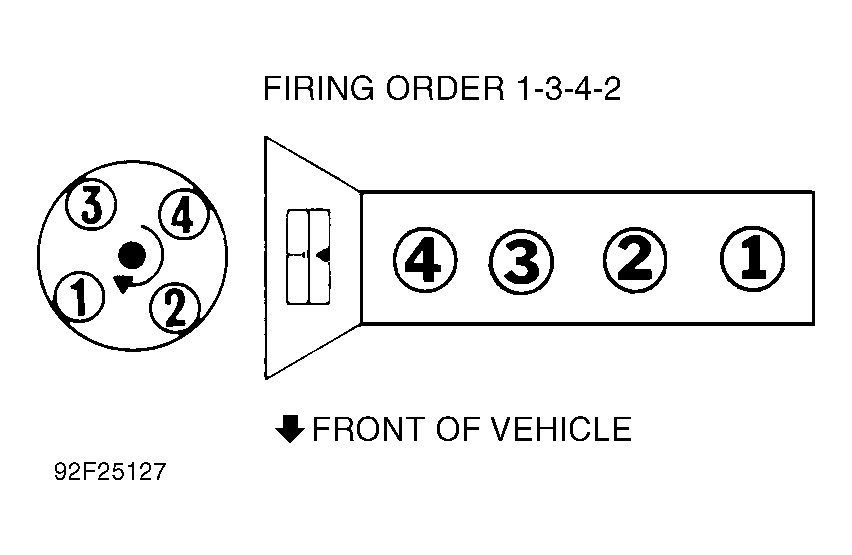

Fig 1: Firing Order & Distributor Rotation

G92F25127

Courtesy of AMERICAN HONDA MOTOR CO., INC.

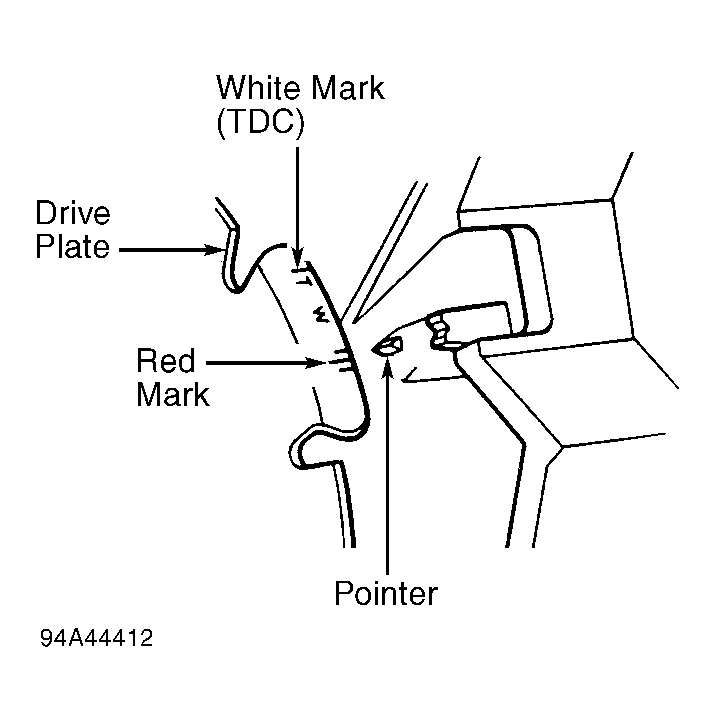

Fig 2: Locating Ignition Timing Marks

G94A44412

Courtesy of AMERICAN HONDA MOTOR CO., INC.
