Secondary HO2S Replacement

  1. Disconnect secondary HO2S (Sensor 2) 4P connector (A).

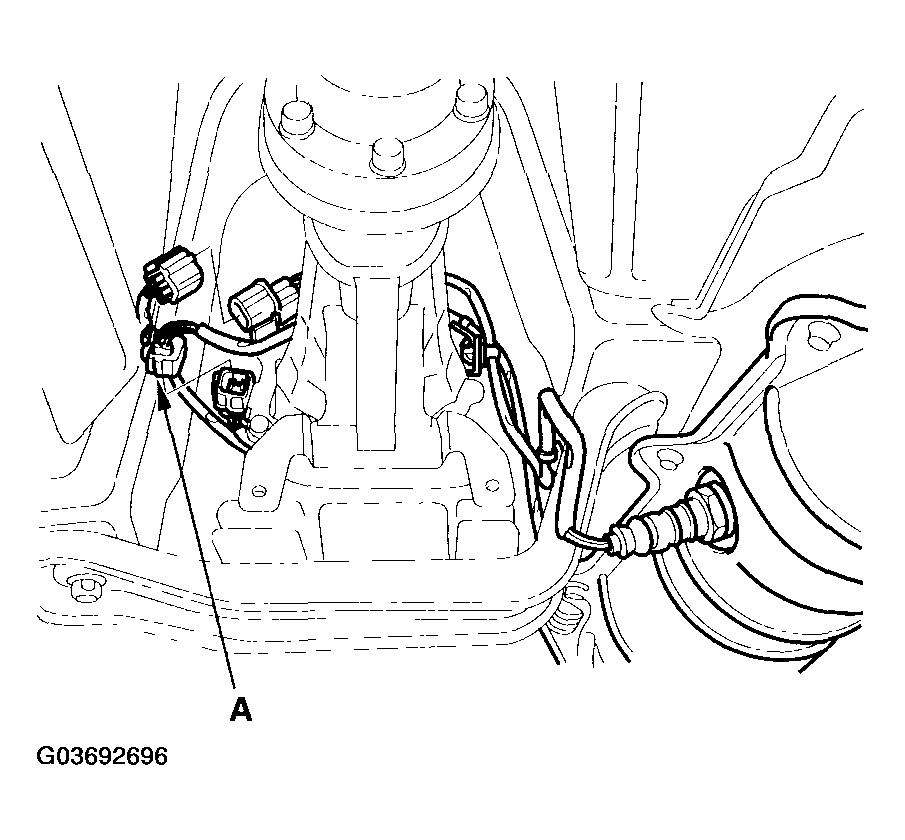

    Fig 1: Disconnecting Secondary HO2S (Sensor 2) 4P Connector
    G03692696Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the secondary HO2S (Sensor 2) (B).

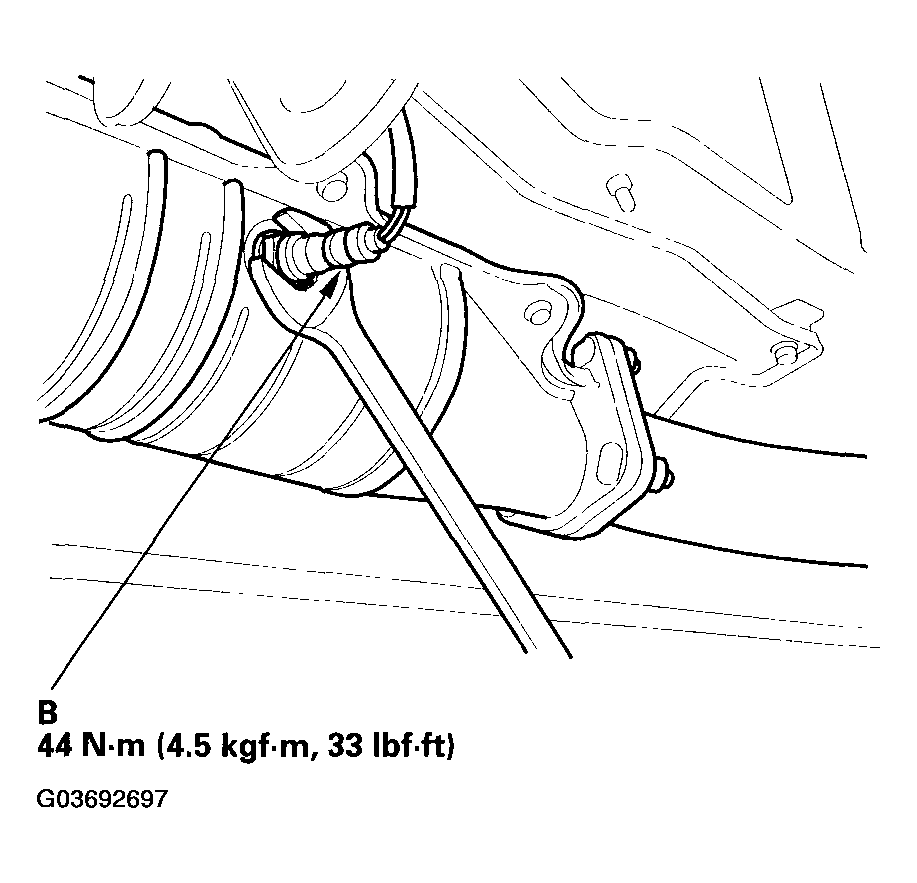

    Fig 2: Removing Secondary Ho2S (Sensor 2) With Torque Specifications
    G03692697Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the secondary HO2S (Sensor 2) in the reverse order of removal.
