Air Cleaner Element Inspection/Replacement

  1. Remove the air cleaner housing cover (A).

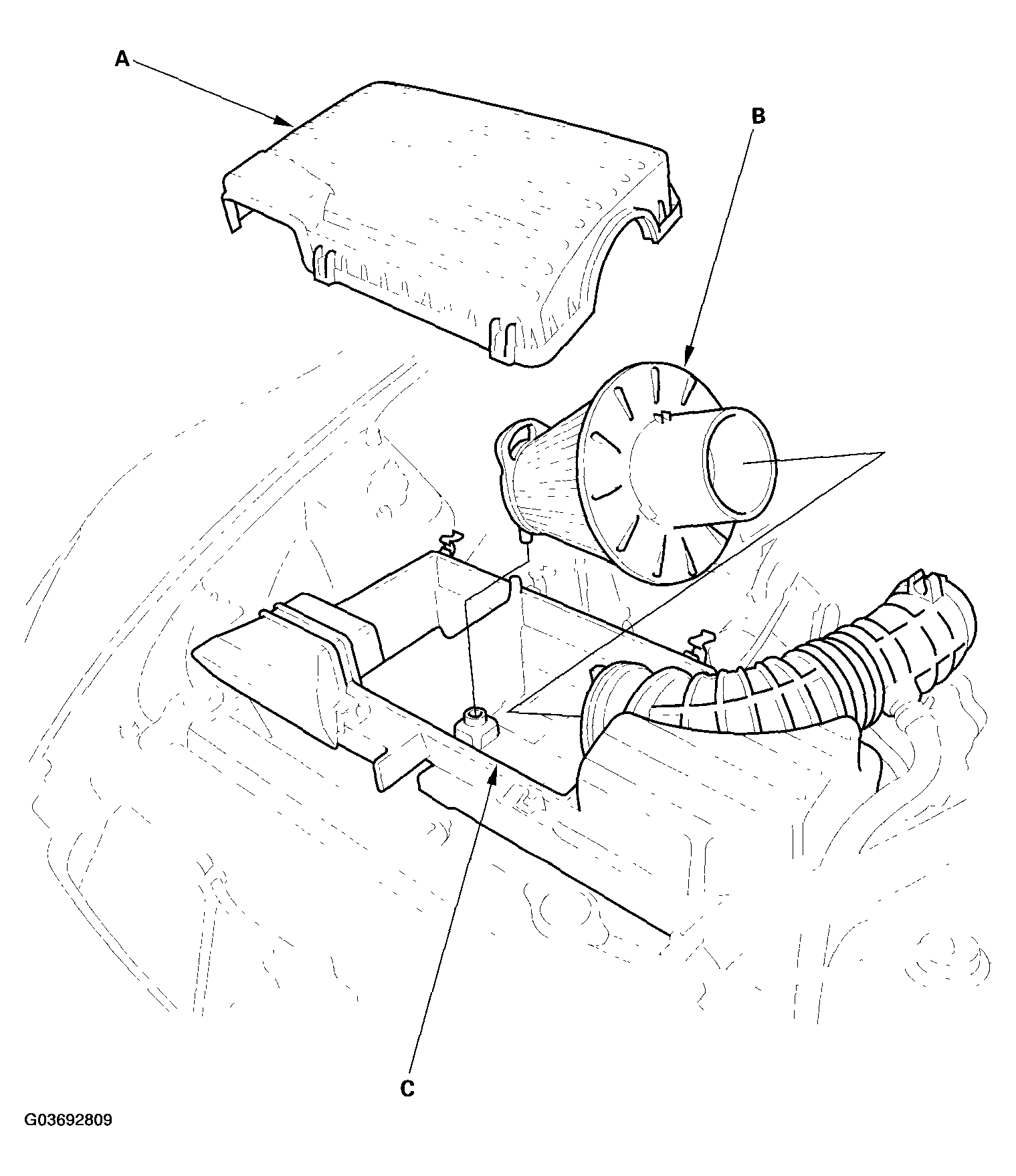

    Fig 1: Removing Air Cleaner Housing Cover (A)
    G03692809Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the air cleaner element (B) from the air cleaner housing (C).
  3. Check the air cleaner element for damage or clogging. If there is damage or clogging, replace the air cleaner element.
    NOTE: Do not clean the air cleaner element by blowing if off with compressed air.
  4. Clean and remove any debris from inside the air cleaner housing.
  5. Install the parts in the reverse order of removal.
